Bosch GDX 180-LI
Bosch GDX 180-LI impact wrench: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

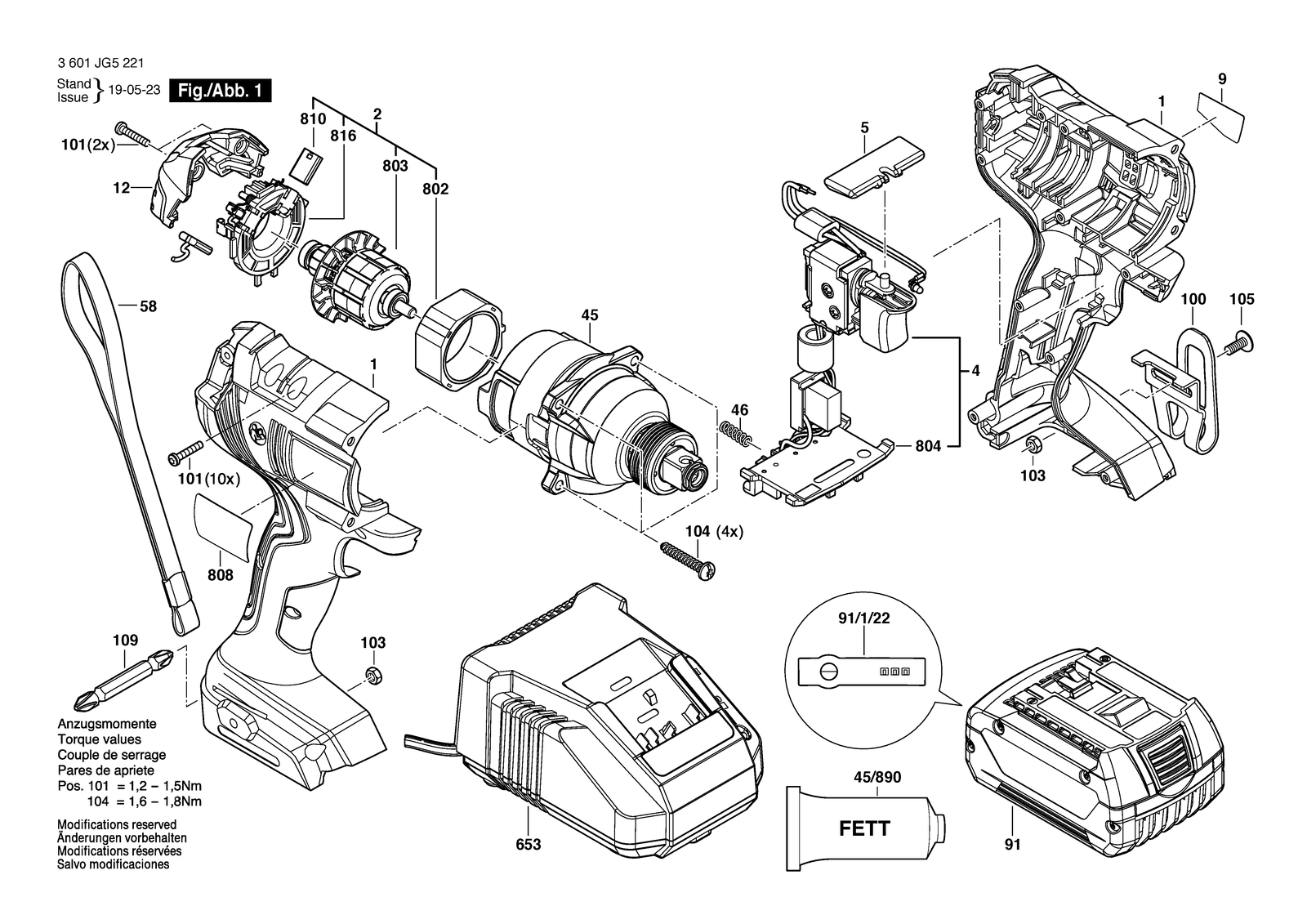

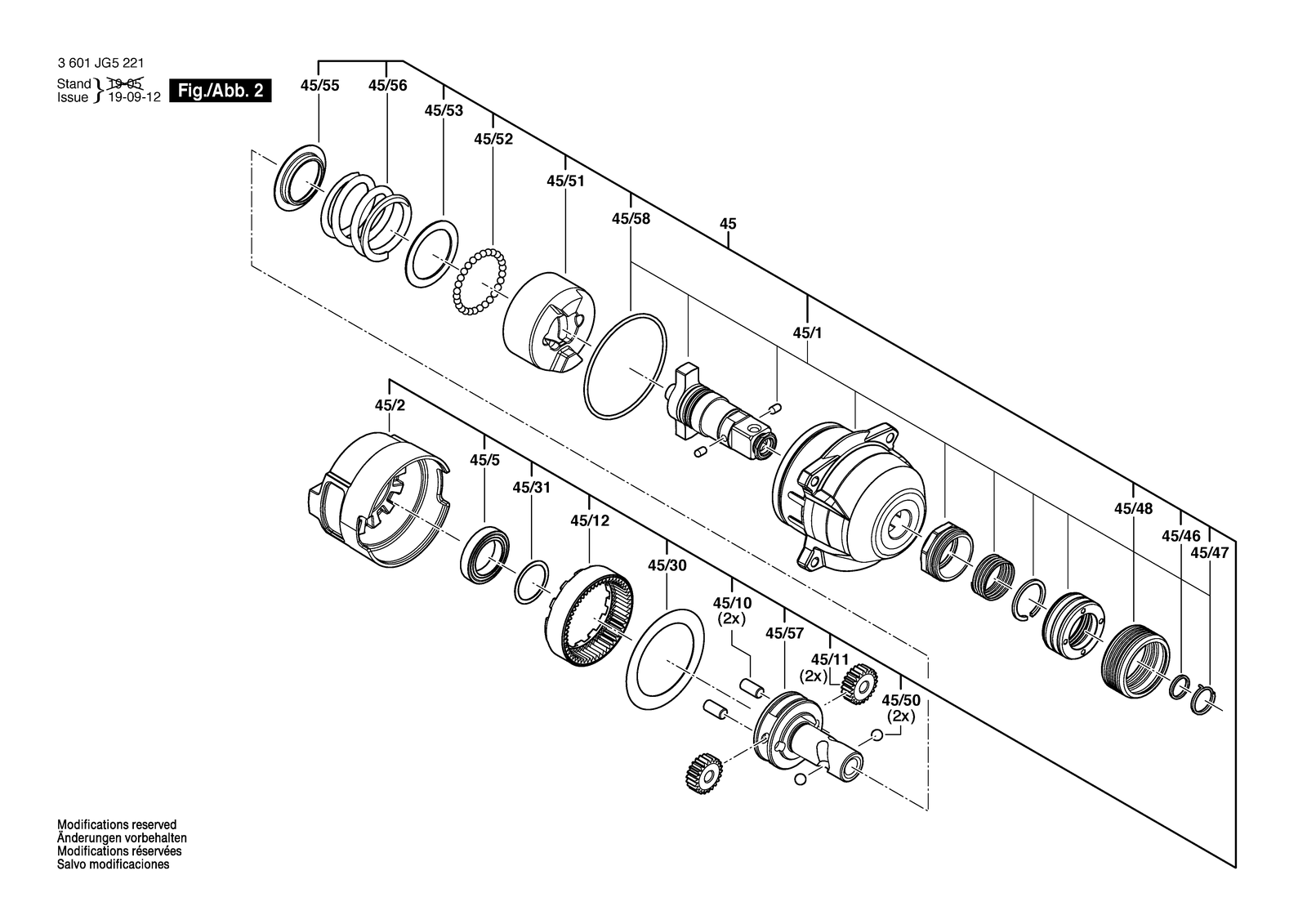

All parts of Bosch GDX 180-LI: 59 positions on 2 sheets
Bosch GDX 180-LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A01E10 | Housing |
| 100 | 2609111584 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 104 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 105 | 2609110834 | Screw |
| 109 | 2609110342 | Screwdriver Blade |
| 109 | 2609110343 | Screwdriver Blade |
| 12 | 2609101783 | Cover |
| 2 | 160702267M | DC motor |
| 4 | 2607202399 | Electronic Module |
| 45 | 1600A00N60 | Gear Box |
| 45 | 1600A00N61 | Gear Box |
| 45/1 | 1600A01SH5 | Housing Assembly |
| 45/1 | 1600A01SH6 | Housing Assembly |
| 45/10 | 2609110808 | Pin |
| 45/11 | 2609111289 | Planet Gear |
| 45/12 | 2609112141 | Ring Gear |
| 45/2 | 2609101670 | Housing |
| 45/30 | 2609110811 | Washer |
| 45/31 | 2609110812 | Washer |
| 45/46 | 2609170157 | Rubber Ring |
| 45/47 | 2609111262 | Metal Ring |
| 45/48 | 2609170185 | Sleeve |
| 45/5 | 2609110807 | Ball Bearing |
| 45/50 | 2609110818 | Ball |
| 45/51 | 2609112142 | Striker |
| 45/52 | 2609110331 | Ball |
| 45/53 | 2609110820 | Washer |
| 45/55 | 2609110821 | Washer |
| 45/56 | 2609112143 | Compression Spring |
| 45/57 | 2609112144 | Jack Shaft |
| 45/58 | 160021007H | O-Ring |
| 45/890 | 1600A002NE | Grease Tube 45 Ml |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 58 | 2609100301 | Strap |
| 653 | 2607225741 | Battery Charger CN 230/10,8-18V, 30 Min |
| 653 | 2607225783 | Battery Charger AR 230/10,8-18V, 30 Min |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607226091 | Fast Charger AL1814CV Brasil 127-220V 10,8-18V |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 653 | 2607226289 | Fast Charger Lam GAL18V-20 |
| 802 | 1600A003V5 | Stator |
| 803 | 1600A015UW | Rotor |
| 804 | 1609280478 | Contact retainer |
| 808 | 160111A72D | Nameplate |
| 808 | 160111A72F | Nameplate |
| 808 | 160111A72H | Nameplate |
| 808 | 160111A72J | Nameplate |
| 810 | 160701418R | Carbon-Brush Set |
| 816 | 1600A011KB | Brush Holder |
| 9 | 160111C297 | Manufacturer's nameplate |
| 91 | 1607A350AN | Battery Pack GBA 18V 4.0AH Procore Scm |
| 91 | 1607A350JR | Battery Pack GBA 18V 1.5AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91/1/22 | 2601115537 | Sticker |
