Bosch GDX 18 V-EC
Bosch GDX 18 V-EC impact wrench: exploded parts diagram, 2 sheets, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

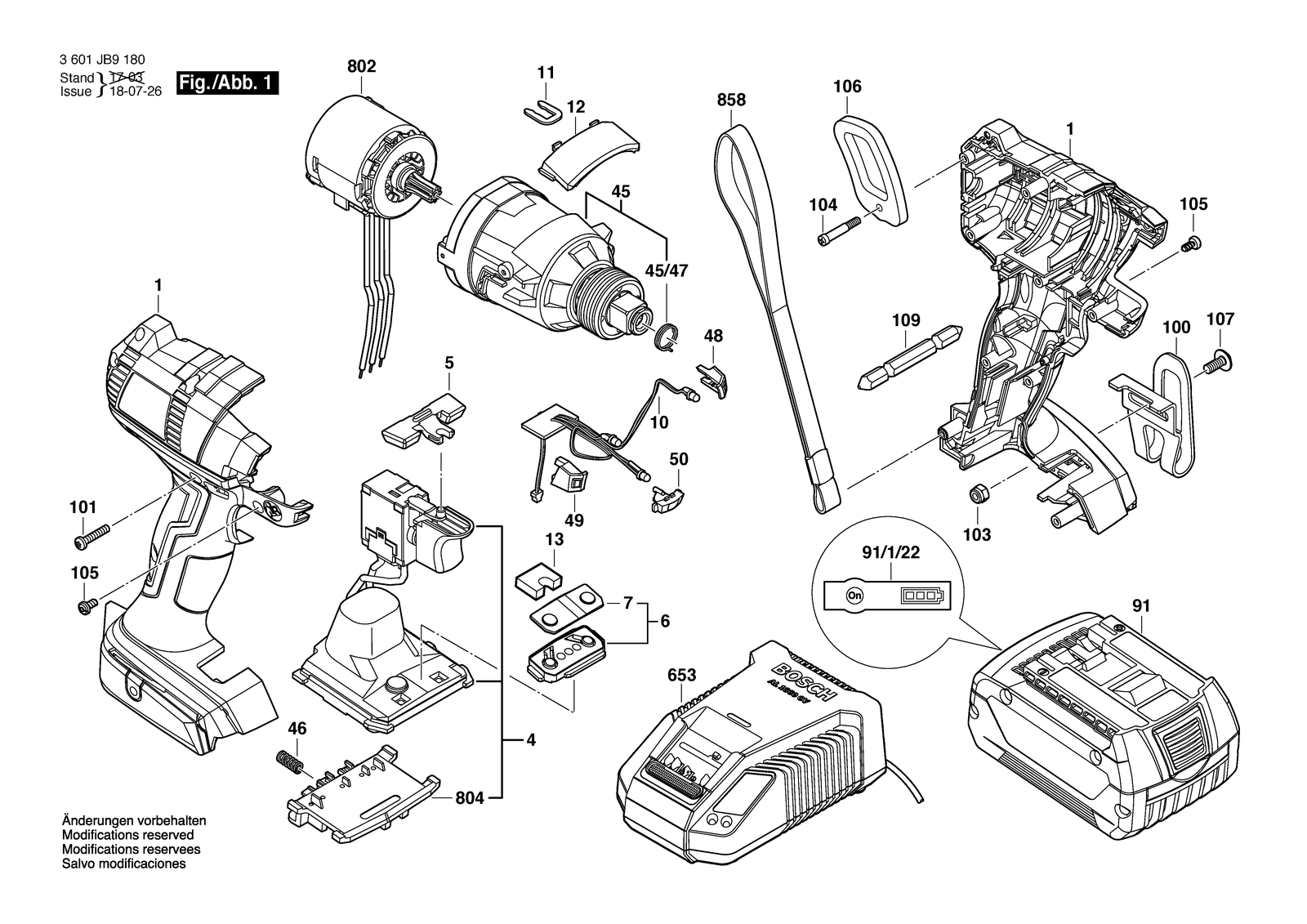

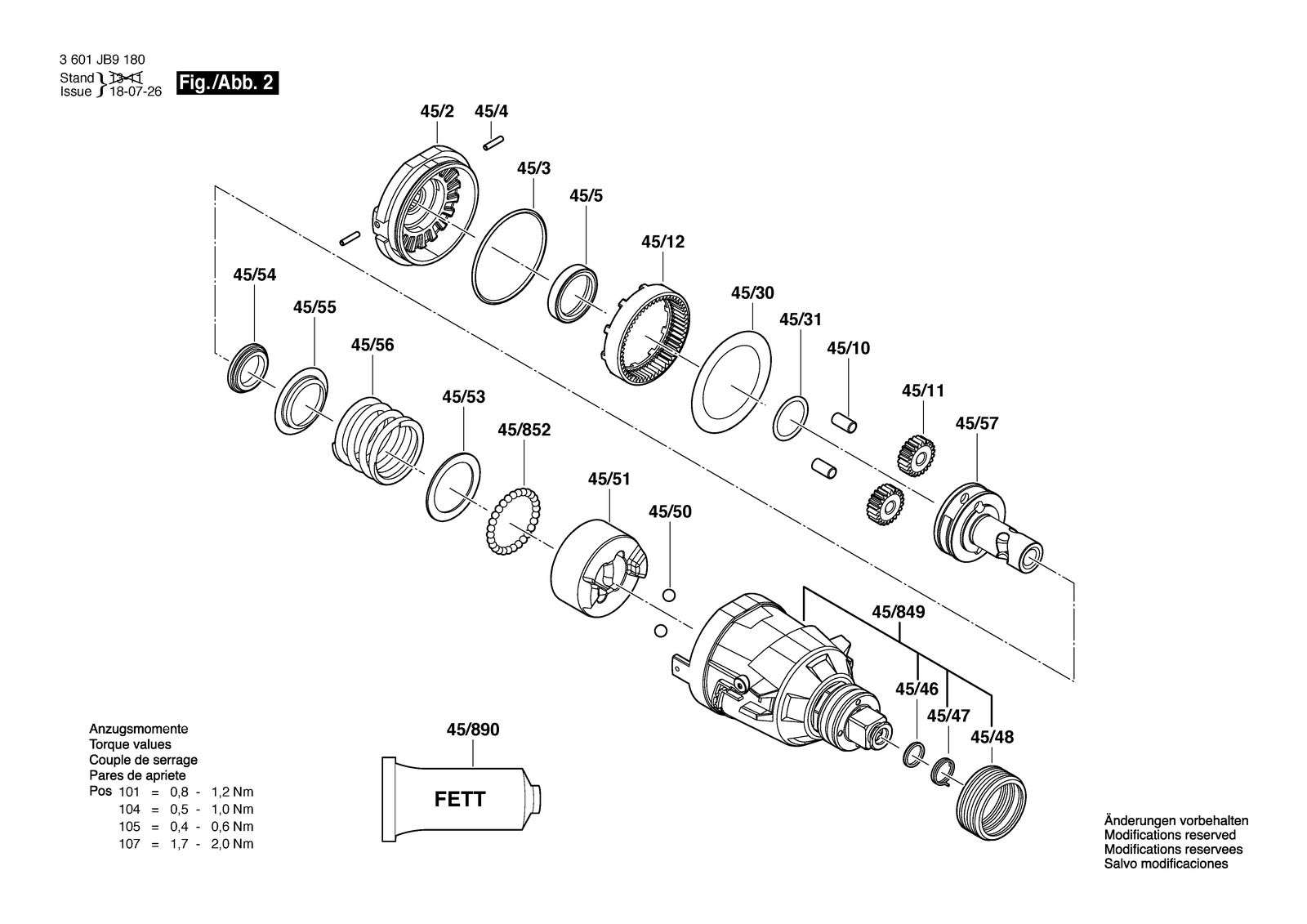

All parts of Bosch GDX 18 V-EC: 63 positions on 2 sheets
Bosch GDX 18 V-EC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101066 | Housing |
| 10 | 2609199465 | Electronics Module |
| 100 | 2609111584 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 104 | 2609111446 | Pan head screw |
| 105 | 2609111447 | Pan head screw |
| 106 | 2609170196 | Protector |
| 107 | 2609110834 | Screw |
| 109 | 2609110342 | Screwdriver Blade |
| 109 | 2609110343 | Screwdriver Blade |
| 11 | 2609110838 | Clip |
| 12 | 2609111415 | Cover |
| 13 | 2609170193 | Protector |
| 4 | 1607233470 | Electronics Module |
| 45 | 1600A00J8N | Gear Box |
| 45 | 2609199371 | Gear Box |
| 45 | 2609199534 | Gear Box |
| 45/10 | 2609110808 | Pin |
| 45/11 | 2609111289 | Planet Gear |
| 45/12 | 2609110810 | Ring Gear |
| 45/2 | 2609100984 | Flange Housing |
| 45/3 | 2609170156 | O-Ring |
| 45/30 | 2609110811 | Washer |
| 45/31 | 2609110812 | Washer |
| 45/4 | 2609111258 | Pin |
| 45/46 | 2609170157 | Rubber Ring |
| 45/47 | 2609110336 | Clip |
| 45/47 | 2609111262 | Metal Ring |
| 45/48 | 2609170185 | Sleeve |
| 45/5 | 2609110807 | Ball Bearing |
| 45/50 | 2609110818 | Ball |
| 45/51 | 2609111577 | Striker |
| 45/53 | 2609110820 | Washer |
| 45/54 | 2609170096 | Rubber Ring |
| 45/55 | 2609110821 | Washer |
| 45/56 | 2609111594 | Spring |
| 45/57 | 2609110823 | Jack Shaft |
| 45/849 | 2609199752 | Sub-assembly |
| 45/849 | 2609199753 | Sub-assembly |
| 45/852 | 2609111905 | Ball |
| 45/890 | 1600A002NE | Grease Tube 45 Ml |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609101069 | Lens |
| 49 | 2609101070 | Lens |
| 5 | 2609101067 | Adjusting lever |
| 50 | 2609101083 | Lens |
| 6 | 2609101068 | Button |
| 653 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 653 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 653 | 2607225937 | Charger Cn GAL 1880 CV 220V/14,4-18V |
| 653 | 2607226101 | Fast Charger EU GAL 1230 CV 230/12V |
| 7 | 2609133596 | Label |
| 802 | 2609199548 | DC motor 480W |
| 804 | 1609280478 | Contact retainer |
| 858 | 2609100301 | Strap |
| 91 | 1607A350AM | Battery Pack Kor GBA 18V 4.0AH Procore Scm |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 2607336851 | Battery Pack Bbs Mr-L, 18V, 2,0 Ah |
| 91 | 2607336943 | Battery Pack Bbs Mr-Xl, 18V, 4,0 Ah Jp |
| 91 | 2607337005 | Battery Pack Bbs MR 18V,4,0AH |
| 91 | 2607337267 | Battery Pack GBA 18V 6,0AH M-c |
| 91/1/22 | 2601115537 | Sticker |
