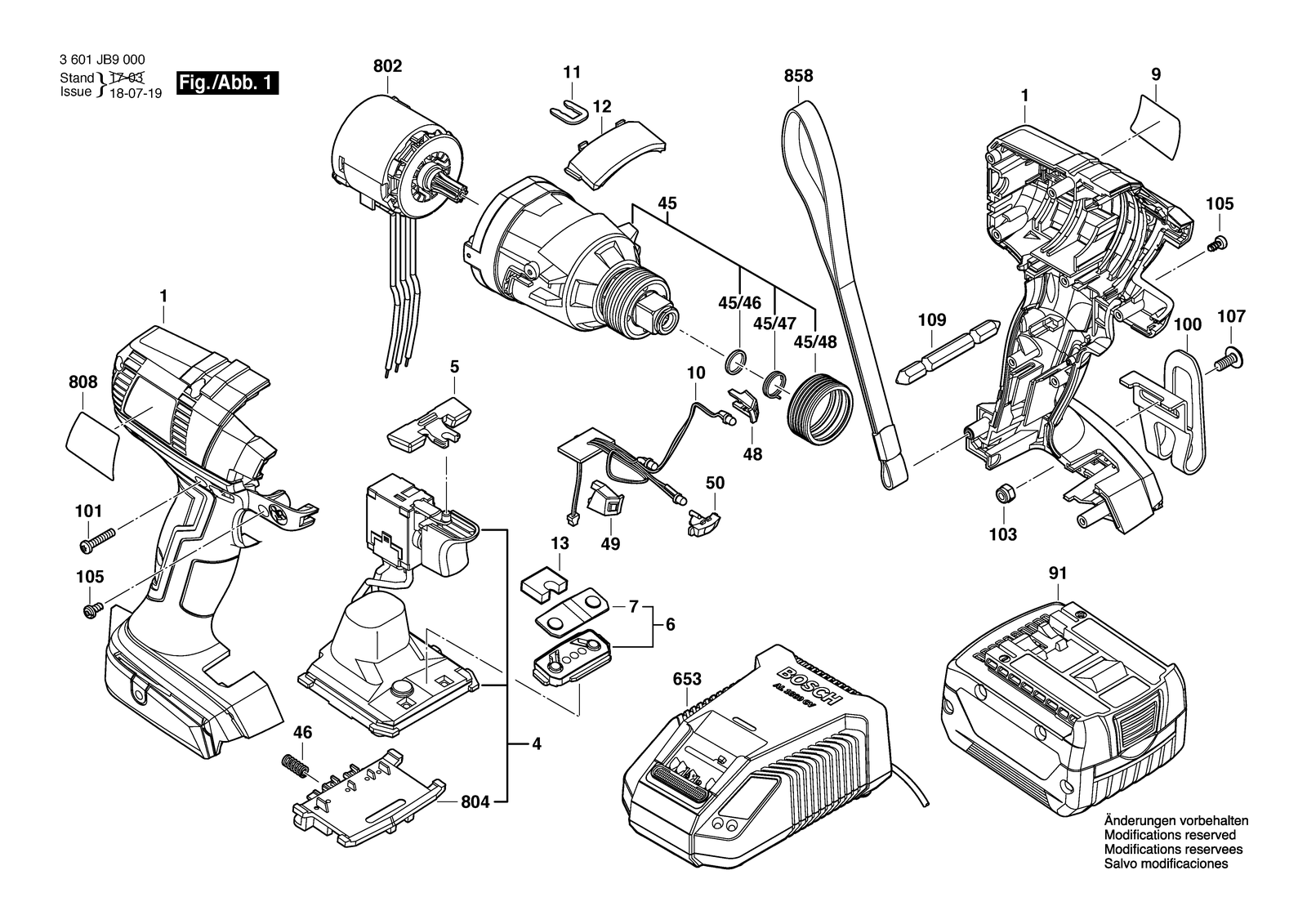

Bosch GDX 14,4V-EC impact wrench: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDX 14,4V-EC: 31 positions on 1 sheet
Bosch GDX 14,4V-EC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101143 | Housing |
| 10 | 2609199465 | Electronics Module |
| 100 | 2609110956 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609111447 | Pan head screw |
| 107 | 2609110834 | Screw |
| 109 | 2609110343 | Screwdriver Blade |
| 11 | 2609110838 | Clip |
| 12 | 2609111415 | Cover |
| 13 | 2609170193 | Protector |
| 4 | 1607233469 | Electronics Module |
| 45 | 2609199372 | Gear Box |
| 45/46 | 2609170157 | Rubber Ring |
| 45/47 | 2609111262 | Metal Ring |
| 45/48 | 2609170185 | Sleeve |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609101069 | Lens |
| 49 | 2609101070 | Lens |
| 5 | 2609101067 | Adjusting lever |
| 50 | 2609101083 | Lens |
| 6 | 2609101068 | Button |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 7 | 2609133596 | Label |
| 802 | 2609199547 | DC motor 14,4 V |
| 804 | 1609280478 | Contact retainer |
| 808 | 1600A00YV6 | Nameplate |
| 858 | 2609100301 | Strap |
| 9 | 2609133779 | Manufacturer's nameplate GDX 14,4 V-Ec |
| 91 | 2607336813 | Battery Pack Bbs-Mr Xl-Pack 14,4V, Li, 4,0 Ah |
