Bosch GDS 30
Bosch GDS 30 impact wrench: exploded parts diagram, 2 sheets, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

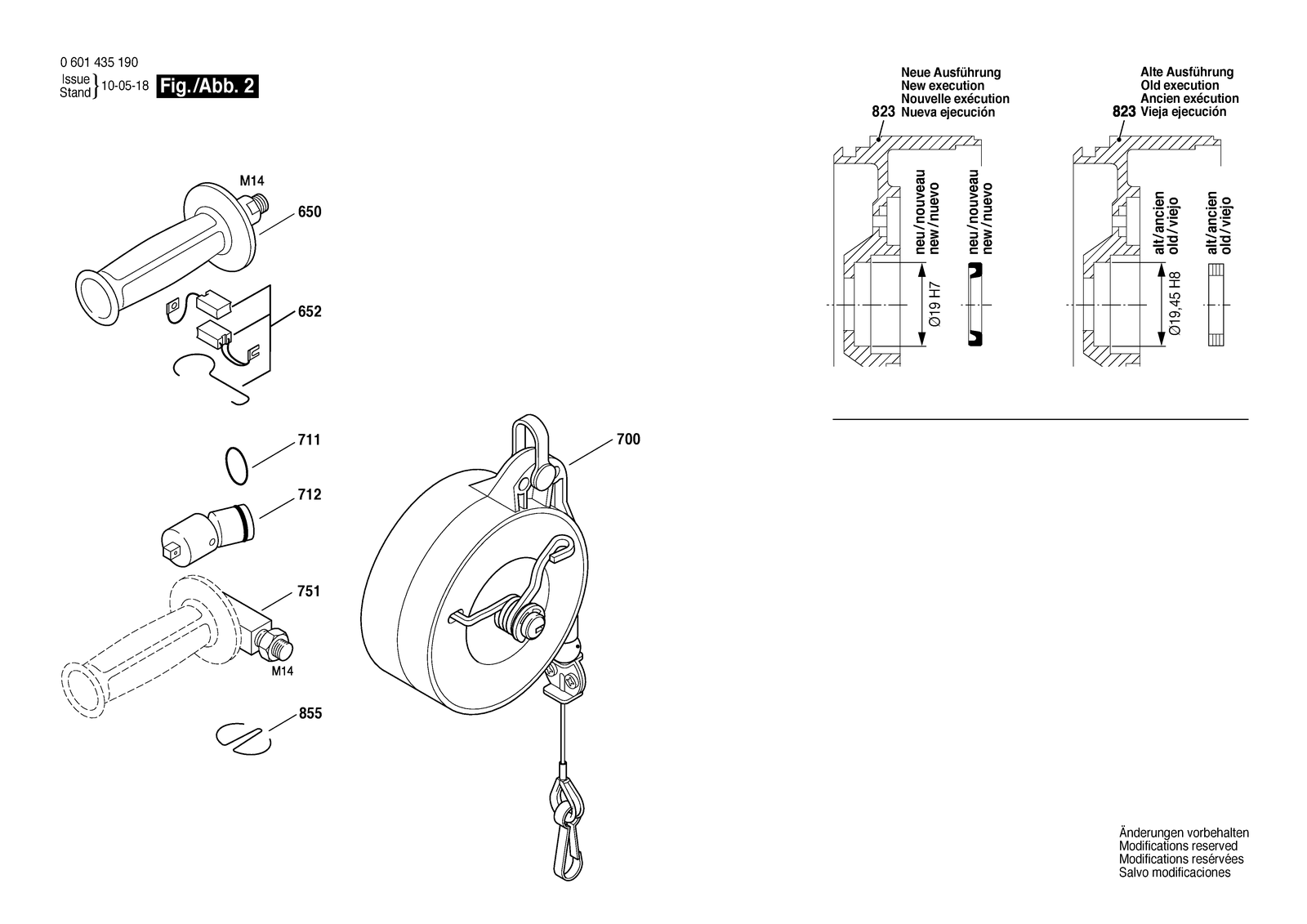

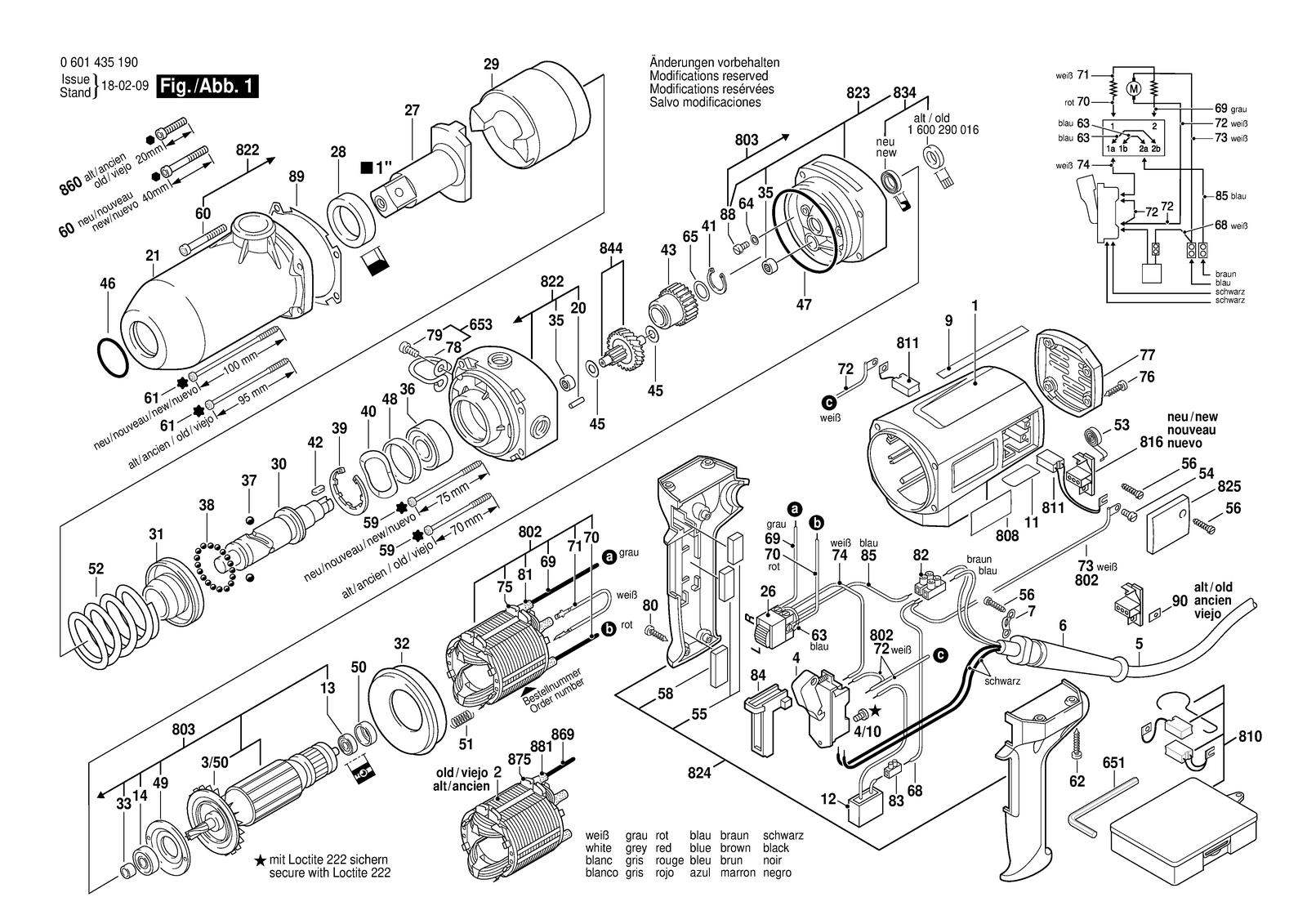

All parts of Bosch GDS 30: 95 positions on 2 sheets
Bosch GDS 30 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108091 | Motor Housing Blue |
| 11 | 3601110175 | Sticker |
| 12 | 3607328009 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 20 | 2917500119 | Straight Pin DIN 7-5H8X14 |
| 21 | 3605806222 | Spindle Bearing |
| 26 | 3607200025 | Switch |
| 27 | 1606455054 | Coupling Half |
| 28 | 3600202019 | Spacer Ring |
| 29 | 1608710028 | Striker |
| 3/50 | 1606610122 | Fan |
| 30 | 1603124106 | Drive Shaft |
| 31 | 3600220019 | Backup ring |
| 32 | 1600502019 | Air-Deflector Ring |
| 33 | 3600300042 | Intermediate Ring |
| 35 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 36 | 1900905281 | Groove ball bearing 17X40X12 |
| 37 | 1903230015 | Ball DIN 5401-9 MM Iii-St |
| 38 | 1903230009 | Ball DIN 5401-5 G28 |
| 39 | 1600119004 | Spring retaining ring |
| 4 | 3607200067 | Switch |
| 4/10 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 40 | 1600150009 | Spring Washer Ø32,3XØ43,5X0,6 MM |
| 41 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 42 | 1902300083 | Parallel Key DIN 6885-A6X4X14 |
| 43 | 3606301006 | Cylindrical Gear Z=25 |
| 45 | 1600100617 | Shim Thick 0,5 MM |
| 46 | 3600210131 | O-Ring 35,0X3,0 MM |
| 47 | 1600210005 | O-Ring 66,0X3,0 MM |
| 48 | 1600206022 | Rubber Ring |
| 49 | 3605500043 | Bearing cover |
| 5 | 3604461004 | Power supply cord |
| 50 | 1600502011 | Intermediate Ring |
| 51 | 1604613006 | Compression Spring |
| 52 | 3604610059 | Compression Spring |
| 53 | 1604652008 | Spiral Spring |
| 54 | 3603435045 | Socket head cap screw |
| 55 | 3602317025 | Insulating Strip |
| 56 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 58 | 1602381006 | Insulating Plate 20X20X50 MM |
| 59 | 3603435040 | Lens Head Screw |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 60 | 2910151170 | Hex Socket Head Cap Screw DIN 912-BM 5X40-10.9 |
| 61 | 3603435041 | Lens Head Screw |
| 62 | 3603435027 | Tapping Screw 5X30 |
| 63 | 3604412002 | Connecting Cable Blue L=60 MM |
| 64 | 3600120013 | Plain Washer DIN 7603-A4X8 |
| 65 | 1600101600 | Shim washer Thick 0,4 MM |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 652 | 3607031223 | Carbon-Brush Set |
| 653 | 3607031415 | Suspension Loop |
| 68 | 3604460038 | Connecting Cable White L=180 MM |
| 69 | 3604460135 | Connecting Cable L=330 MM |
| 7 | 1601303003 | Fastening Clamp |
| 70 | 3604460035 | Connecting Cable Red L=150 MM |
| 700 | 0607950926 | Spring Pull Carrying Load 8-10 KG |
| 71 | 3604460036 | Connecting Cable White L=140 MM |
| 711 | 1600210025 | O-Ring |
| 712 | 1608500009 | ball Joint 1", 100 MM |
| 72 | 3604460037 | Connecting Cable White L=285 MM |
| 73 | 3604460034 | Connecting Cable White L=330 MM |
| 74 | 1614437016 | Connecting Cable White L=120 MM |
| 75 | 3601025004 | Wire Guide |
| 751 | 1603527017 | Threaded Fitting M14, L=70 MM |
| 76 | 2914201527 | Torx Oval-Head Screw |
| 77 | 3605500062 | Sealing cap Black |
| 78 | 3601310013 | Suspension Loop |
| 79 | 2910131193 | Hex Socket Head Cap Screw |
| 80 | 2914201508 | Torx Oval-Head Screw |
| 802 | 3604220141 | Field 240V |
| 803 | 3604010075 | Armature 24V |
| 808 | 160111A3H3 | Nameplate |
| 81 | 3600707022 | Shrinkable Tube |
| 810 | 3607031223 | Carbon-Brush Set |
| 811 | 3607031606 | Carbon-Brush Set |
| 816 | 3604336012 | Brush Holder |
| 82 | 1601091010 | Socket-Terminal Strip 2X2,5 MM |
| 822 | 3607031648 | Gear Housing |
| 823 | 3605806168 | Intermediate Flange |
| 824 | 3605132065 | Handle Blue |
| 825 | 3605500063 | Sealing cap Blue |
| 83 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 834 | 3600290070 | Rotary shaft lip seal |
| 84 | 3601023006 | Adapter |
| 844 | 1607000C6N | Gear Shaft |
| 85 | 3604412066 | Connecting Cable |
| 869 | 3604460009 | Connecting Cable White L=450 MM |
| 875 | 3601025003 | Wire Guide |
| 88 | 3603435045 | Socket head cap screw |
| 881 | 3600707022 | Shrinkable Tube |
| 89 | 3601023010 | Seal |
| 9 | 3601110394 | Sticker |
| 90 | 1601030022 | Tab Washer |
