Bosch GDS 18V-EC 250

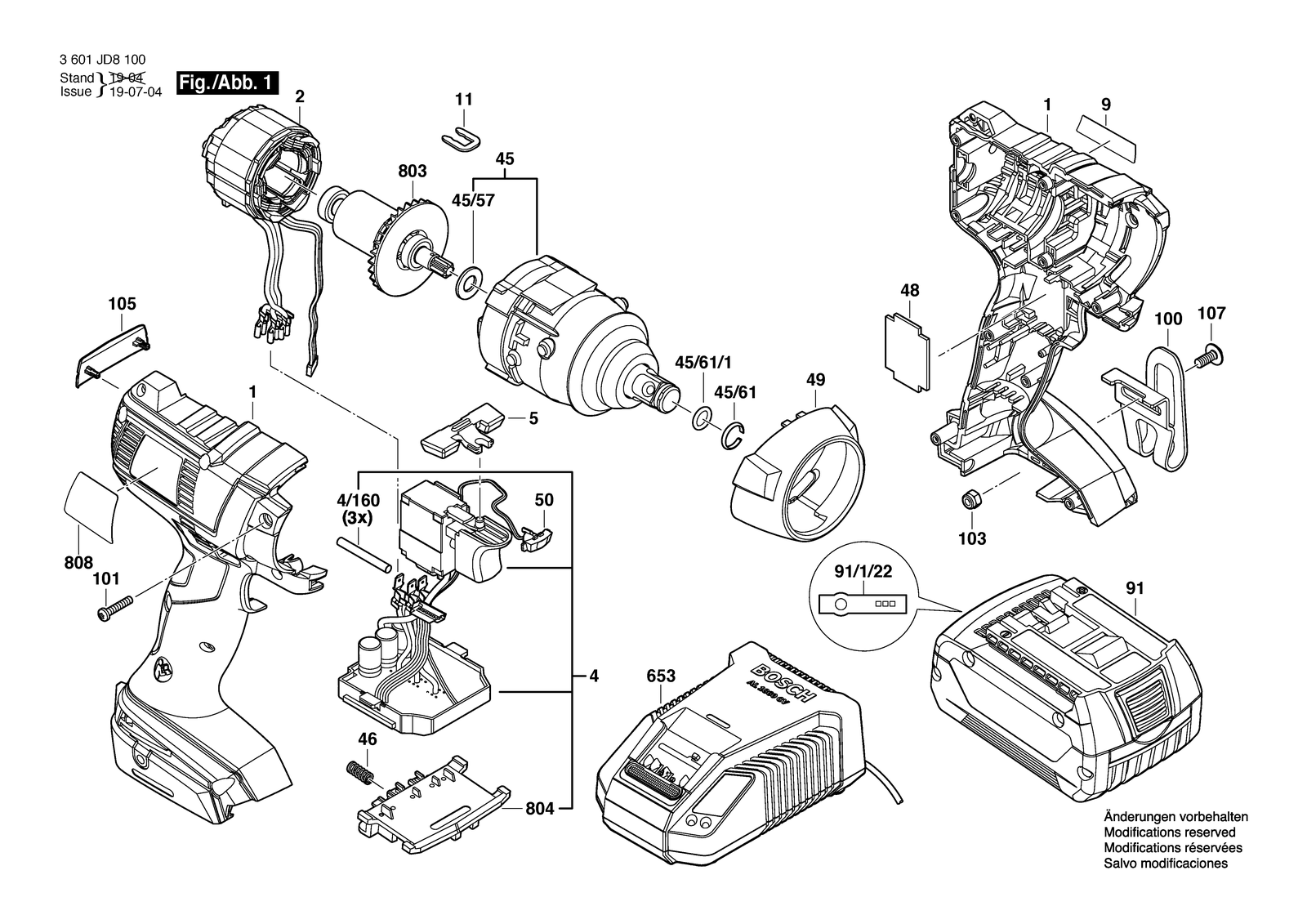

Bosch GDS 18V-EC 250 impact wrench: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 18V-EC 250: 30 positions on 1 sheet
Bosch GDS 18V-EC 250 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101346 | Housing |
| 100 | 2609111584 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609101393 | Color clip |
| 107 | 2609110834 | Screw |
| 11 | 2609110838 | Clip |
| 2 | 1619P08594 | Stator |
| 4 | 1600A0019T | Electronics Module |
| 4/160 | 1619P15186 | Shrinkable Tube |
| 45 | 2609199869 | Gear Box |
| 45/57 | 2609170204 | Seal Ring |
| 45/61 | 2609112053 | Clip Fastener |
| 45/61/1 | 2609170273 | Rubber Ring |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609136324 | Protection |
| 49 | 2609170222 | Protective Ring |
| 5 | 2609101067 | Adjusting lever |
| 50 | 2609101083 | Lens |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225329 | Fast Charger LAM 120/10,8-18V, 30 Min |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 803 | 2609199757 | Rotor 18V |
| 804 | 1609280478 | Contact retainer |
| 808 | 1600A00Z07 | Nameplate |
| 9 | 2609135322 | Manufacturer's nameplate Gds V-Ec 250 |
| 91 | 1607A350B2 | Battery Pack 18V 3.0AH LI Scm |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 91/1/22 | 2601115537 | Sticker |
