Bosch GDS 18V-740

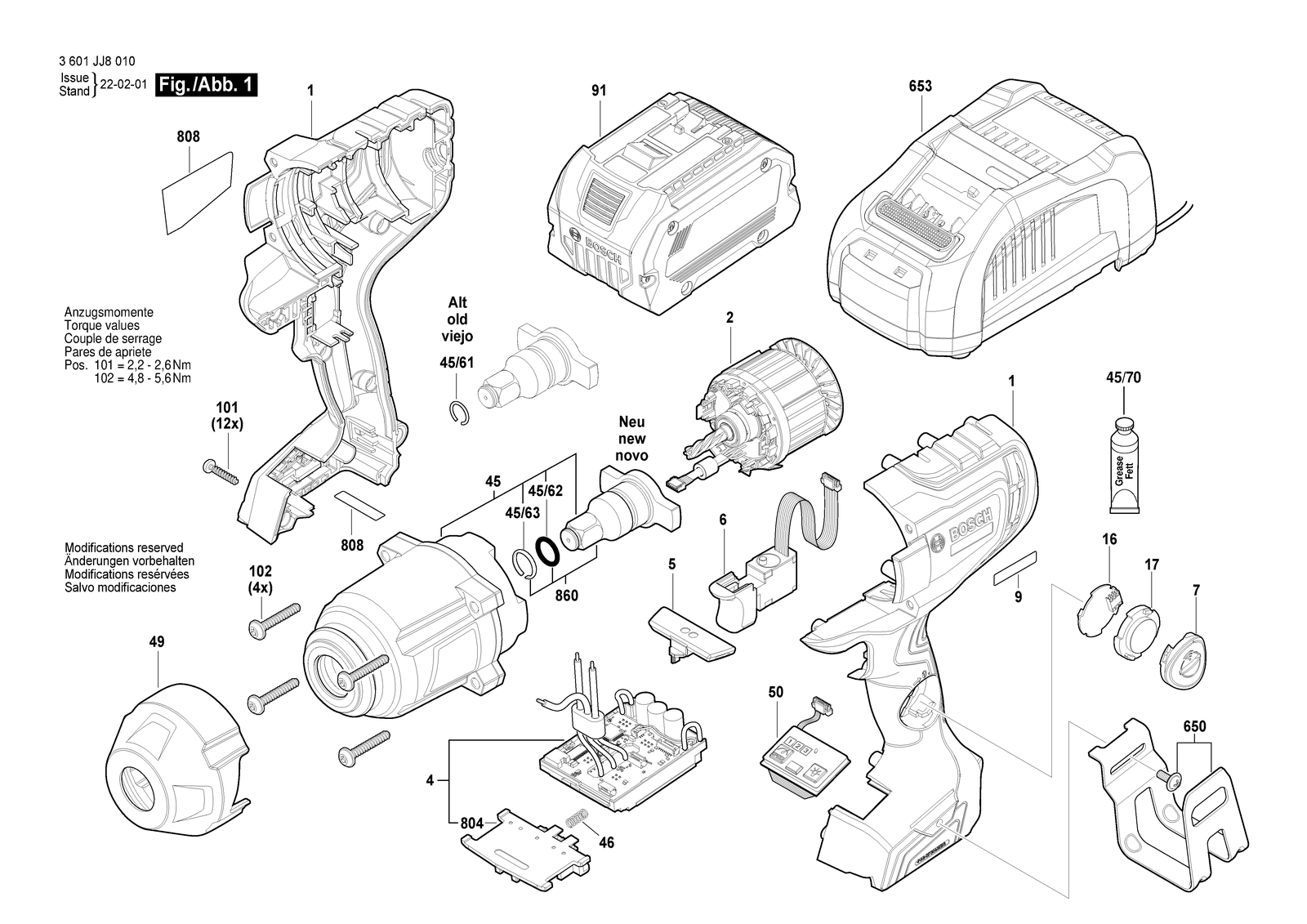

Bosch GDS 18V-740 impact wrench: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 18V-740: 25 positions on 1 sheet
Bosch GDS 18V-740 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065YH | Housing |
| 101 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 102 | 1603435098 | Torx Oval-Head Screw M5X40 |
| 16 | 1600A016CZ | Electronics Module |
| 17 | 1600A02KY7 | Cover Panel |
| 2 | 160702269Z | DC motor |
| 4 | 16072335LG | Electronic Module |
| 45 | 1600A01RJ3 | Gear Box |
| 45/61 | 160460103M | Retaining ring |
| 45/62 | 160021009U | O-Ring |
| 45/63 | 160460103V | Retaining ring |
| 45/70 | 1600A002NE | Grease Tube 45 Ml |
| 46 | 1609280477 | Compression Spring |
| 49 | 1600A01R1M | Cap |
| 5 | 1600A01P3K | Changeover Lever |
| 50 | 16072335LT | Electronic Module |
| 6 | 2607202501 | Switch |
| 650 | 1600A023G7 | Hook |
| 653 | 2607226257 | Fast Charger Usa GAL 18V-40 120V/ 4A/ 10.8-18V |
| 7 | 1600A032TB | Cover unit |
| 804 | 1609280820 | Contact retainer 18V |
| 808 | 1600A022UD | Type Label |
| 860 | 1600A02801 | Coupling Half |
| 9 | 160111C3X2 | Manufacturer's nameplate |
| 91 | 1607A350CH | Battery Pack GBA18V80 8.0AH Procore Scm |
