Bosch GDS 18V-300

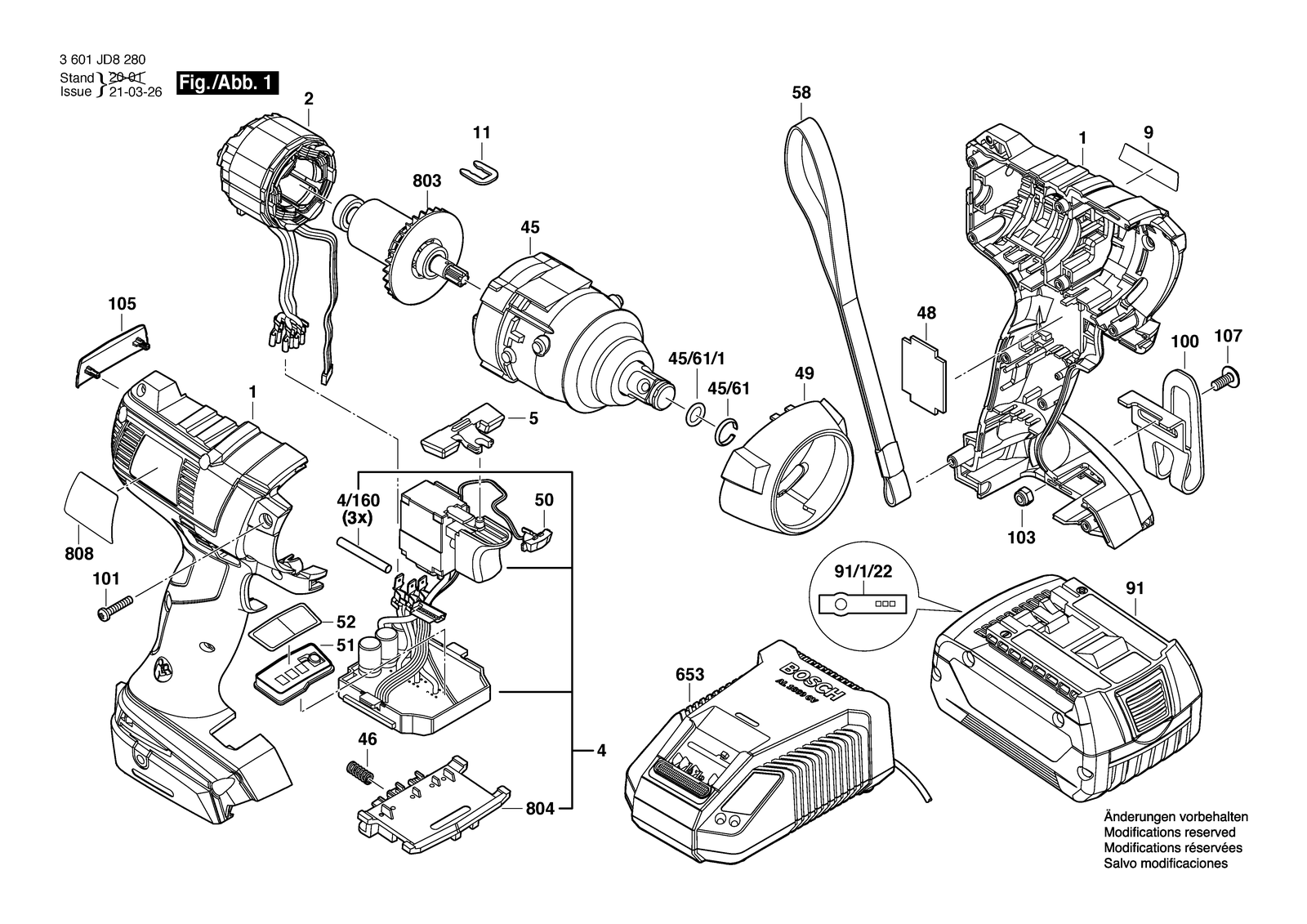

Bosch GDS 18V-300 impact wrench: exploded parts diagram, 2 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 18V-300: 61 positions on 2 sheets
Bosch GDS 18V-300 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101672 | Housing |
| 100 | 2609111584 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609101393 | Color clip |
| 107 | 2609110834 | Screw |
| 11 | 2609110838 | Clip |
| 2 | 1619P08594 | Stator |
| 4 | 1600A00F9U | Electronics Module |
| 4/160 | 1619P15186 | Shrinkable Tube |
| 45 | 2609199585 | Gear Box |
| 45/20 | 2609111555 | Striker |
| 45/21 | 2609110332 | Ball |
| 45/23 | 2609110320 | Washer |
| 45/24 | 2609111711 | Compression Spring |
| 45/25 | 2609111582 | Washer |
| 45/26 | 2609170206 | Damper |
| 45/27 | 2609111556 | Jack Shaft |
| 45/28 | 2609111873 | Washer |
| 45/30 | 2609111851 | Washer |
| 45/40 | 2609111560 | Planet Gear |
| 45/41 | 2609112105 | Dowel pin |
| 45/42 | 2609111519 | Ring Gear |
| 45/54 | 2609170156 | O-Ring |
| 45/56 | 2609111841 | Washer |
| 45/57 | 2609170204 | Seal Ring |
| 45/60 | 2609111518 | Coupling Half |
| 45/61 | 2609112053 | Clip Fastener |
| 45/61/1 | 2609170273 | Rubber Ring |
| 45/822 | 2609112136 | Steel ball |
| 45/851 | 2609199972 | Gear Housing |
| 45/852 | 2609199973 | Housing |
| 45/890 | 1600A002NE | Grease Tube 45 Ml |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609136324 | Protection |
| 49 | 2609170222 | Protective Ring |
| 5 | 2609101067 | Adjusting lever |
| 50 | 2609101083 | Lens |
| 51 | 2609101687 | Button |
| 52 | 2609136589 | Label |
| 58 | 2609100301 | Strap |
| 653 | 2607225425 | Fast Charger GB 230/10,8-18V, 1H |
| 653 | 2607225431 | Fast Charger RC 115/10,8-18V, 1H |
| 653 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 653 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 653 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 653 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226297 | Fast Charger Cn GAL 18V-20 220V 12V-18V 2A |
| 803 | 2609199757 | Rotor 18V |
| 804 | 1609280478 | Contact retainer |
| 808 | 160111A75S | Nameplate |
| 808 | 160111A75T | Nameplate |
| 808 | 160111A90J | Nameplate |
| 9 | 160111C34C | Manufacturer's nameplate GDS18V-EC 300 Abr |
| 91 | 1607A350AN | Battery Pack GBA 18V 4.0AH Procore Scm |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 2607337081 | Battery Pack Bbs Mr-Xl, 18V, 5AH |
| 91 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 91 | 2607337265 | Battery Pack GBA 18V 6,0AH M-c (j) |
| 91/1/22 | 2601115537 | Sticker |
