Bosch GDS 18V-1180 C impact wrench: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 18V-1180 C: 25 positions on 1 sheet

Bosch GDS 18V-1180 C parts list (1 sheet)

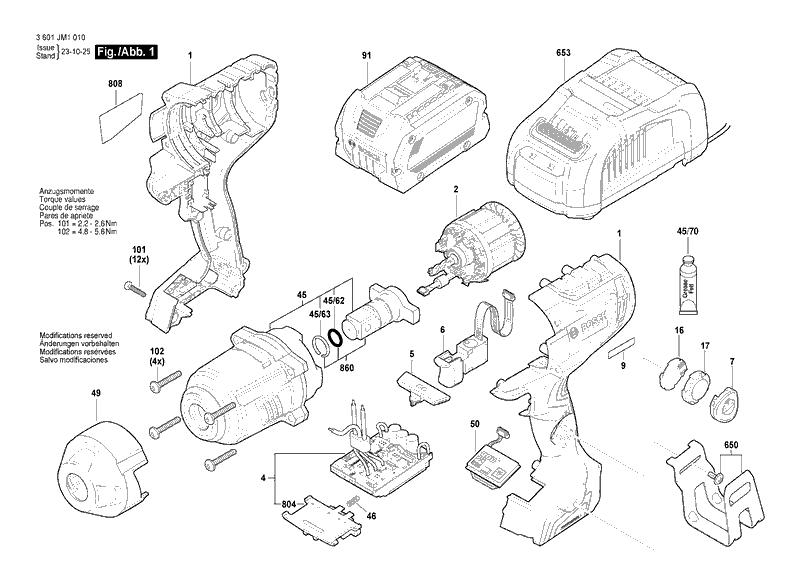

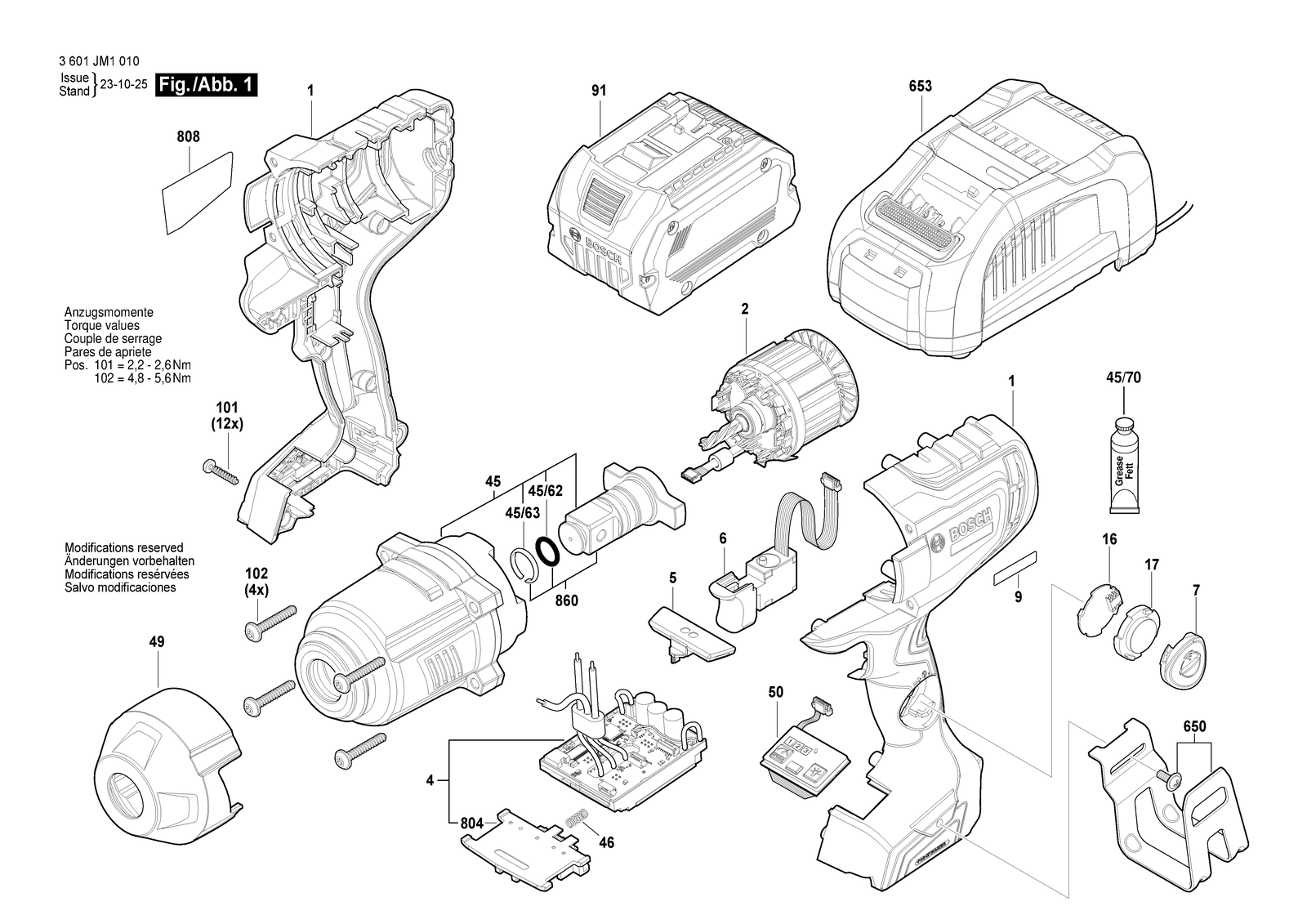

Bosch GDS 18V-1180 C parts diagram, sheet 1
No.Part numberPart name
116058065YHHousing
1012603490023Torx Oval-Head Screw 4X20
1021603435098Torx Oval-Head Screw M5X40
161600A016CZElectronics Module
171600A016MLCover Panel
171600A02KY7Cover Panel
2160702269ZDC motor
416072335LGElectronic Module
451600A02N3JGear Box
45/62160021009MO-Ring
45/631604601040Retaining ring
45/701600A002NEGrease Tube 45 Ml
461609280477Compression Spring
491600A02H7VRubber Cap
51600A01P3KChangeover Lever
5016072335LTElectronic Module
62607202501Switch
6501600A023G7Hook
6532607226720Charger
71600A032TBCover unit
8041609280820Contact retainer 18V
8081600A031S9Type Label
8601600A02VL4Coupling Half
9160111AA6NManufacturer's nameplate
911607A3518BBattery Pack
