Bosch GDS 18 E
Bosch GDS 18 E impact wrench: exploded parts diagram, 1 sheet, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

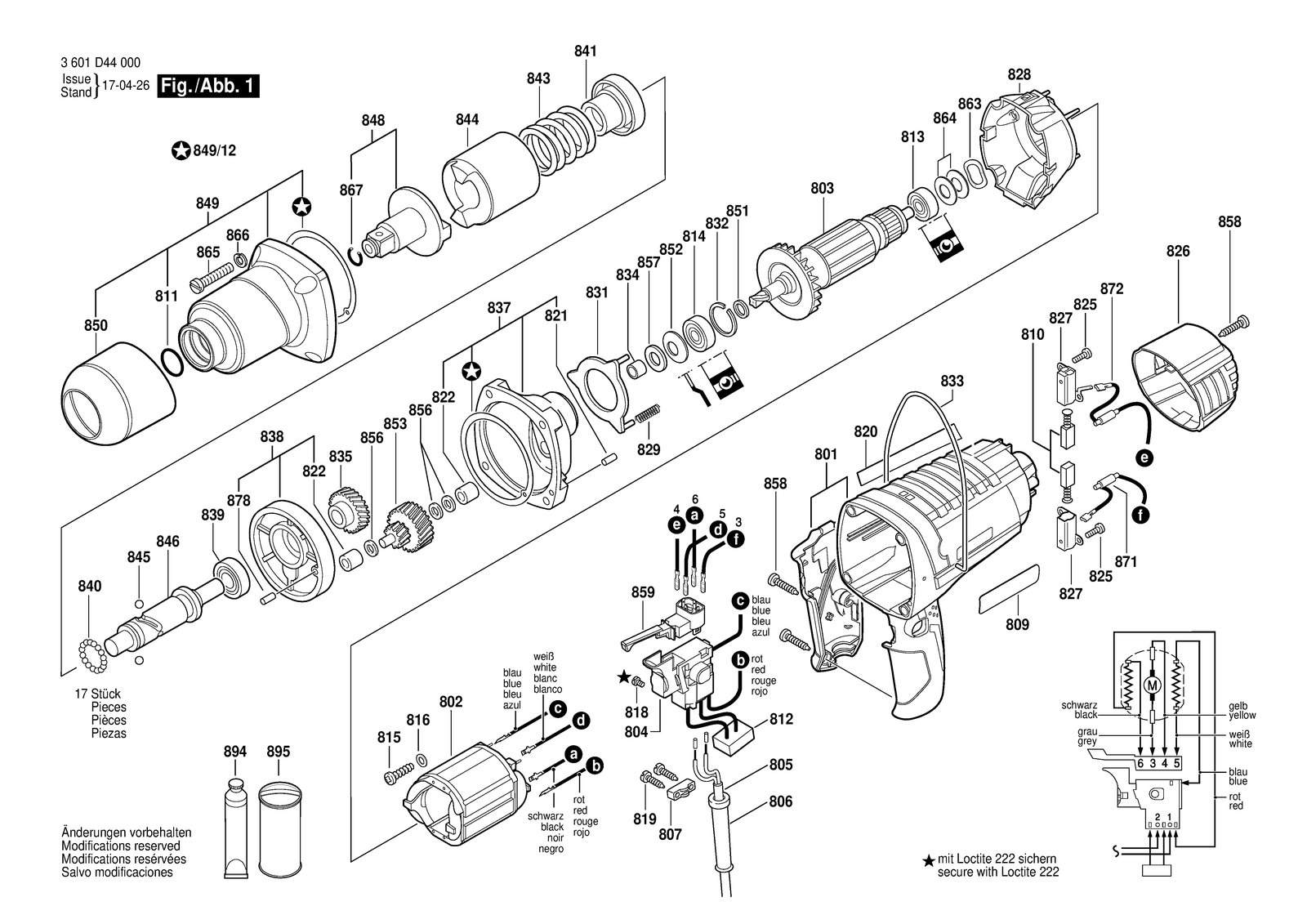

All parts of Bosch GDS 18 E: 87 positions on 1 sheet
Bosch GDS 18 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 1619PA2434 | Motor Housing |
| 802 | 1619PA2435 | Field 220-230V |
| 802 | 1619PA2892 | Field 127V |
| 802 | 1619PA2899 | Field 110V |
| 803 | 1619PA2436 | Armature 220-230V |
| 803 | 1619PA2893 | Armature 127V |
| 803 | 1619PA2900 | Armature 110V |
| 804 | 1607200252 | On-Off Switch |
| 804 | 1607200253 | On-Off Switch |
| 805 | 1604460257 | Power supply cord CN 2,65M 2 X 1,0MM H07 Rn-F |
| 805 | 1604460282 | Elec. Cable W/Connection BR 2,65M 2 X 1,0MM H07RN-F |
| 805 | 1604460453 | Power supply cord |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1619PB5311 | Power supply cord |
| 805 | 2604460085 | Elec. Cable W/Connection AUS 2,6M 2 X 0,75MM Pvc |
| 805 | 3604460049 | Power supply cord |
| 805 | 3604460080 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07RN-F |
| 805 | 3604460081 | Power supply cord GB 240V 2,65M 2 X 1,0MM H07RN-F |
| 806 | 1619PA2888 | Grommet |
| 806 | 1619PB5530 | Grommet |
| 807 | 1619PA2889 | Cable Clip |
| 807 | 1619PB5529 | Cable Clip |
| 809 | 1619PA2437 | Manufacturer's nameplate GDS 18E |
| 810 | 1619PA2438 | Carbon-Brush Set |
| 810 | 1619PA2895 | Carbon-Brush Set |
| 811 | 1619PA2989 | O-Ring |
| 812 | 1619PA2439 | Suppression Capacitor |
| 813 | 1900905018 | Ball Bearing 7X22X7 |
| 814 | 2600905021 | Groove ball bearing 9X24X7 |
| 815 | 1619PA2440 | Screw |
| 816 | 1619PA2441 | Spring Washer |
| 818 | 1619PA2442 | Screw |
| 819 | 1619PA2443 | Screw |
| 820 | 1619PA2444 | Nameplate |
| 820 | 1619PA2474 | Nameplate |
| 820 | 1619PA2476 | Nameplate |
| 820 | 1619PA2478 | Nameplate |
| 820 | 1619PA2480 | Nameplate |
| 820 | 1619PA2482 | Nameplate |
| 820 | 1619PA2484 | Nameplate |
| 820 | 1619PA2486 | Nameplate |
| 820 | 1619PA2896 | Nameplate |
| 820 | 1619PB0422 | Nameplate |
| 821 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 822 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 825 | 1619PA2445 | Screw |
| 826 | 1619PA2446 | Housing Cover |
| 827 | 1619PA2890 | Brush Holder |
| 828 | 1619PA2447 | Air-Deflector Ring |
| 829 | 1619PA2990 | Compression Spring |
| 831 | 1619PA2448 | Supporting Disc |
| 832 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 833 | 1619PA2449 | Suspension Loop |
| 834 | 1619PA2991 | Receptacle |
| 835 | 1619PA2450 | Cylindrical Gear |
| 837 | 1619PA2451 | Intermediate Bearing |
| 838 | 1619PA2452 | Intermediate Flange |
| 839 | 1900900287 | Groove ball bearing 12X28X8 |
| 840 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 841 | 1619PA2992 | Bushing |
| 843 | 1619PA2993 | Compression Spring |
| 844 | 1619PA2994 | Striker |
| 845 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 846 | 1619PA2995 | Drive Shaft |
| 848 | 1619PA2453 | Tool Holding Fixture |
| 849 | 1619PA2454 | Impact Mechanism Housing |
| 849/12 | 1619PA3949 | Mat seal |
| 850 | 1619PA2455 | Protective Cover |
| 851 | 1619PA2996 | Spacer Ring |
| 852 | 1619PA2997 | Cupped Washer |
| 853 | 1619PA2456 | Toothed Shaft |
| 856 | 1619PA2457 | Shim |
| 857 | 1619PA2998 | Felt Washer |
| 858 | 1619PA2458 | Screw |
| 859 | 2607200176 | Change-Over Switch |
| 863 | 2600150004 | Shim |
| 864 | 1619PA2999 | Shim |
| 865 | 1619PA2459 | Screw |
| 866 | 2916690004 | Spring Lock Washer DIN 128-A5-FST |
| 867 | 1619PA3000 | Retaining ring |
| 871 | 1619PA2460 | Suppressor Box |
| 871 | 1619PA2897 | Connecting Cable |
| 872 | 1619PA2891 | Suppressor Box |
| 872 | 1619PA2898 | Connecting Cable |
| 878 | 2917500101 | Straight Pin 4 H 8X24 DIN 7 |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 3605430003 | Grease Tube Albida |
