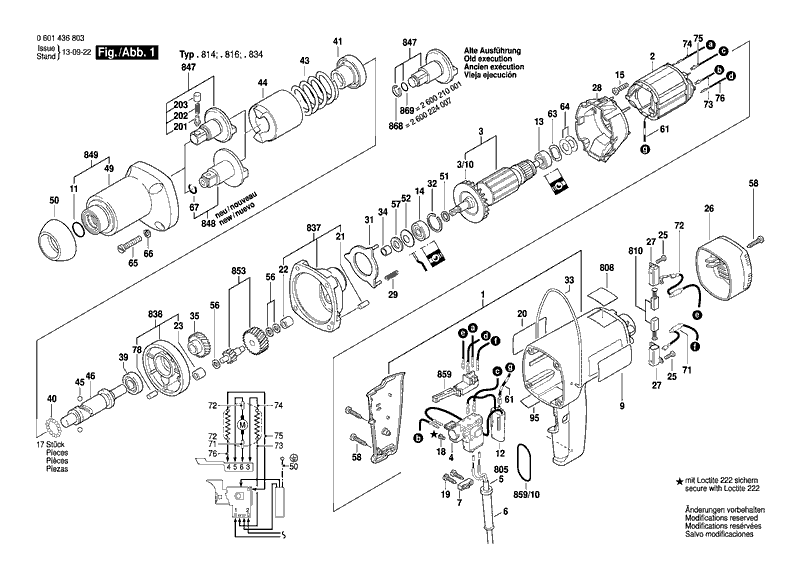

Bosch GDS 18 E impact wrench: exploded parts diagram, 1 sheet, 99 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 18 E: 99 positions on 1 sheet
Bosch GDS 18 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108109 | Motor Housing Blue |
| 11 | 3600210134 | O-Ring 22,0X2,2 MM |
| 12 | 2607329096 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 15 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220427 | Field 100V |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220430 | Field 240V |
| 2 | 2604220440 | Field 115V |
| 20 | 3601110140 | Sticker |
| 20 | 3601110367 | Sticker |
| 201 | 1603124085 | Detent Pin |
| 202 | 1604611019 | Compression Spring |
| 203 | 1600506009 | Guide Sleeve |
| 21 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 22 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 23 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 25 | 1613435034 | Lens Head Screw 3X10 St |
| 26 | 3605500018 | Housing Cover Black |
| 27 | 2604337003 | Brush Holder |
| 28 | 3605500017 | Air-Deflector Ring |
| 29 | 2604611024 | Compression Spring |
| 3 | 2604010627 | Armature 100V |
| 3 | 2604010628 | Armature 110V |
| 3 | 2604010629 | Armature 220-230V |
| 3 | 2604010630 | Armature 240V |
| 3 | 2604010701 | Armature 115V |
| 3/10 | 2606610049 | Fan |
| 31 | 3600190003 | Supporting Disc |
| 32 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 33 | 2604682001 | Suspension Loop |
| 34 | 2600400008 | Receptacle |
| 35 | 2606317001 | Cylindrical Gear Z=31 |
| 39 | 1900900287 | Groove ball bearing 12X28X8 |
| 4 | 2607200248 | Switch |
| 4 | 2607200249 | Switch |
| 40 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 41 | 1605801018 | Bushing |
| 43 | 1604619010 | Compression Spring |
| 44 | 2608710001 | Striker |
| 45 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 46 | 2603124002 | Drive Shaft |
| 49 | 3605190188 | Impact Mechanism Housing |
| 5 | 1604460257 | Power supply cord CN 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460282 | Elec. Cable W/Connection BR 2,65M 2 X 1,0MM H07RN-F |
| 5 | 1604460283 | Elec. Cable W/Connection BR 2,65M 2 X 1,0MM H07RN-F |
| 5 | 2604460085 | Elec. Cable W/Connection AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 3604460004 | Cable CH 2,65M 2 X 1,0MM H07RN-F |
| 5 | 3604460049 | Power supply cord |
| 5 | 3604460080 | Power supply cord GB 110V 2,65M 2 X 1,0MM H07RN-F |
| 5 | 3604460081 | Power supply cord GB 240V 2,65M 2 X 1,0MM H07RN-F |
| 50 | 2600250005 | Protective Ring |
| 51 | 3600113007 | Spacer Ring |
| 52 | 2600500002 | Cupped Washer |
| 56 | 2600100569 | Shim 1,0 MM |
| 57 | 2600108077 | Felt Washer |
| 58 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 61 | 3604431001 | Cable |
| 63 | 2600150004 | Shim |
| 64 | 2600101020 | Shim 0,5 MM |
| 64 | 2600101022 | Shim 0,2 MM |
| 64 | 2600101023 | Shim 0,3 MM |
| 65 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 66 | 2916690004 | Spring Lock Washer DIN 128-A5-FST |
| 67 | 3600224063 | Retaining ring |
| 7 | 2601035001 | Cable Clip |
| 71 | 3604431033 | Connecting Cable |
| 71 | 3604503005 | Suppression Filter |
| 72 | 3604431021 | Cable |
| 72 | 3604503006 | Suppression Filter |
| 73 | 3604431000 | Cable Blue |
| 74 | 3604431019 | Cable Gray |
| 75 | 3604431008 | Cable Black |
| 76 | 3604431020 | Cable White |
| 78 | 2917500101 | Straight Pin 4 H 8X24 DIN 7 |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H6 | Nameplate |
| 810 | 1607000484 | Carbon-Brush Set 10 X 2 604 321 905 |
| 810 | 2604321905 | Carbon-Brush Set |
| 837 | 3605500187 | Intermediate Bearing |
| 838 | 3605700120 | Intermediate Flange |
| 847 | 2606490906 | Coupling Half |
| 848 | 3607030424 | Tool Holding Fixture |
| 849 | 3605190188 | Impact Mechanism Housing |
| 853 | 3606309058 | Toothed Shaft |
| 859 | 1617200042 | Switch |
| 859/10 | 2600210019 | O-Ring 33,0X2,0 MM |
| 868 | 2600224007 | Retaining ring |
| 869 | 2600210001 | O-Ring 7,65X1,78 MM |
| 9 | 3601110140 | Sticker |
| 9 | 3601110365 | Sticker |
| 95 | 1601110265 | Reference Plate |
| 95 | 3601119137 | Warning Plate Caution |
