Bosch GDS 14,4 V-LI

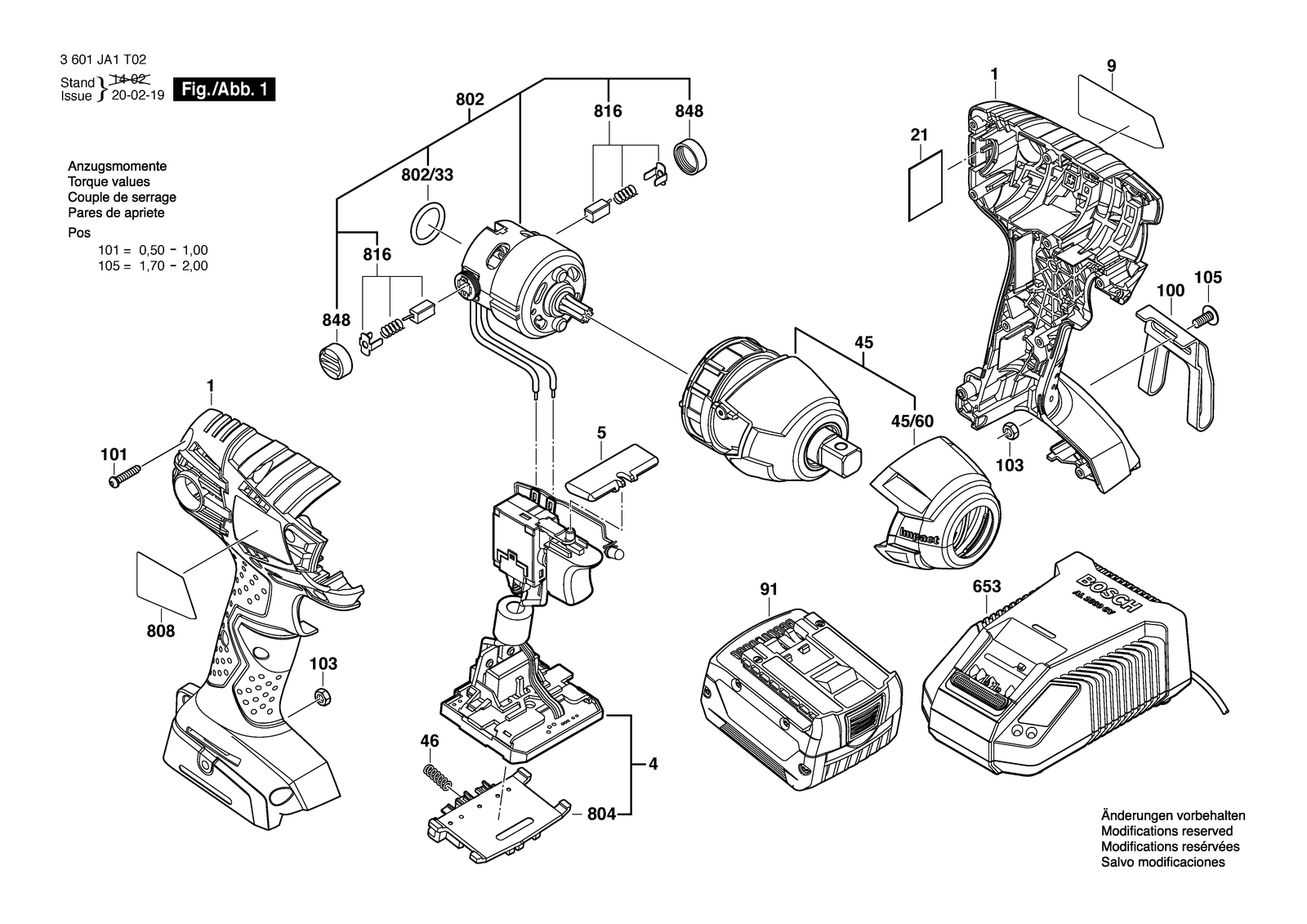

Bosch GDS 14,4 V-LI impact wrench: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 14,4 V-LI: 23 positions on 1 sheet
Bosch GDS 14,4 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101136 | Housing |
| 100 | 2609110833 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 21 | 2609111485 | Wire Mesh |
| 4 | 1607233479 | Electronics Module |
| 45 | 2609199696 | Gear Box |
| 45/60 | 2609170128 | Cap |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 802 | 2609199507 | DC motor 14,4V |
| 802/33 | 2609170104 | O-Ring |
| 804 | 1609280474 | Contact retainer |
| 808 | 1600A00YL6 | Nameplate |
| 816 | 2609199169 | Carbon-Brush Set |
| 848 | 2609199190 | Brush-Cover |
| 9 | 2609132049 | Manufacturer's nameplate GDS 14,4V-LI |
| 91 | 1607A350B9 | Battery Pack EU GBA 14.4V 2.0AH LI Scm |
| 91 | 2607336813 | Battery Pack Bbs-Mr Xl-Pack 14,4V, Li, 4,0 Ah |
