Bosch GDS 12 V

Bosch GDS 12 V impact wrench: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 12 V: 25 positions on 1 sheet

Bosch GDS 12 V parts list (1 sheet)

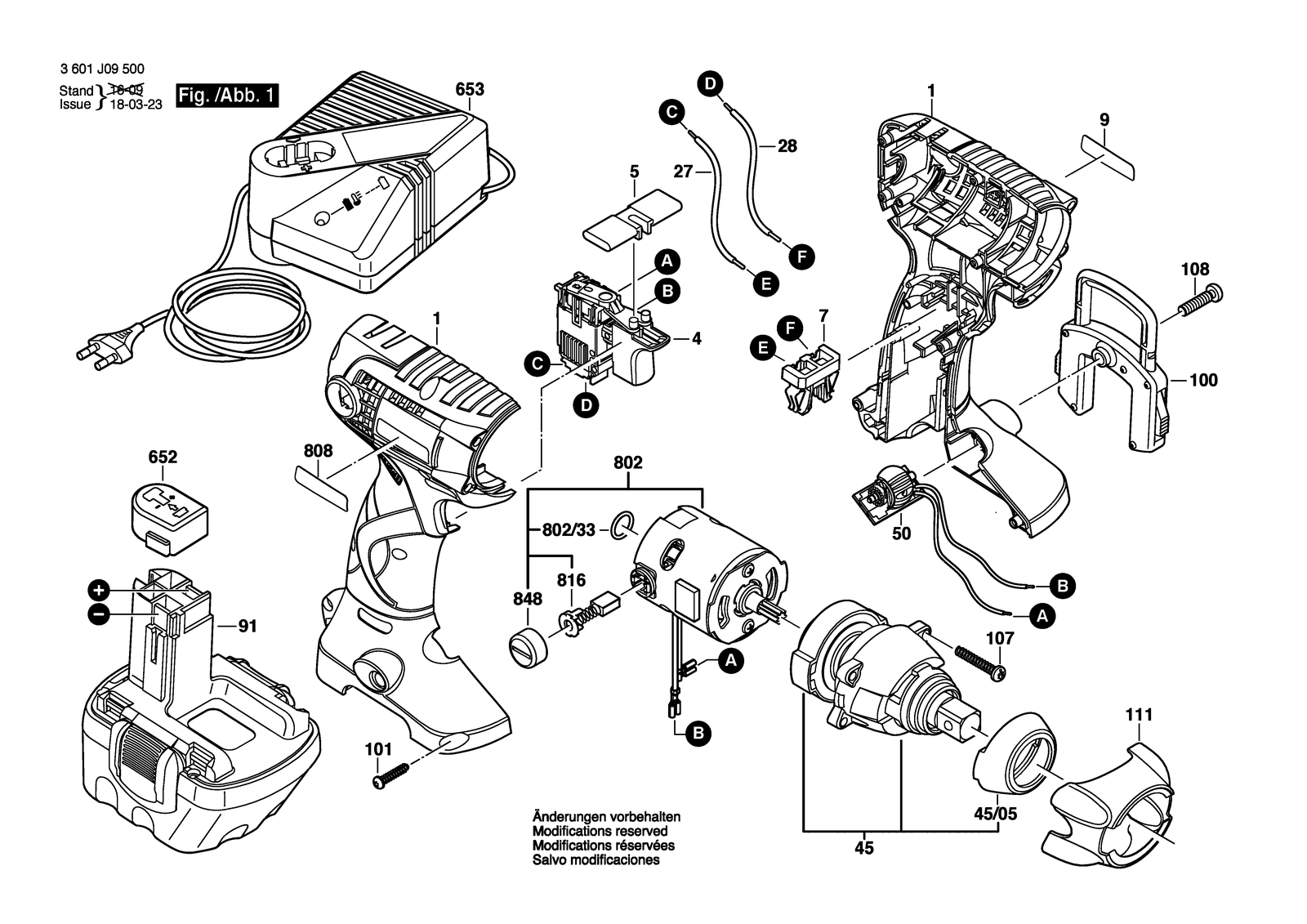

Bosch GDS 12 V parts diagram, sheet 1
No.Part numberPart name
12609100268Housing Blue
1002609199027Holder
1012609110201Torx Flat-Head Screw 3X16
1072609110327Screw
1082609110309Screw
1112609100298Cover Flap Black
272609120146Connecting Cable Black 50 MM
282609120147Connecting Cable Red 60 MM
42607200489On-Off Switch
452609199104Gear Box
45/052609170025Protective Ring
52609100273Button
502609199069Light-Emitting-Diode
6522609100101Protective Cap
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
72609100297Contact retainer
8022609199046Motor 12V
802/332609170030O-Ring
8082609135773Nameplate
8162609199048Carbon-Brush Set
8482609199049Sealing cap
92609131153Manufacturer's nameplate
912607335683Battery Pack 12V,2,6AH,NIMH
