Bosch GDS 10.8V-EC impact wrench: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 10.8V-EC: 50 positions on 1 sheet

Bosch GDS 10.8V-EC parts list (1 sheet)

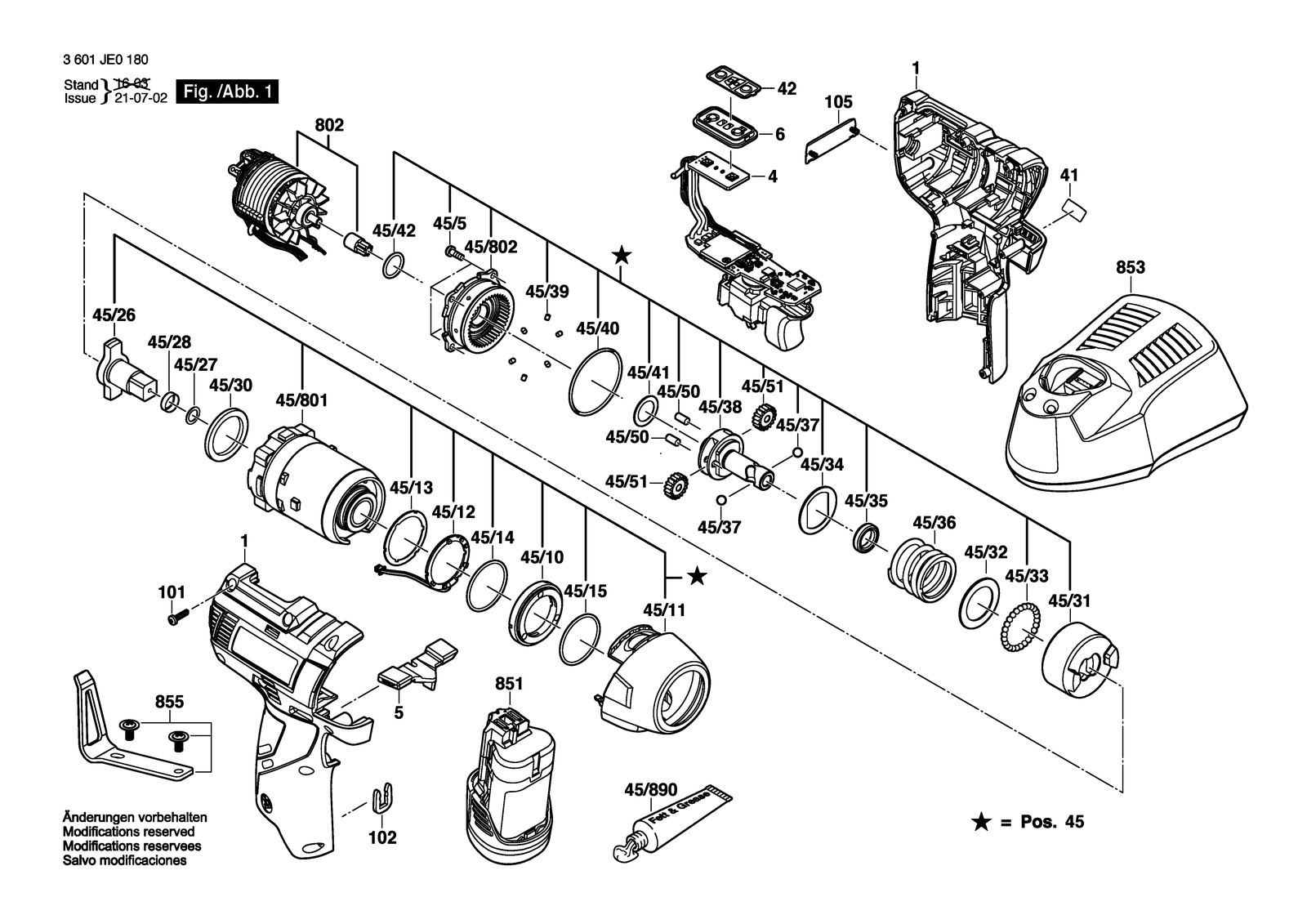

Bosch GDS 10.8V-EC parts diagram, sheet 1
No.Part numberPart name
12609101235Housing
1012609110883Screw
1022609110537Clip
1052609101394Color clip
41607233581Electronics Module
412609134168Sticker
422609134169Sticker
452609199731Gear Box
45/102609101305Lens
45/112609101306Cover
45/122609125143Module Pcb
45/132609170218Rubber Pad
45/142609170259O-Ring
45/152609170260Damping rubber
45/262609111677Coupling Half
45/272609111678Metal Ring
45/282609170227O-Ring
45/302609111788Washer
45/312609111531Striker
45/322609111666Washer
45/332609110513Steel ball
45/342609111667Thrust Washer
45/352609170220Foam Plastics Blank
45/362609111668Contact strap
45/372609111906Steel ball
45/382609111530Jack Shaft
45/392609111738Pin
45/402609170221Seal
45/412609111673Washer
45/422609170243O-Ring
45/52609111708Screw
45/502609111669Pin
45/512609111670Planet Gear
45/8012609199784Gear Housing
45/8022609199785Flange Housing
45/8901600A002NEGrease Tube 45 Ml
52609101236Adjusting lever
62609101237Button
8022609199661Brushless DC motor
8511607A350C5Battery Pack GBA 12V 2.0AH LI Scm
8511607A350C7Battery Pack Rok GBA 10,8V 2.0AH O-b
8512607336889Battery Pack 10,8V, 2,0AH, LI
8512607337015Battery Set 10,8V, 4,0AH, LI
8532607225135Fast Charger UK AL1130CV 230V/12V/3A
8532607225141Fast Charger SAM 115/10,8V, 30 Min.
8532607225143Fast Charger J 100/10,8V, 30 Min.
8532607225145Fast Charger ROK 230/10,8V, 30 Min.
8532607225303Fast Charger CN 220/10,8V, 30 Min.
8532607226219Fast Charger EU GAL 12V-40
8552609199986Clip
