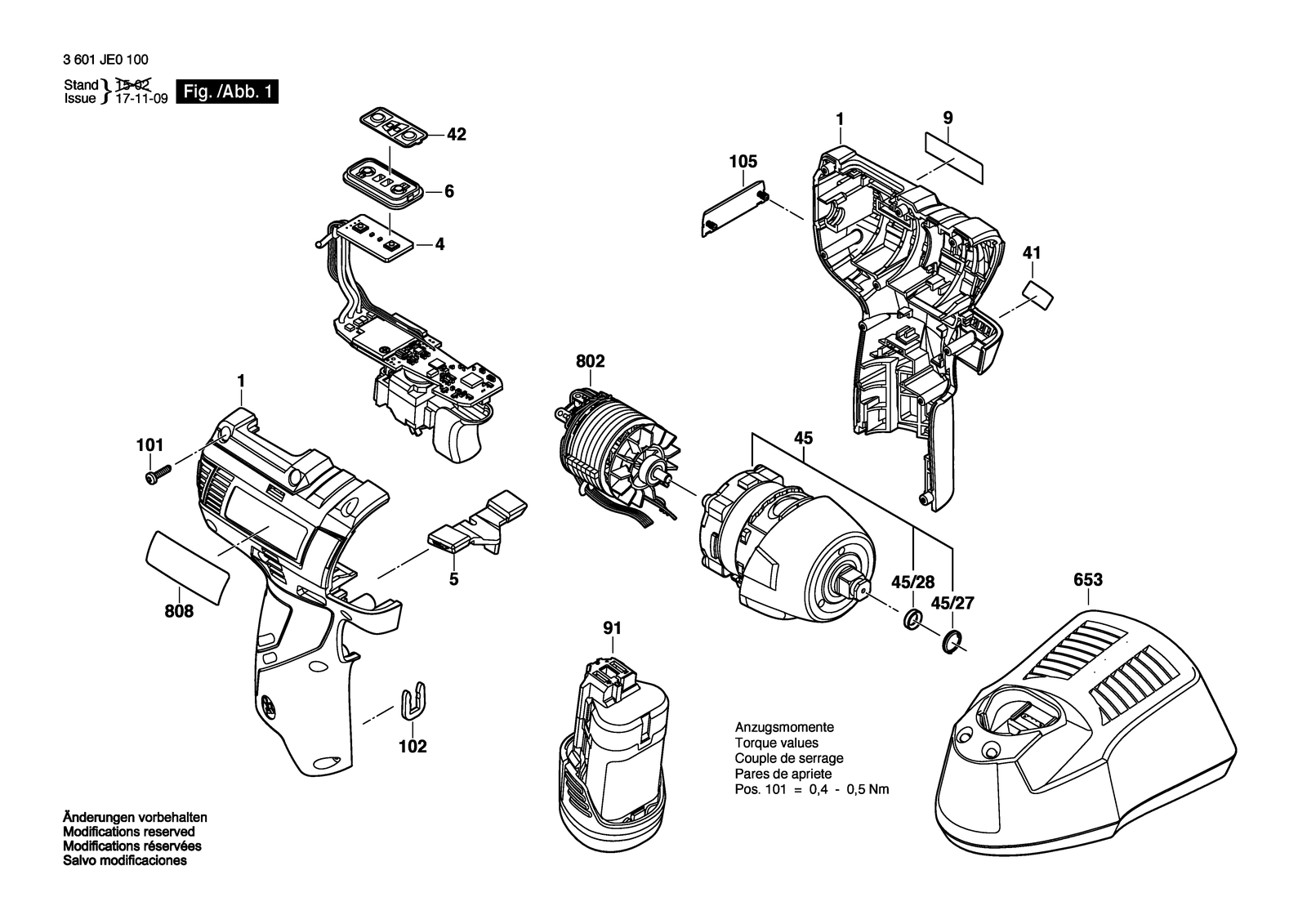

Bosch GDS 10,8 V-EC impact wrench: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDS 10,8 V-EC: 23 positions on 1 sheet
Bosch GDS 10,8 V-EC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101235 | Housing |
| 101 | 2609110883 | Screw |
| 102 | 2609110537 | Clip |
| 105 | 2609101394 | Color clip |
| 4 | 1607233581 | Electronics Module |
| 41 | 2609134168 | Sticker |
| 42 | 2609134169 | Sticker |
| 45 | 2609199731 | Gear Box |
| 45/27 | 2609111678 | Metal Ring |
| 45/28 | 2609170227 | O-Ring |
| 5 | 2609101236 | Adjusting lever |
| 6 | 2609101237 | Button |
| 653 | 2607225135 | Fast Charger UK AL1130CV 230V/12V/3A |
| 653 | 2607226101 | Fast Charger EU GAL 1230 CV 230/12V |
| 653 | 2607226105 | Fast Charger Gb GAL 1230 CV 230/12V |
| 802 | 2609199661 | Brushless DC motor |
| 808 | 160111A4FU | Nameplate |
| 808 | 2609135159 | Nameplate |
| 9 | 160111C1M0 | Manufacturer's nameplate GDS 12V-115 |
| 9 | 2609135461 | Manufacturer's nameplate GDS 10,8 V-Ec |
| 91 | 1607A35049 | Battery Pack 12V, 2,5AH, LI Gba |
| 91 | 1607A3506A | Battery Pack GBA 12V 3,0 Ah LI |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
