Bosch GDR 18V-215

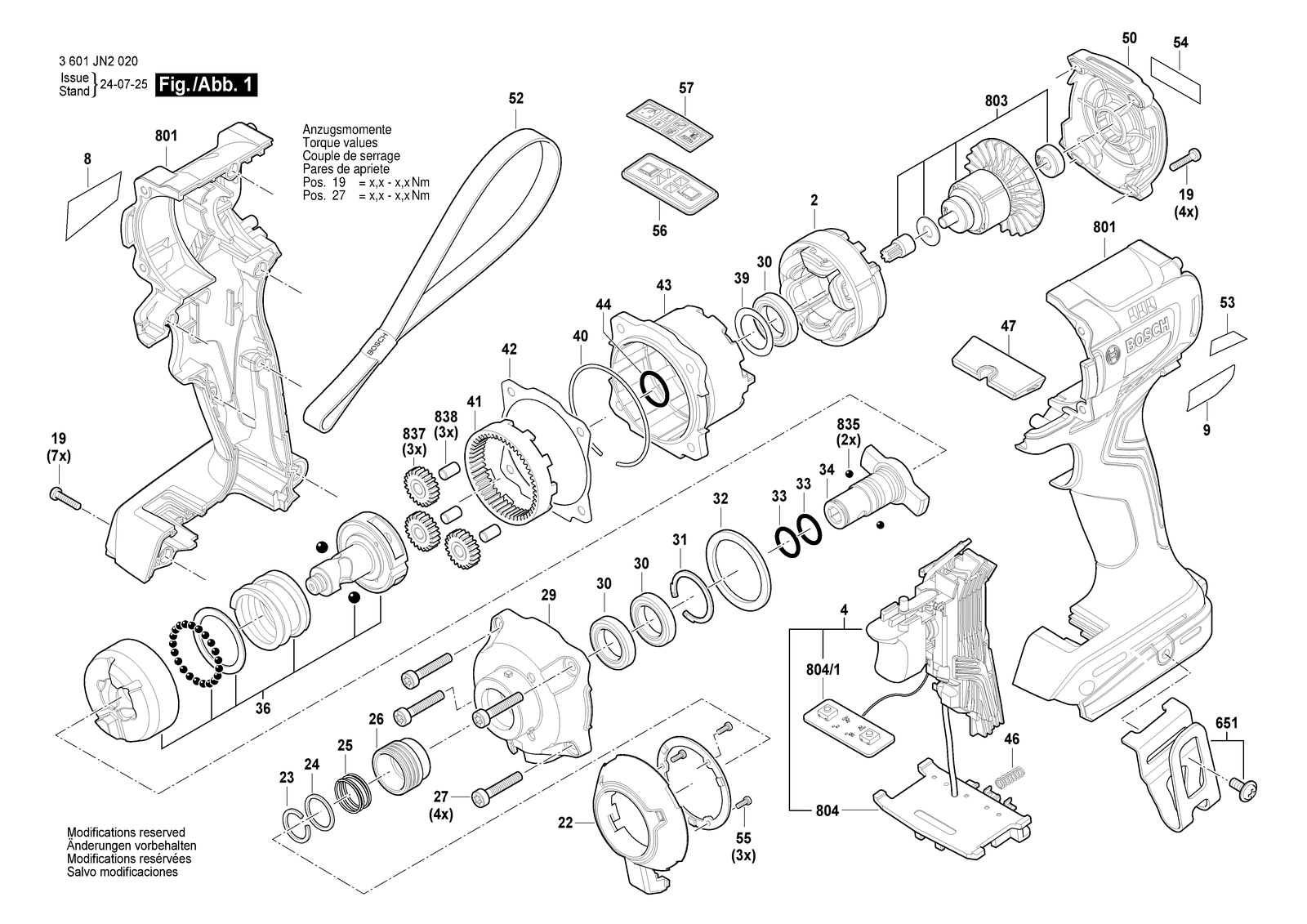

Bosch GDR 18V-215 impact wrench: exploded parts diagram, 2 sheets, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18V-215: 48 positions on 2 sheets
Bosch GDR 18V-215 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 19 | 1619PS0575 | Torx Flat-Head Screw |
| 2 | 1619PS0571 | Stator |
| 22 | 1619PS0576 | Cover |
| 23 | 1619PS0577 | Retaining ring |
| 24 | 1619PS0578 | Washer |
| 25 | 1619PS0579 | Spring |
| 26 | 1619PS0580 | Sleeve |
| 26 | 1619PS0617 | Sleeve |
| 27 | 1619PS0581 | Torx Flat-Head Screw |
| 29 | 1619PS0583 | Gear Box |
| 30 | 1619PS0584 | Ball Bearing |
| 31 | 1619PS0585 | Retaining ring |
| 32 | 1619PS0586 | Washer |
| 33 | 1619PS0587 | O-Ring |
| 34 | 1619PS0588 | Coupling Half |
| 34 | 1619PS0618 | Coupling Half |
| 36 | 1619PS0590 | Impact Mechanism |
| 39 | 1619PS0593 | Washer |
| 4 | 1619PS0572 | Switch |
| 40 | 1619PS0594 | Retaining ring |
| 41 | 1619PS0595 | Ring Gear |
| 42 | 1619PS0596 | Sealing washer |
| 43 | 1619PS0597 | Gear Housing |
| 44 | 1619PS0598 | O-Ring |
| 46 | 1619PS0600 | Spring |
| 47 | 1619PS0601 | Reverse-Transfer Lever |
| 50 | 1619PS0602 | End cap |
| 52 | 1619PS0603 | Strap |
| 53 | 1619PS0604 | Label |
| 54 | 1619PS0605 | Label |
| 55 | 1619PS0606 | Pan head screw |
| 56 | 1619PS0607 | HMI Housing |
| 57 | 1619PS0608 | Label |
| 58 | 1619PS0620 | Spring |
| 59 | 1619PS0621 | Retaining ring |
| 651 | 1619PS0610 | Clip |
| 751 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 8 | 1619PS0573 | Nameplate |
| 8 | 1619PS0612 | Nameplate |
| 8 | 1619PS1595 | Nameplate |
| 801 | 1619PS0699 | Housing |
| 803 | 1619PS0611 | Armature assembly |
| 804 | 1609280478 | Contact retainer |
| 804/1 | 1619PS1596 | Electronic Module |
| 835 | 1619PS0695 | Steel ball |
| 837 | 1619PS0694 | Planet Gear |
| 838 | 1619PS0693 | Dowel pin |
| 9 | 1619PS0574 | Manufacturer's nameplate |
