Bosch GDR 18V-1950 C impact wrench: exploded parts diagram, 2 sheets, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18V-1950 C: 38 positions on 2 sheets

Bosch GDR 18V-1950 C parts list (2 sheets)

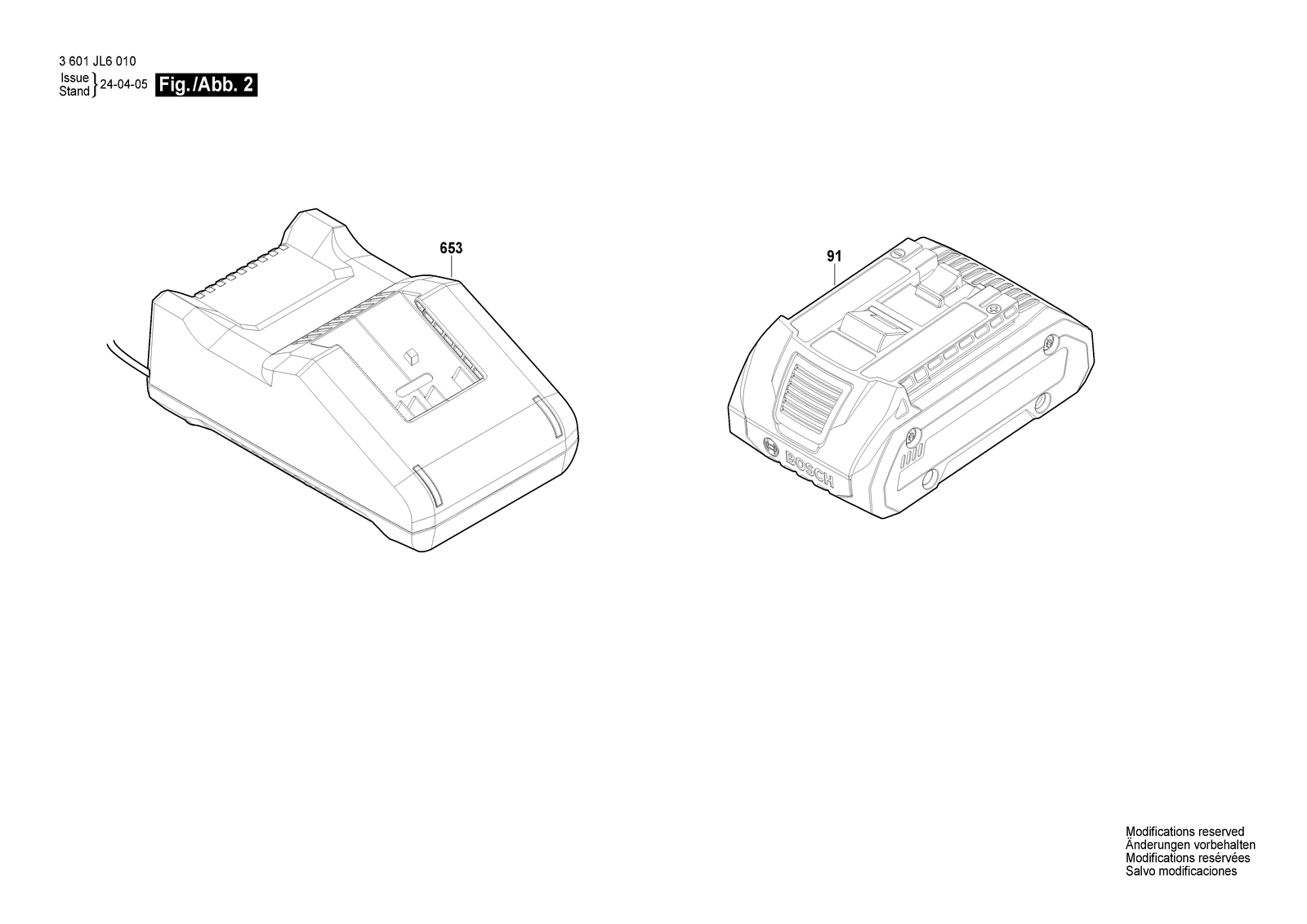

Bosch GDR 18V-1950 C parts diagram, sheet 1Bosch GDR 18V-1950 C parts diagram, sheet 2
No.Part numberPart name
116058066ETHousing
100/12609111584Clip
100/22609110834Screw
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
161600A016CZElectronics Module
171600A02KY7Cover Panel
1811600A014J4Warning Label
21619P17575Stator
31619P17567Rotor
416072335RJElectronics Module
4/41607504144Printed-Board Assembly
4/61607504147Printed-Board Assembly
42160111C441Sticker
43160111C5GTSticker
451600A02HP1Gear Box
45/611600A02H7CWasher
45/62160461205ACompression Spring
45/631600A02H7DSleeve Ring
45/641600A02H7ABall
45/65160460104ERetaining ring
45/661604612059Compression Spring
45/6716002100CFO-Ring
45/701600A002NEGrease Tube 45 Ml
461609280477Compression Spring
491600A02K0YCover
51600A02HM9Changeover Lever
501600A02R8KSeparator
582609100301Strap
62607202904Switch
6532607226257Fast Charger Usa GAL 18V-40 120V/ 4A/ 10.8-18V
6582609199748Bit holder
71600A0385PCover unit
711600A02R7LLens
8041600A023LUContact retainer
808160111AB27Nameplate
9160111C5HJManufacturer's nameplate
911607A350APBattery Pack Usa GBA18V40 18V 4.0AH Procore Scm
