Bosch GDR 18 V-LI MF impact wrench: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18 V-LI MF: 36 positions on 1 sheet

Bosch GDR 18 V-LI MF parts list (1 sheet)

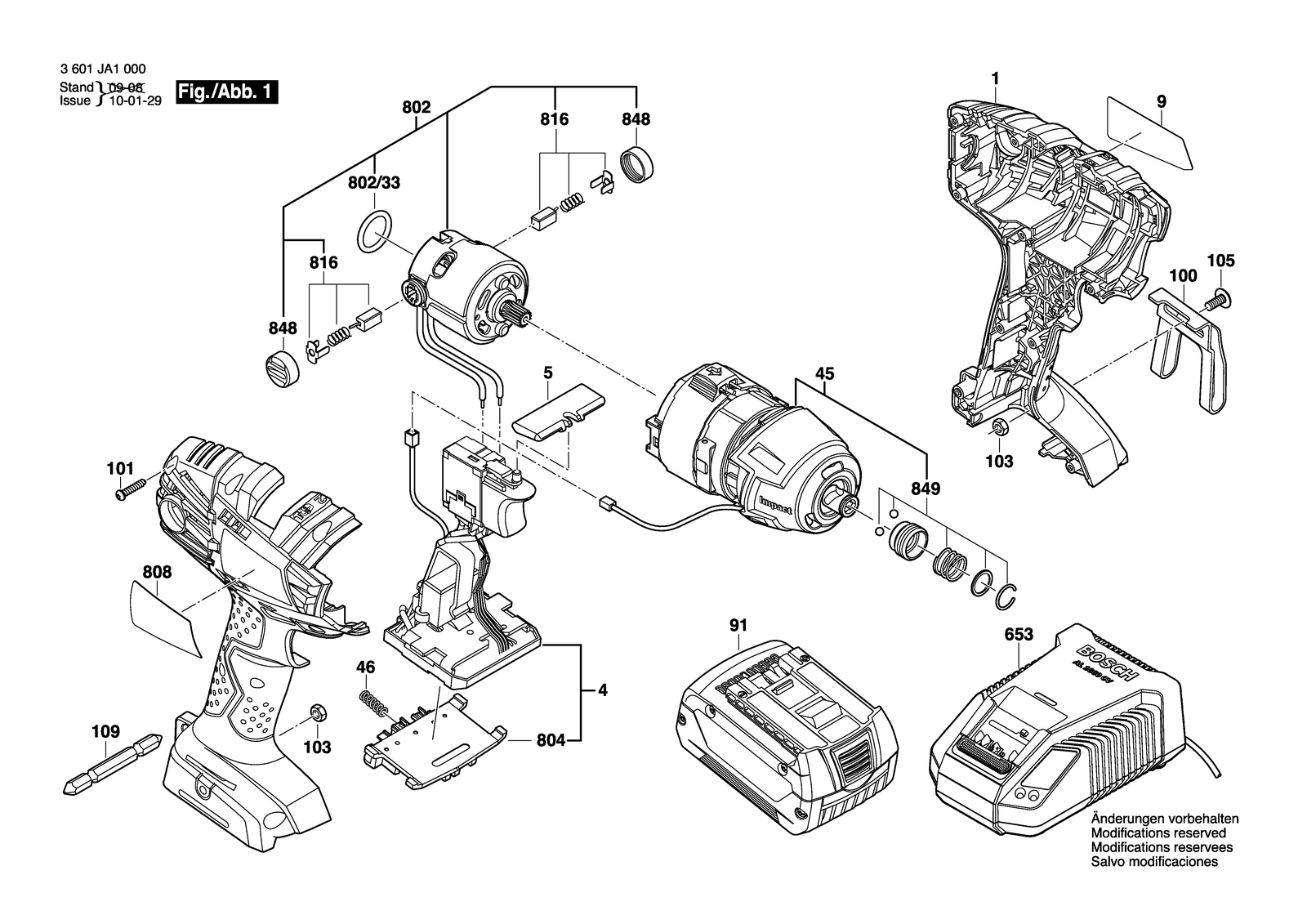

Bosch GDR 18 V-LI MF parts diagram, sheet 1
No.Part numberPart name
12609100788Housing Blue
1002609110833Clip
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
1052609110834Screw
1092609110342Screwdriver Blade
1092609110343Screwdriver Blade
41607233351Electronic Assembly
452609199230Gear Box
452609199254Gear Box
461609280477Compression Spring
52609100698Button
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225325Fast Charger AUS 230/10,8-18V, 30 Min
6532607225329Fast Charger LAM 120/10,8-18V, 30 Min
6532607225425Fast Charger GB 230/10,8-18V, 1H
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225925Charger Aus GAL 1880 CV 230/14,4-18V
6532607225931Charger J GAL 1880 CV 100/14,4-18V
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6532607225937Charger Cn GAL 1880 CV 220V/14,4-18V
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
8022609199263DC motor 18V
802/332609170104O-Ring
8041609280478Contact retainer
8081600A00YF8Nameplate
8082609132417Nameplate
8082609132423Nameplate
8082609132425Nameplate
8162609199169Carbon-Brush Set
8482609199190Brush-Cover
8492609199223Bit holder
92609132429Manufacturer's nameplate GDR 18V-LI Mf
911607A350B2Battery Pack 18V 3.0AH LI Scm
911607A350M0Battery Pack GBA 18V 4.0AH
912607336095Slide-In Accu Package 18V, 2,6AH, Li, Ms
