Bosch GDR 18 V-LI impact wrench: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18 V-LI: 41 positions on 1 sheet

Bosch GDR 18 V-LI parts list (1 sheet)

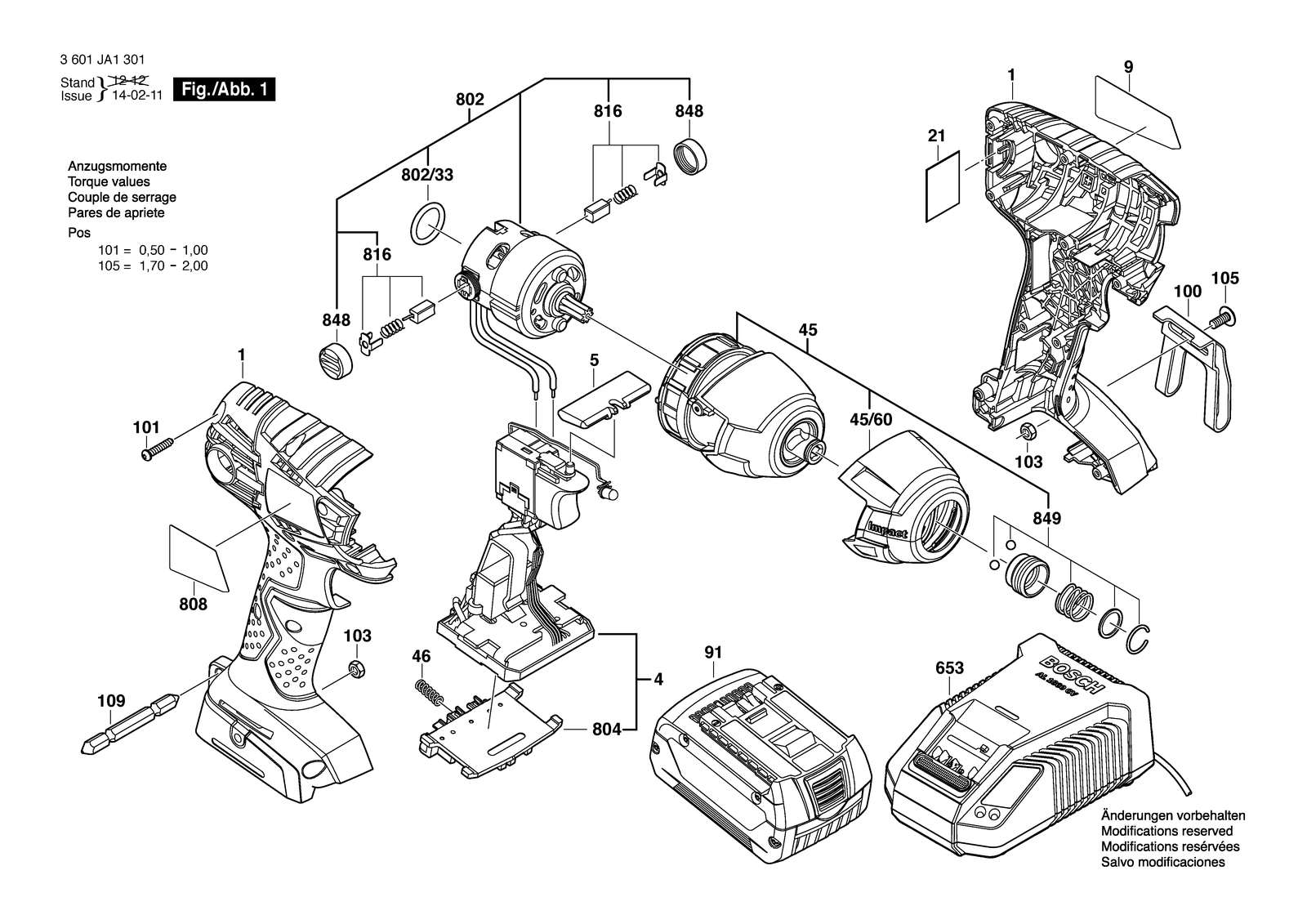

Bosch GDR 18 V-LI parts diagram, sheet 1
No.Part numberPart name
12609101136Housing
1002609110833Clip
1002609110956Clip
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
1052609110834Screw
1092609110342Screwdriver Blade
1092609110343Screwdriver Blade
212609111485Wire Mesh
41607233480Electronics Module
452609199693Gear Box
452609199694Gear Box
45/602609170128Cap
461609280477Compression Spring
52609100698Button
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225325Fast Charger AUS 230/10,8-18V, 30 Min
6532607225329Fast Charger LAM 120/10,8-18V, 30 Min
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225925Charger Aus GAL 1880 CV 230/14,4-18V
6532607225931Charger J GAL 1880 CV 100/14,4-18V
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6532607225937Charger Cn GAL 1880 CV 220V/14,4-18V
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
8022609199276DC motor 18V
802/332609170104O-Ring
8041609280478Contact retainer
8081600A00YG3Nameplate
8081600A00YG4Nameplate
8082609132567Nameplate
8082609132571Nameplate
8082609133519Nameplate
8162609199169Carbon-Brush Set
8482609199190Brush-Cover
8492609199223Bit holder
92609132048Manufacturer's nameplate GDR 18V-LI
911607A350B2Battery Pack 18V 3.0AH LI Scm
911607A350JRBattery Pack GBA 18V 1.5AH
911607A350M0Battery Pack GBA 18V 4.0AH
912607336095Slide-In Accu Package 18V, 2,6AH, Li, Ms
