Bosch GDR 18 V-EC

Bosch GDR 18 V-EC impact wrench: exploded parts diagram, 2 sheets, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18 V-EC: 48 positions on 2 sheets

Bosch GDR 18 V-EC parts list (2 sheets)

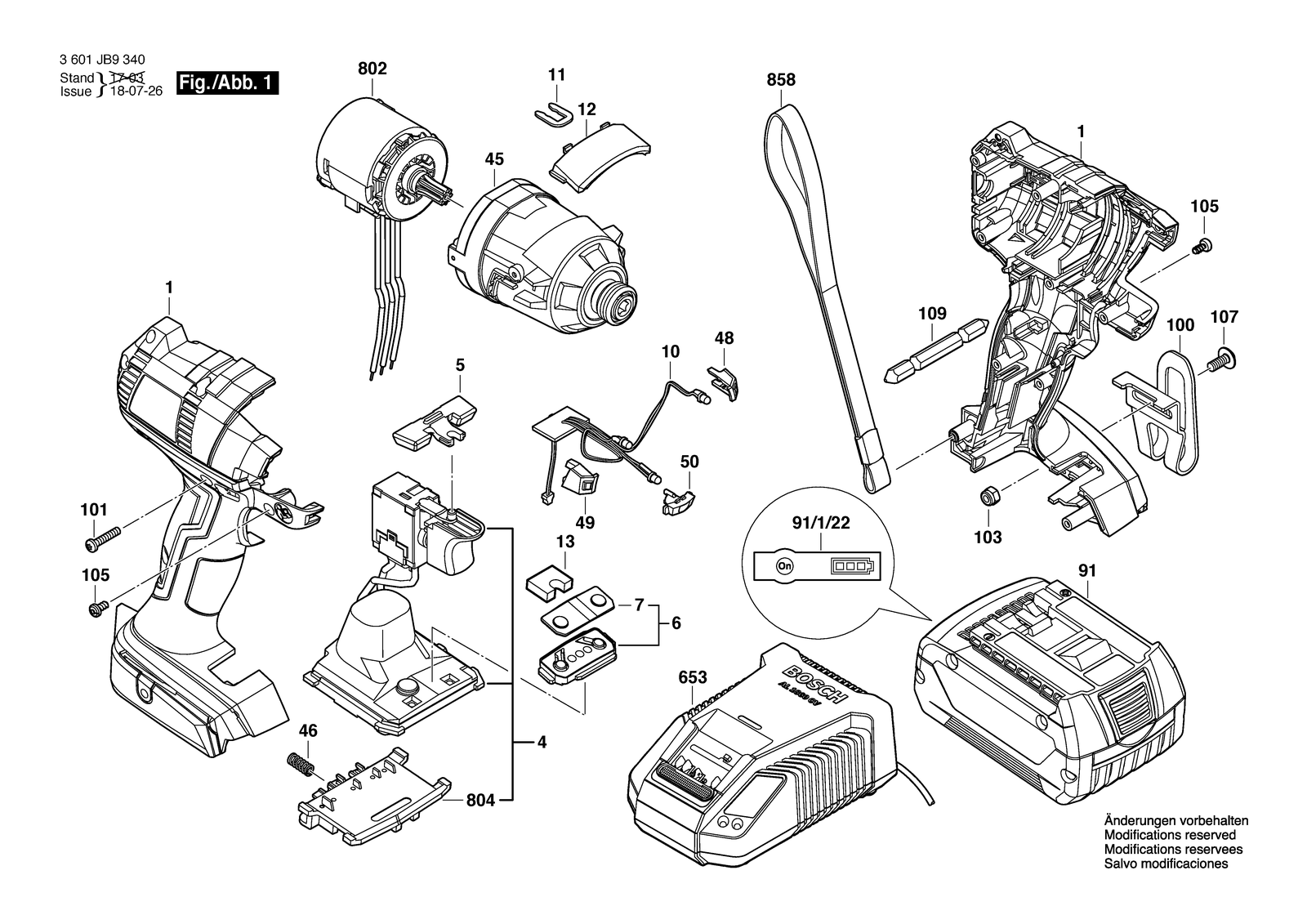

Bosch GDR 18 V-EC parts diagram, sheet 1Bosch GDR 18 V-EC parts diagram, sheet 2
No.Part numberPart name
12609101066Housing
102609199465Electronics Module
1002609111584Clip
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
1052609111447Pan head screw
1072609110834Screw
1092609110343Screwdriver Blade
112609110838Clip
122609111415Cover
132609170193Protector
41607233470Electronics Module
452609199394Gear Box
45/12609199628Housing Assembly
45/102609110808Pin
45/112609111289Planet Gear
45/122609110810Ring Gear
45/22609100984Flange Housing
45/32609170156O-Ring
45/302609110811Washer
45/312609110812Washer
45/42609111258Pin
45/452609111475Coupling Half
45/52609110807Ball Bearing
45/502609110818Ball
45/512609111577Striker
45/532609110820Washer
45/542609170096Rubber Ring
45/552609110821Washer
45/562609111594Spring
45/572609110823Jack Shaft
45/8492609199223Bit holder
45/8522609111905Ball
45/8901600A002NEGrease Tube 45 Ml
461609280477Compression Spring
482609101069Lens
492609101070Lens
52609101067Adjusting lever
502609101083Lens
62609101068Button
6532607225325Fast Charger AUS 230/10,8-18V, 30 Min
6532607225925Charger Aus GAL 1880 CV 230/14,4-18V
72609133596Label
8022609199548DC motor 480W
8041609280478Contact retainer
8582609100301Strap
911607A350M0Battery Pack GBA 18V 4.0AH
91/1/222601115537Sticker
