Bosch GDR 18 V

Bosch GDR 18 V impact wrench: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 18 V: 25 positions on 1 sheet

Bosch GDR 18 V parts list (1 sheet)

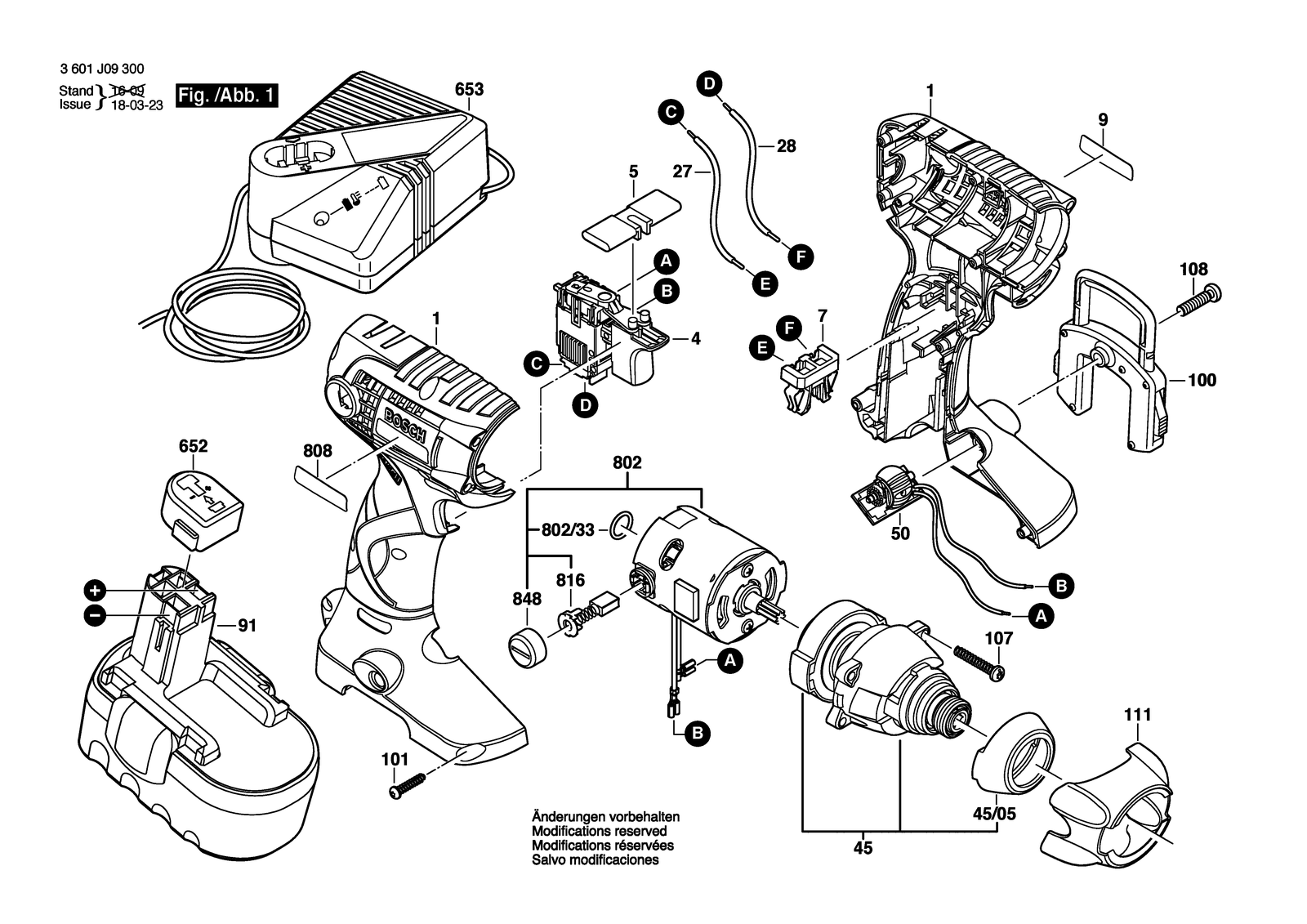

Bosch GDR 18 V parts diagram, sheet 1
No.Part numberPart name
12609100488Housing Cover Blue
1002609199027Holder
1012609110201Torx Flat-Head Screw 3X16
1072609110327Screw
1082609110309Screw
1112609100298Cover Flap Black
272609120146Connecting Cable Black 50 MM
282609120147Connecting Cable Red 60 MM
42607200489On-Off Switch
452609199195Gear Box
45/052609170025Protective Ring
52609100273Button
502609199091Light-Emitting-Diode
6522609100101Protective Cap
6532607225027Fast Charger EU 230/7,2-24V, 30 Min.
6532607225029Fast Charger GB 230/7,2-24V, 30 Min.
6532607225031Fast Charger AUS 240/7,2-24V, 30 Min.
72609100297Contact retainer
8022609199089Motor 18V
802/332609170030O-Ring
8082609135962Nameplate
8162609199048Carbon-Brush Set
8482609199049Sealing cap
92609131095Manufacturer's nameplate
912607335687Slide-In Accu Package 18V, 2,6AH, Nimh, Hd
