Bosch GDR 1440-LI

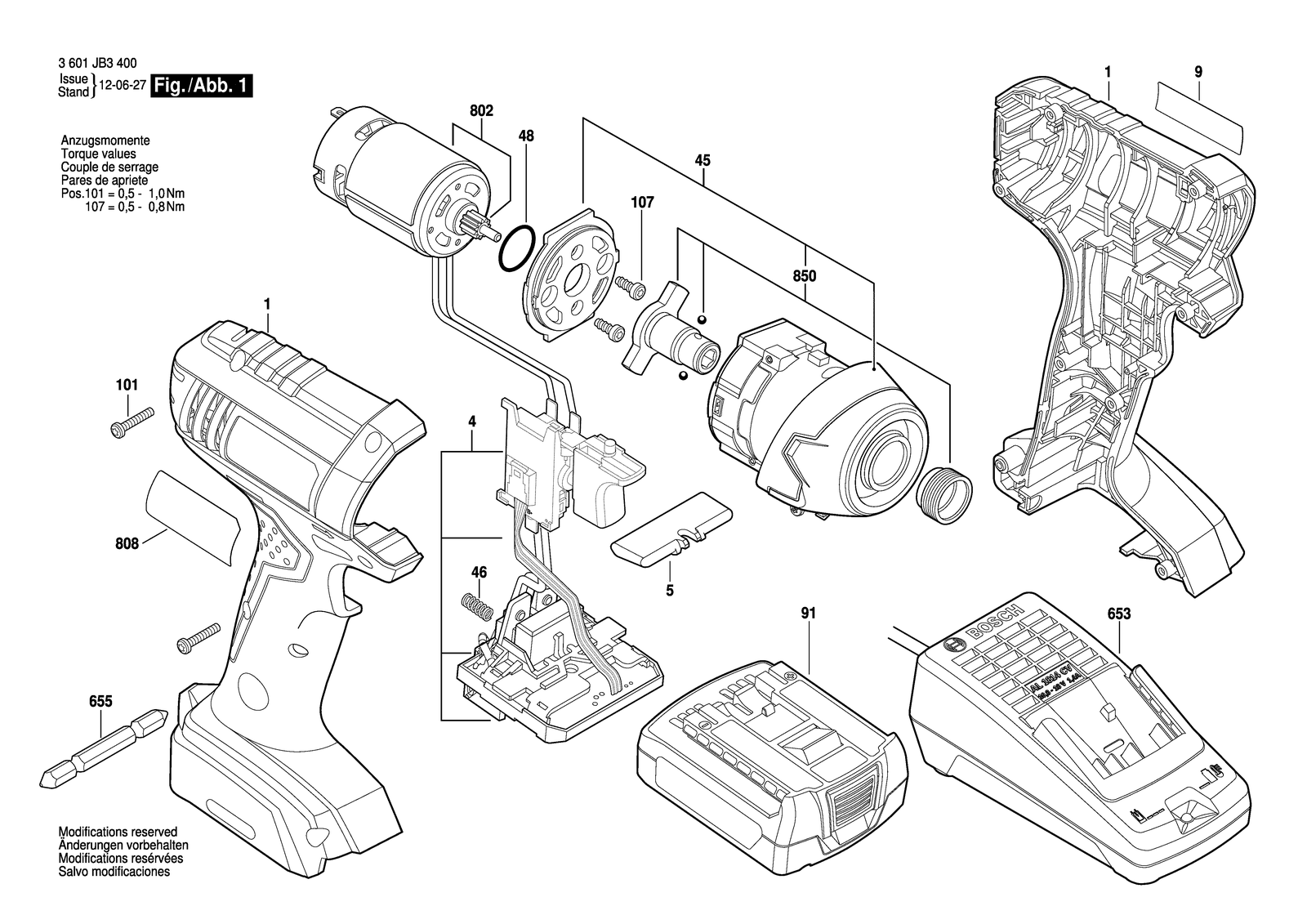

Bosch GDR 1440-LI impact wrench: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 1440-LI: 17 positions on 1 sheet
Bosch GDR 1440-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101006 | Housing |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609110560 | Screw |
| 4 | 2609199610 | Electronics Module |
| 45 | 2609199400 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 48 | 2609170168 | Seal Ring |
| 5 | 2609100698 | Button |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 655 | 2609110343 | Screwdriver Blade |
| 802 | 2609199419 | DC motor 14,4V |
| 808 | 2609133171 | Nameplate |
| 850 | 2609199320 | Coupling Half |
| 9 | 2609133184 | Manufacturer's nameplate GDR 1440 LI |
| 91 | 2607336607 | Slide-In Accu Package 14,4V 1,3AH, Li, Alpha 18720MWH |
| 91 | 2607336739 | Slide-In Accu Package |
