Bosch GDR 14,4 V

Bosch GDR 14,4 V impact wrench: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 14,4 V: 41 positions on 1 sheet

Bosch GDR 14,4 V parts list (1 sheet)

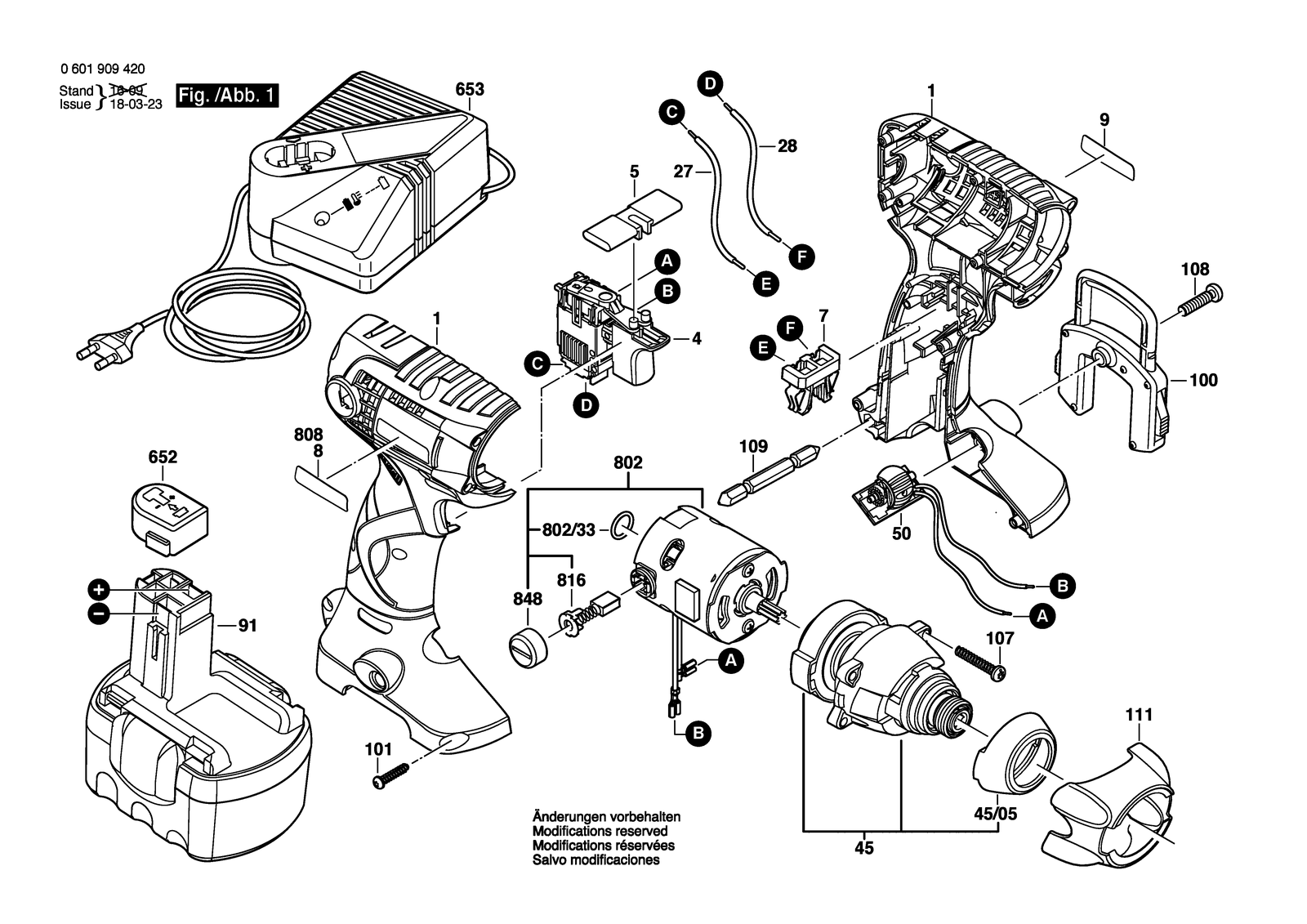

Bosch GDR 14,4 V parts diagram, sheet 1
No.Part numberPart name
12609100270Housing Blue
1002609199027Holder
1012609110201Torx Flat-Head Screw 3X16
1072609110327Screw
1082609110309Screw
1092609110342Screwdriver Blade
1092609110343Screwdriver Blade
1112609100298Cover Flap Black
272609120146Connecting Cable Black 50 MM
282609120147Connecting Cable Red 60 MM
42607200489On-Off Switch
452609199161Gear Box
452609199195Gear Box
45/052609170025Protective Ring
52609100273Button
502609199069Light-Emitting-Diode
6522609100101Protective Cap
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224431Fast Charger USA 120/7,2-24V, 1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224709Fast Charger RC 115/7,2-14,4V, 30 Min.
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
6532607225207Fast Charger BR 220/7,2-14,4V,30 Min.
72609100297Contact retainer
8022609199047Motor 14,4V
802/332609170030O-Ring
808160111A5KMNameplate
8082609131640Nameplate
8082609131643Type Label
8082609131644Type Label
8082609135755Nameplate
8162609199048Carbon-Brush Set
8482609199049Sealing cap
92609130718Manufacturer's nameplate GDR 14,4V
912607335685Slide-In Accu Package 14,4V, 2,6AH, Nimh
912607335693Slide-In Accu Package 14,4V,3,0AH,NIMH
912607335743Slide-In Accu Package 14,4V,2,0AH,NICD
