Bosch GDR 120-LI

Bosch GDR 120-LI impact wrench: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 120-LI: 29 positions on 1 sheet

Bosch GDR 120-LI parts list (1 sheet)

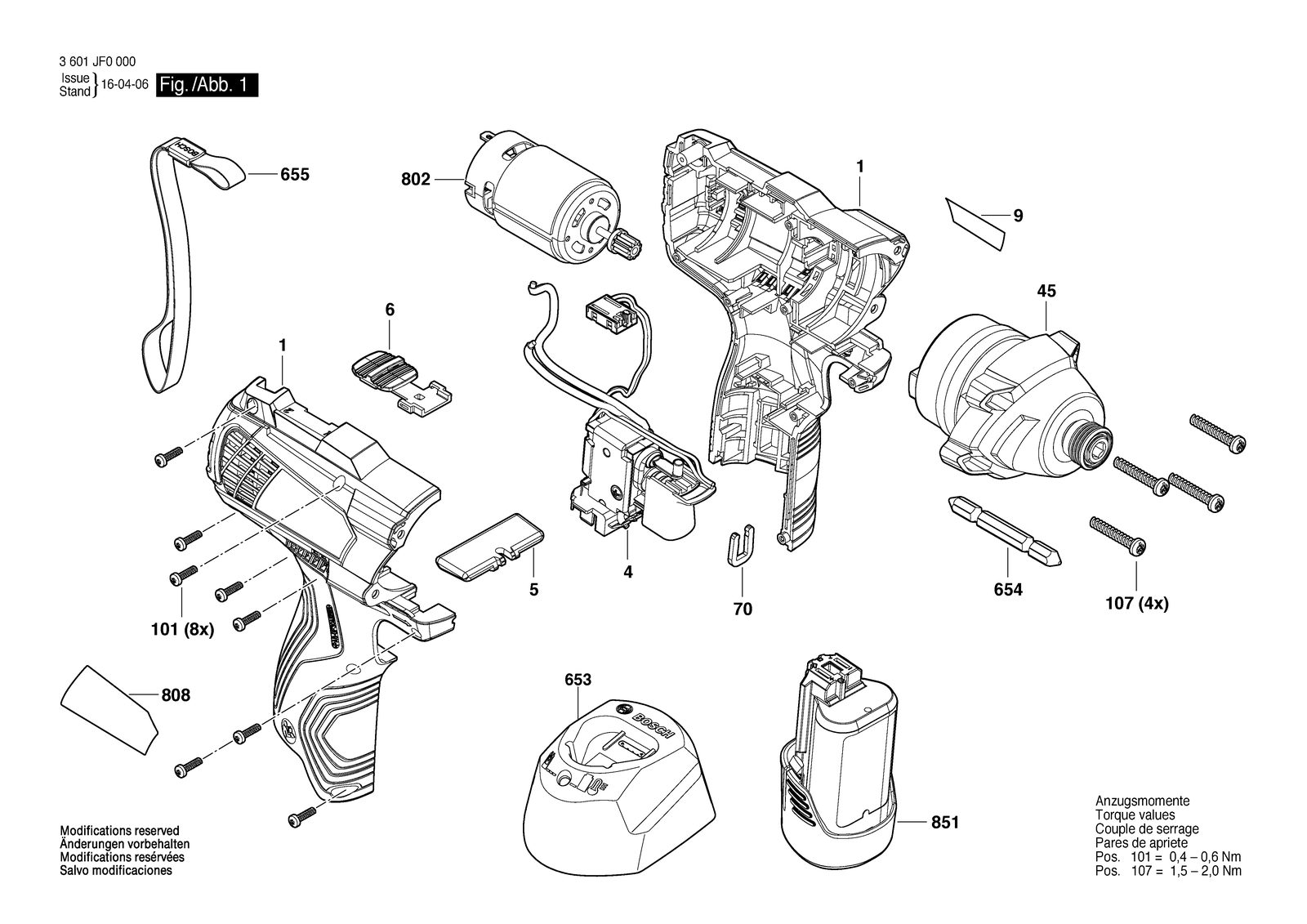

Bosch GDR 120-LI parts diagram, sheet 1
No.Part numberPart name
12609101534Housing
1012609110883Screw
1072609110327Screw
42607202312Electronics Module
451600A024GRGear Box
452609199824Gear Box
52609100698Button
62609101661Switchover Unit
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226189Fast Charger Gb GAL 12V-20 230/3,6-12V 2A
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226201Fast Charger Br GAL 12V-20, 127V-220V
6532607226203Fast Charger GAL 12V-20 220V/12V/2A
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607226535Fast Charger Ind GAL 12V-40 230V 4A
6542609110342Screwdriver Blade
6552609170129Carrying Loop
702609110537Clip
8021600A00PE3Motor assembly
8021600A026X6Motor assembly
808160111A8MENameplate
808160111A8MFNameplate
808160111A8MGNameplate
808160111A8MHNameplate
8086082942CH2Nameplate
8511607A350C5Battery Pack GBA 12V 2.0AH LI Scm
8511607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
8511607A350DXBattery Pack Rla GBA 12V 1.5AH LI Scm
92609136058Nameplate GDR 120-LI
