Bosch GDR 12 V impact wrench: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDR 12 V: 43 positions on 1 sheet

Bosch GDR 12 V parts list (1 sheet)

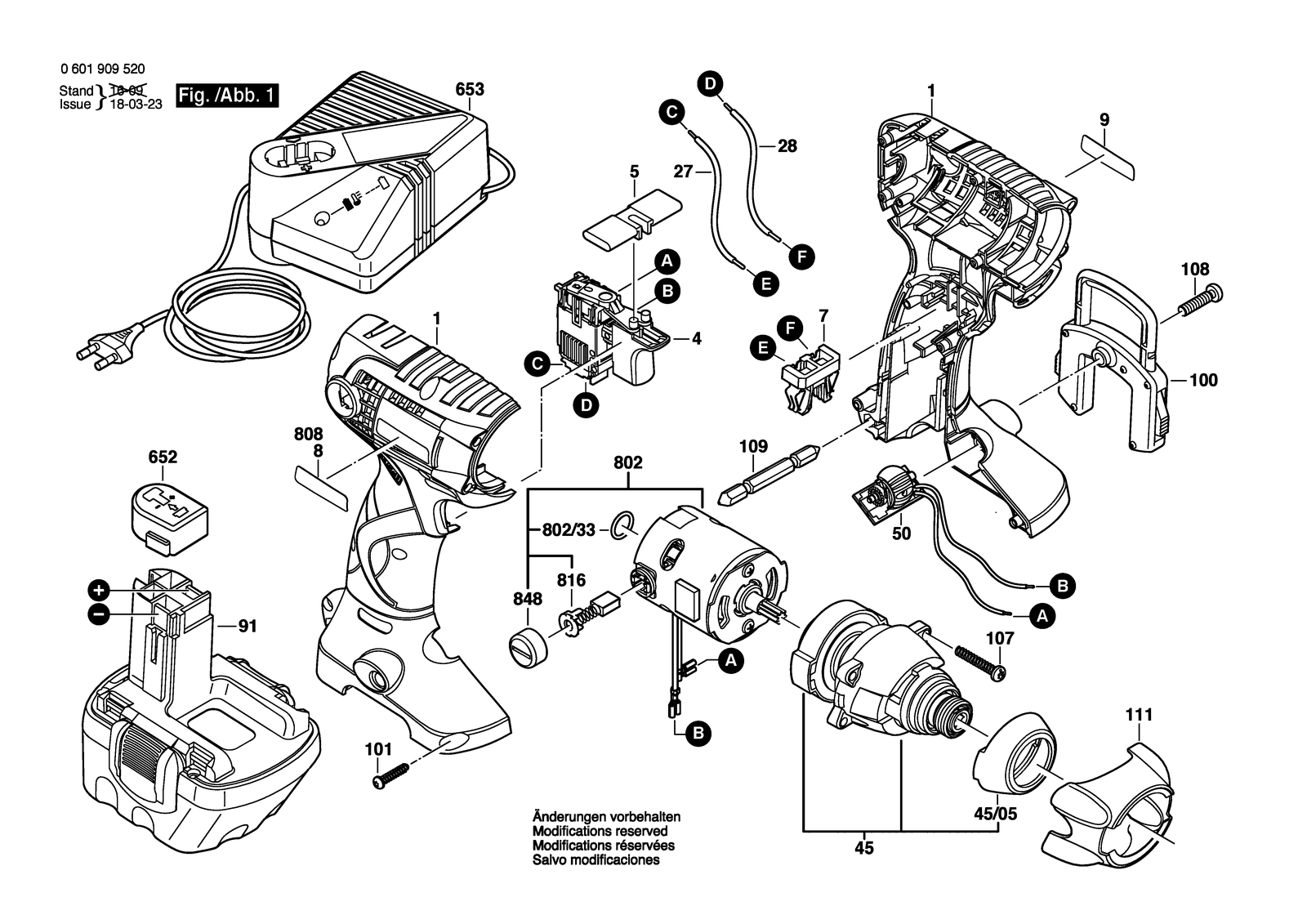

Bosch GDR 12 V parts diagram, sheet 1
No.Part numberPart name
12609100268Housing Blue
1002609199027Holder
1012609110201Torx Flat-Head Screw 3X16
1072609110327Screw
1082609110309Screw
1092609110342Screwdriver Blade
1112609100298Cover Flap Black
272609120146Connecting Cable Black 50 MM
282609120147Connecting Cable Red 60 MM
42607200489On-Off Switch
452609199161Gear Box
452609199195Gear Box
45/052609170025Protective Ring
52609100273Button
502609199069Light-Emitting-Diode
6522609100101Protective Cap
6532607224397Fast Charger USA 120/7,2-14,4V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224709Fast Charger RC 115/7,2-14,4V, 30 Min.
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
6532607225293Fast Charger CN 220/7,2-14,4V, 1H
72609100297Contact retainer
82609130815Nameplate GDR 12V, EU
82609130963Nameplate GDR 12V
8022609199046Motor 12V
802/332609170030O-Ring
8082609130896Nameplate GDR 12VN
8082609131652Nameplate
8162609199048Carbon-Brush Set
8482609199049Sealing cap
92609130717Manufacturer's nameplate GDR 12V
92609130895Manufacturer's nameplate GDR 12 Vn
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
912607335683Battery Pack 12V,2,6AH,NIMH
912607335691Slide-In Accu Package 12V,3,0AH, Nimh
912607335741Slide-In Accu Package 12V, 2,0AH,NICD
