Bosch GDR 10,8 V-LI parts list (1 sheet)

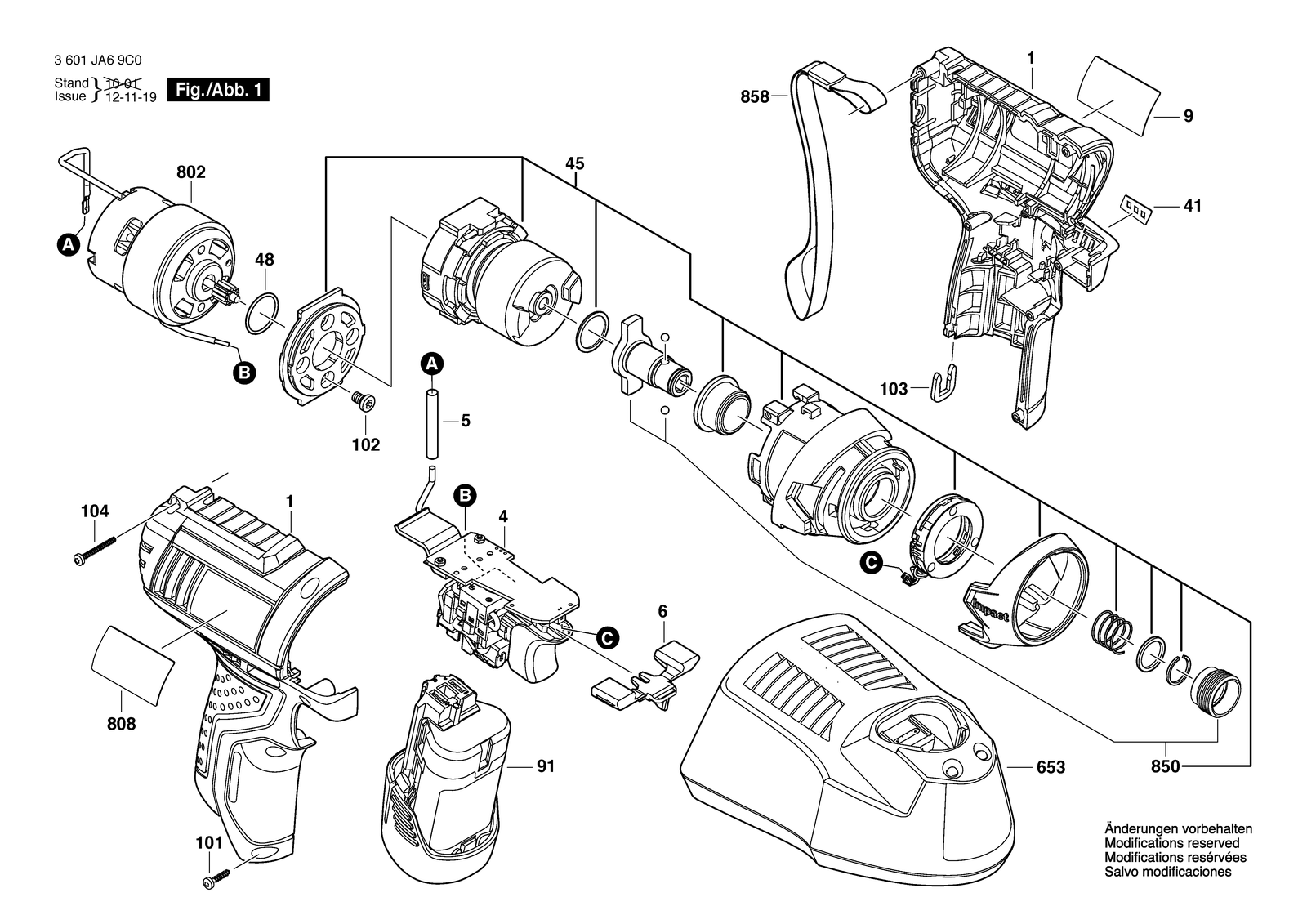

Bosch GDR 10,8 V-LI parts diagram, sheet 1
No.Part numberPart name
12609100816Housing Blue
12609100816Housing Blue
1012609110883Screw
1012609110883Screw
1022609110950Torx Flat-Head Screw
1022609110950Torx Flat-Head Screw
1032609110537Clip
1032609110537Clip
1042609110991Pan head screw
1042609110991Pan head screw
416072335DDElectronics Module
416072335DDElectronics Module
412609132846Sticker
412609132846Sticker
452609199241Gear Box
452609199216Gear Box
452609199241Gear Box
482609170121Seal Ring
482609170121Seal Ring
52609170134Shrinkable Tube
52609170134Shrinkable Tube
62609100817Adjusting Slide
62609100817Adjusting Slide
6532607225139Fast Charger Usa/can 120/10,8-12V/30 Min.
6532607225519Fast Charger USA 120/3,6-10,8V,1H
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225137Fast Charger AUS 240/10,8V
6532607225141Fast Charger SAM 115/10,8V, 30 Min.
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607225145Fast Charger ROK 230/10,8V, 30 Min.
6532607225303Fast Charger CN 220/10,8V, 30 Min.
6532607225527Fast Charger BR 220/3,6-10,8V, 1H
6532607225531Fast Charger BR 127/3,6-10,8V, 1H
6532607225711Fast Charger ARG 220/10,8V
6532607225713Fast Charger BR 127/10,8V
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6532607226105Fast Charger Gb GAL 1230 CV 230/12V
6532607226139Charger set Aus GAL 1230 CV 240/12V
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226201Fast Charger Br GAL 12V-20, 127V-220V
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607226219Fast Charger EU GAL 12V-40
8022609199281DC motor 10,8V
8022609199281DC motor 10,8V
8082610007736Nameplate
8081600A00YF9Nameplate
8081600A00ZE2Nameplate
808160111A4FJNameplate
8082609132449Nameplate
8082609132453Nameplate
8082609132457Nameplate
8082609132459Nameplate
8082609132461Nameplate
8082609132778Nameplate
8082609135286Nameplate
8502609199320Coupling Half
8502609199319Coupling Half
8502609199320Coupling Half
8582609170129Carrying Loop
8582609170129Carrying Loop
92610007734Manufacturer's nameplate Litihum-Ion 12V
9160111C1LVManufacturer's nameplate GDR 12V-105
92609132462Manufacturer's nameplate GDR 10,8-LI
9F00062107HManufacturer's nameplate GDR 12-LI
911607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
912607337237Battery Pack BAT 415 10,8V712V 2,5AH
911607A35049Battery Pack 12V, 2,5AH, LI Gba
911607A350C5Battery Pack GBA 12V 2.0AH LI Scm
911607A350C7Battery Pack Rok GBA 10,8V 2.0AH O-b
911607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
912607336663Slide-In Accu Package 10,8V, 1,3AH, LI
912607337237Battery Pack BAT 415 10,8V712V 2,5AH
