Bosch GDM 13-34
Bosch GDM 13-34 marble saw: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

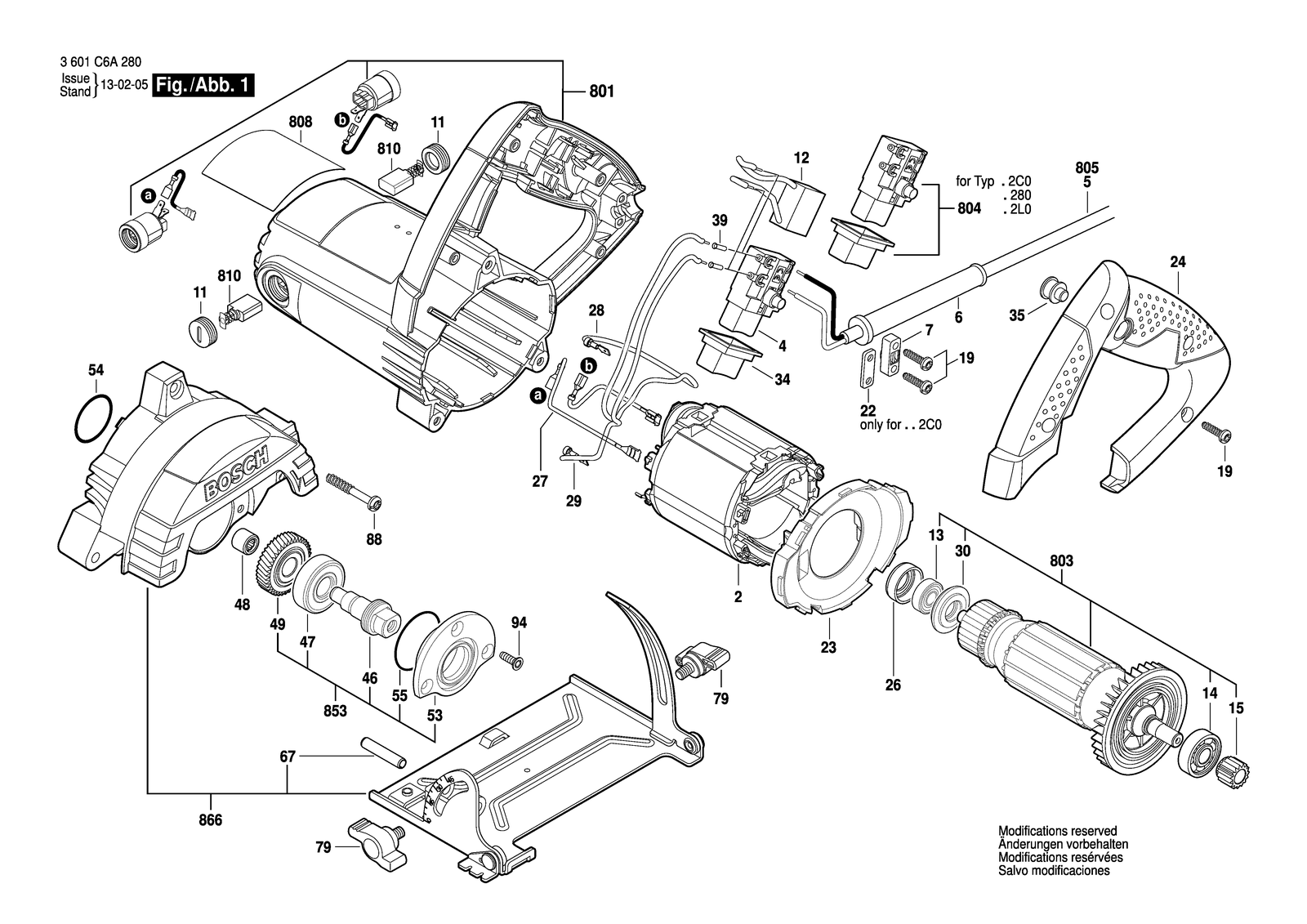

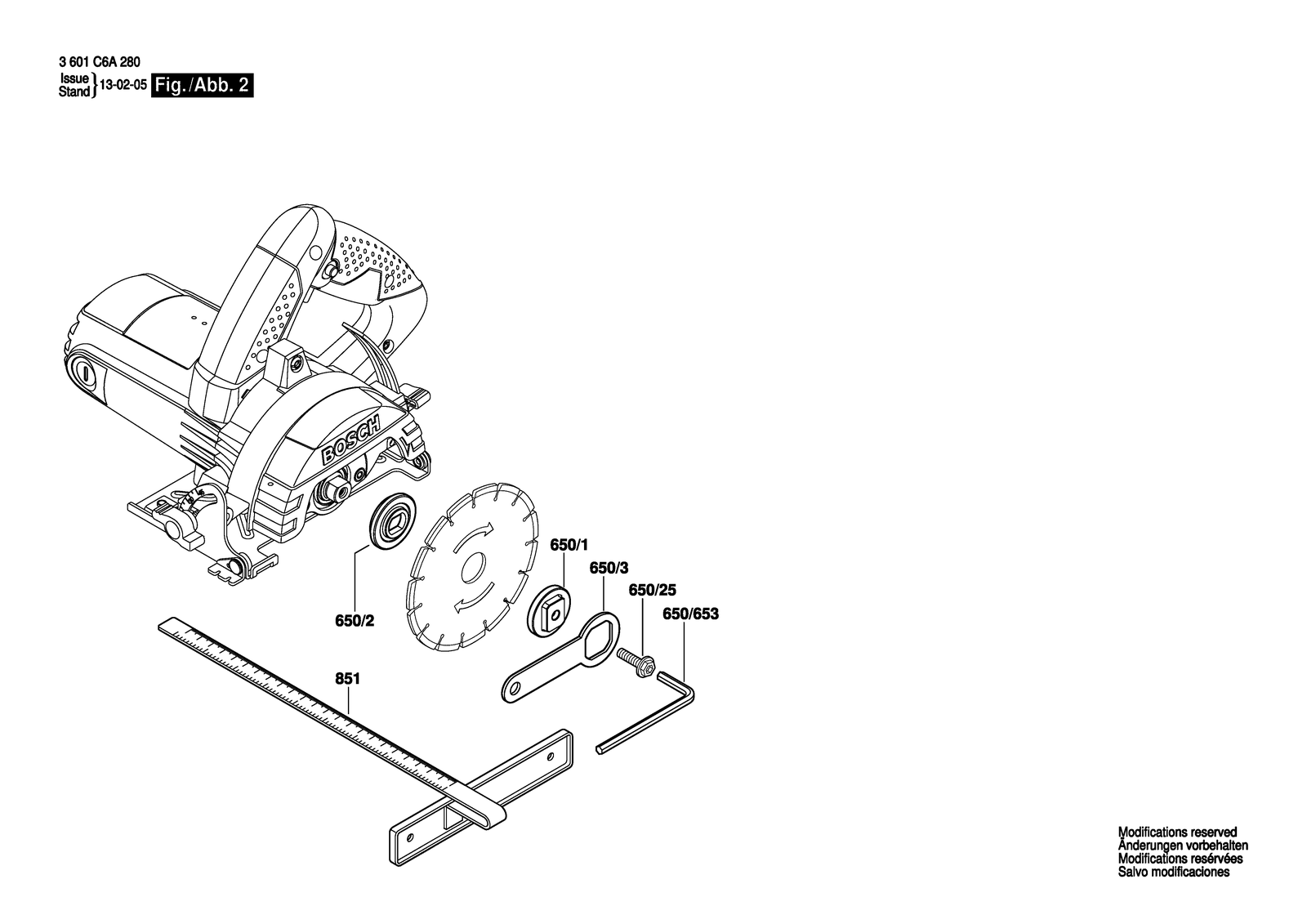

All parts of Bosch GDM 13-34: 58 positions on 2 sheets
Bosch GDM 13-34 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619P06286 | Insulating Cap |
| 12 | 1619P06277 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1619P00290 | Groove ball bearing |
| 15 | F000618002 | Cylindrical Gear |
| 19 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1619P05323 | Field 115V |
| 2 | 1619P08588 | Field 230V |
| 22 | 1611035007 | Cable Clip |
| 23 | 1619P06288 | Air-Deflector Ring |
| 24 | 1619P06289 | Handle Cover |
| 26 | 1619P06227 | Rubber Ring |
| 27 | 1619P07060 | Connecting Cable |
| 28 | 1619P06291 | Connecting Cable |
| 29 | 1619P06292 | Connecting Cable |
| 30 | 1619P04476 | Sealing disk |
| 34 | 1619P00254 | Protection cover |
| 35 | 1619P06293 | Protecting Cover |
| 39 | 1619P07448 | Connecting terminal |
| 46 | F000619026 | Spindle |
| 47 | 1619P00352 | Groove ball bearing |
| 48 | 1600200029 | Plain bearing |
| 49 | F000617024 | Cylindrical Gear |
| 5 | 1604460256 | Power supply cord CN 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 1619P07459 | Power supply cord J 2,50M 2 X 2,00MM Pvc |
| 5 | 2604460168 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 53 | 1619P07061 | Bearing Flange |
| 54 | F000640007 | O-Ring |
| 55 | F000640008 | O-Ring |
| 6 | 1619P07460 | Grommet |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/1 | 1619P06295 | Washer |
| 650/2 | 1619P06296 | Retaining Washer |
| 650/2 | 1619P07057 | Retaining Washer |
| 650/25 | 1619P00278 | Hex Screw |
| 650/3 | 1619P00281 | Chuck Wrench |
| 650/653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 67 | 2917760156 | Slotted Spring Pin 6X32 DIN 1481 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 79 | 1619P06316 | Wing Screw |
| 801 | 1619P07455 | Housing Set |
| 803 | 1619P06303 | Armature set 230V |
| 803 | 1619P06950 | Armature set 110V |
| 804 | 1619P09074 | Switch |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 1619P06951 | Nameplate |
| 808 | 1619P06953 | Nameplate |
| 808 | 1619P06955 | Nameplate |
| 808 | 1619P31413 | Nameplate |
| 810 | 1619P06304 | Carbon-Brush Set |
| 851 | 1619P07059 | Mitre Fence |
| 853 | 1619P07457 | Spindle Assembly |
| 866 | 1619P07458 | Gear Housing |
| 866 | 1619P08845 | Gear Housing |
| 88 | 1619P06301 | Torx Oval-Head Screw 5X38 |
| 94 | 1619P07062 | Thread-Forming Screw |
