Bosch GDM 121 marble saw: exploded parts diagram, 2 sheets, 55 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDM 121: 55 positions on 2 sheets

Bosch GDM 121 parts list (2 sheets)

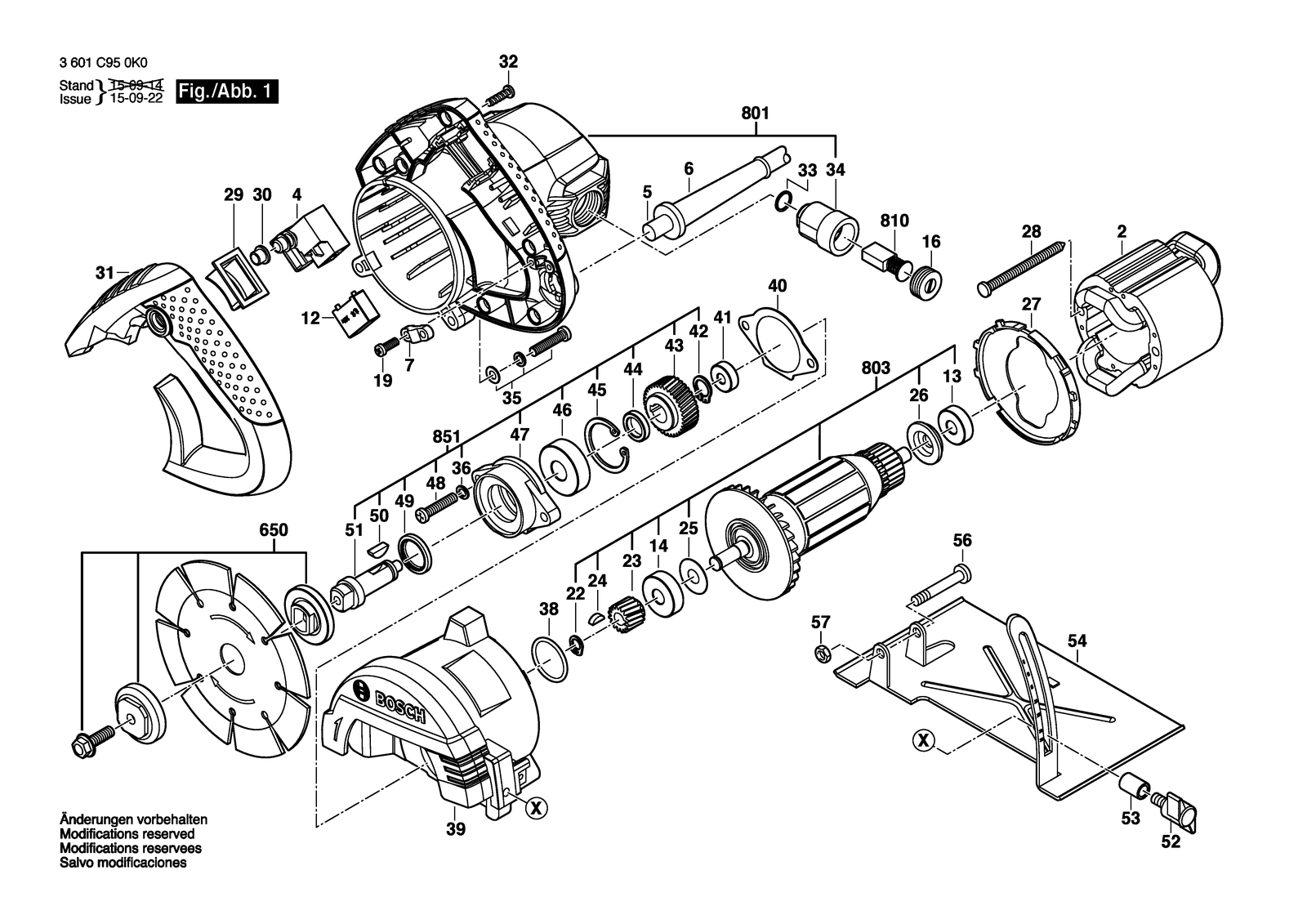

Bosch GDM 121 parts diagram, sheet 1Bosch GDM 121 parts diagram, sheet 2
No.Part numberPart name
121619PA6211Suppression Filter
131619PA3414Groove ball bearing
141619PA3415Groove ball bearing
161619PA3416Insulating Cap
191619PA3417Torx Oval-Head Screw
21619PA7559Field 220V
221619PA3418Retainer
231619PA4646Pinion
241619PA3420Woodruff Key
251619PA3421Washer
261619PA3422Sealing washer
271619PA7572Air-Deflector Ring
281619PA3424Tapping Screw
291619PA7591Protecting Cover
301619PA7592Protecting Cover
311619PA7573Handle Cover
321619PA7574Tapping Screw
331619PA3429Extension Spring
341619PA3430Carbon Brush Holder
351619PA7575Pan head screw
361619PA3432Spring Washer
381619PA3434O-Ring
391619PA7589Gear Housing
41619PA7561Switch
401619PA3436Mat seal
411619PA3437Groove ball bearing
421619PA3438Ring
431619PA4645Conversion Gear
441619PA8030Spacer Ring
451619PA3441Retainer
461619PA3442Groove ball bearing
471619PA3443Bearing Flange
481619PA3444Hex Screw
491619PA3445Seal
51619PA9240Power supply cord
51619PA9250Power supply cord
501619PA3446Woodruff Key
511619PA8029Spindle
521619PA6216Wing Screw
531619PA3449Spacer Ring
541619PA7576Base Plate
561619PA8027Pan head screw
571619PA8028Nut
61619PA7566Grommet
6501619PA6709Flange
71619PA3406Cable Clip
8011619PA7587Housing Set
8031619PA9243Armature set 220V
8101619PA4025Carbon-Brush Set
8511619PA8032Spindle Assembly
8551619P00260Hose
8561619P00261Hose Coupling
8571619P00271Water-Drainage Valve
8581619P00063Screw
8591619P00064Retaining ring
