Bosch GDM 12-34
Bosch GDM 12-34 marble saw: exploded parts diagram, 2 sheets, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

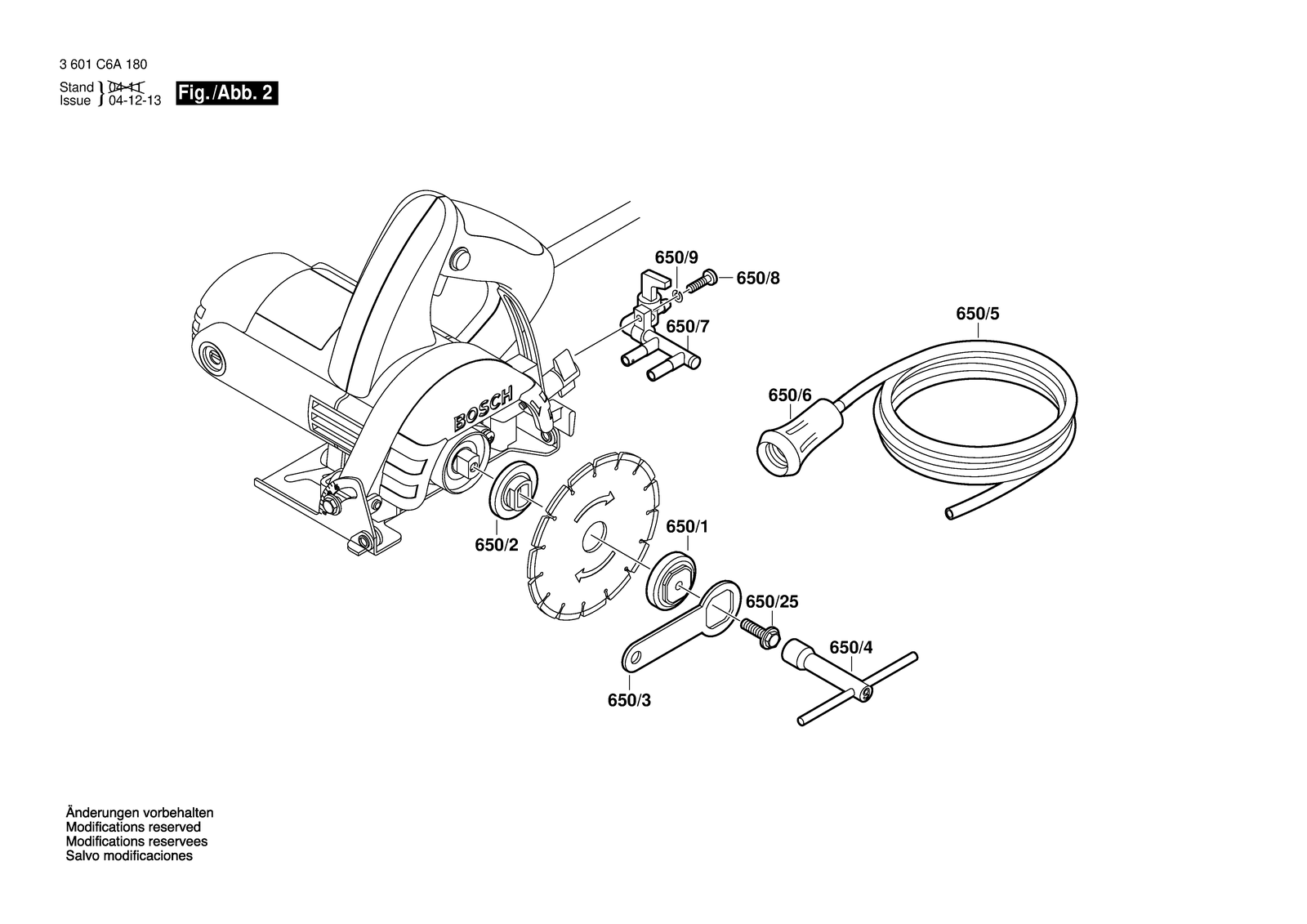

All parts of Bosch GDM 12-34: 78 positions on 2 sheets
Bosch GDM 12-34 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619P00269 | Cover |
| 12 | 1619P00252 | Condenser |
| 17 | 1619P00263 | Wing Screw |
| 18 | 1619P00276 | Screw |
| 180 | 1619P00292 | Warning Plate |
| 180 | 1619P01008 | Sticker |
| 19 | 2603435071 | Headless Screw 65 MM |
| 2 | 1619P00437 | Field 115V |
| 2 | 1619P01021 | Field 230-240V |
| 2 | 1619P01044 | Field 240V |
| 20 | 1619P00104 | Torx Oval-Head Screw |
| 21 | 1619P00029 | Screw |
| 22 | 1619P00298 | Screw |
| 23 | 1619P00296 | Spring Washer |
| 24 | 1619P00297 | Plain Washer |
| 26 | 1619P00041 | Hex Socket Head Cap Screw |
| 27 | 1619P00824 | Wing Screw |
| 28 | 1619P00259 | Cover Grid |
| 3 | 1619P00439 | Armature set 115 |
| 3 | 1619P00962 | Armature set 230-240V |
| 30 | 1619P00751 | Handle |
| 31 | 1619P00753 | Cap-Handle |
| 32 | 1619P00752 | Air-Deflector Ring |
| 33 | 1619P01300 | Spindle Assembly |
| 34 | 1619P00254 | Protection cover |
| 35 | 1619P00255 | Protection cover |
| 36 | 1619P00264 | Cylinder Sleeve |
| 37 | 2917761159 | Spring Pin |
| 38 | 1619P00279 | Rubber Bushing |
| 39 | 1619P00323 | Connecting terminal |
| 4 | 1619P00436 | Switch |
| 41 | 1619P00244 | Sealing Unit |
| 42 | 1619P00253 | O-Ring |
| 5 | 1604460256 | Power supply cord CN 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460298 | Power supply cord GB 230V 2,65M 2X1 H05 Rn-F |
| 5 | 1604460313 | Power supply cord J 2,65M 2 X 1,25MM Rubber |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/1 | 1619P00238 | Shim ring |
| 650/1 | 1619P01041 | Shim ring |
| 650/2 | 1619P00239 | Supporting Disc |
| 650/2 | 1619P01042 | Supporting Disc |
| 650/25 | 1619P00278 | Hex Screw |
| 650/3 | 1619P00281 | Chuck Wrench |
| 650/4 | 1619P00282 | Hexagon Socket Screw Key |
| 650/5 | 1619P00260 | Hose |
| 650/6 | 1619P00261 | Hose Coupling |
| 650/7 | 1619P00271 | Water-Drainage Valve |
| 650/8 | 1619P00063 | Screw |
| 650/9 | 1619P00064 | Retaining ring |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 801 | 1619P00813 | Housing Set |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 1619P00819 | Nameplate |
| 808 | 1619P00820 | Nameplate |
| 808 | 1619P00821 | Nameplate |
| 808 | 1619P00822 | Nameplate |
| 808 | 1619P00823 | Nameplate |
| 810 | 1619P01033 | Carbon-Brush Set |
| 829 | 1619P01031 | Gear Housing |
| 850 | 1619P00289 | Groove ball bearing |
| 851 | 1619P00286 | Seal |
| 853 | 1619P00273 | Key |
| 854 | 1619P00290 | Groove ball bearing |
| 855 | 1619P00246 | Pinion |
| 856 | 1619P00294 | Retaining ring |
| 860 | 1619P00285 | Groove ball bearing |
| 861 | 1619P00295 | Retaining ring |
| 862 | 1619P00272 | Cylindrical Gear |
| 863 | 1619P00243 | Sleeve |
| 864 | 1619P00280 | Retaining ring |
| 865 | 1619P00287 | Washer |
| 866 | 1619P00352 | Groove ball bearing |
| 867 | 1619P00241 | Seal Ring |
| 868 | 1619P00277 | Key |
| 869 | 1619P01040 | Spindle |
| 870 | 1619P00488 | Flange |
