Bosch GDM 12-34

Bosch GDM 12-34 marble saw: exploded parts diagram, 2 sheets, 56 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDM 12-34: 56 positions on 2 sheets

Bosch GDM 12-34 parts list (2 sheets)

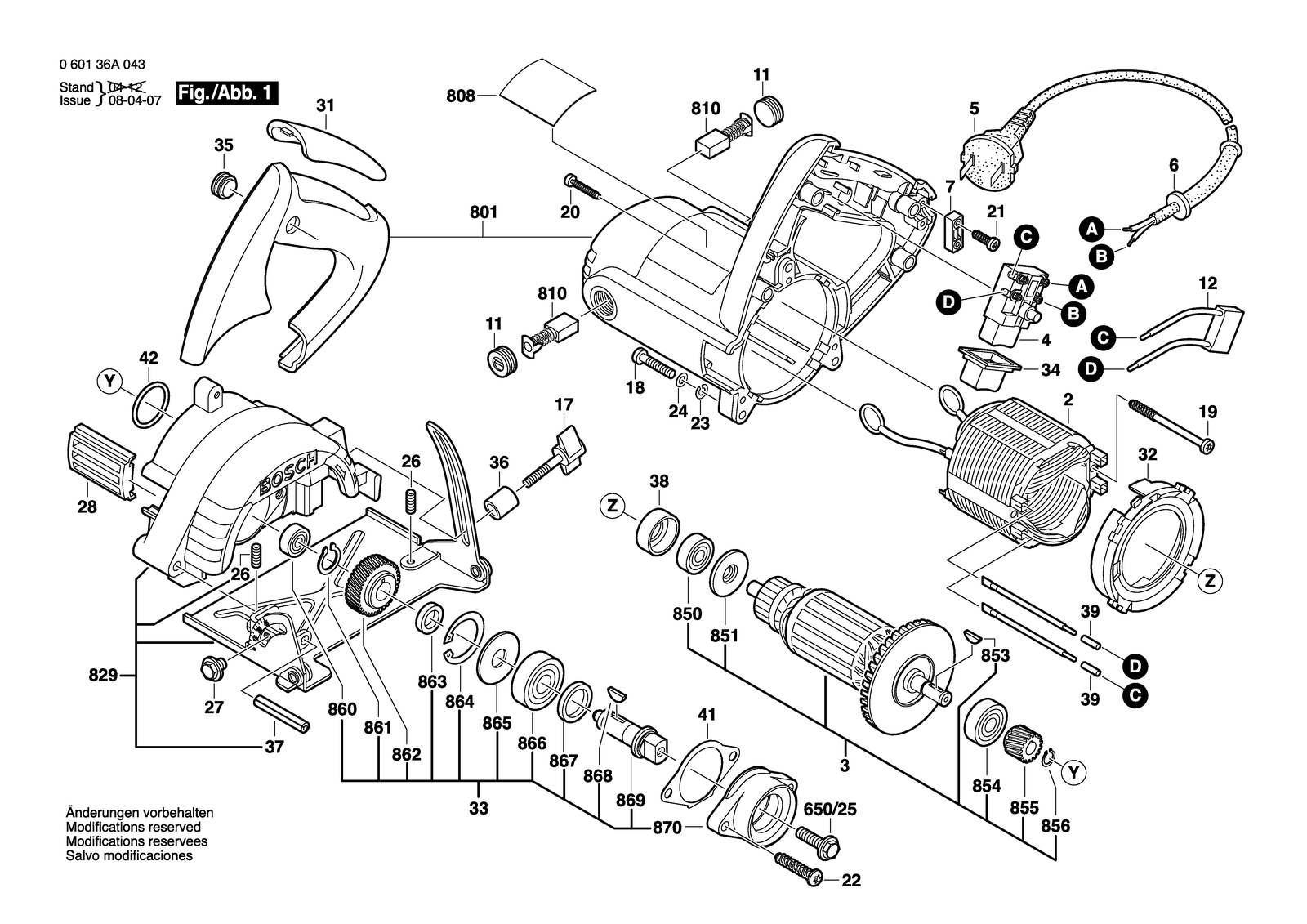

Bosch GDM 12-34 parts diagram, sheet 1Bosch GDM 12-34 parts diagram, sheet 2
No.Part numberPart name
111619P00269Cover
121619P00252Condenser
171619P00263Wing Screw
181619P00276Screw
192603435071Headless Screw 65 MM
21619P01021Field 230-240V
201619P00104Torx Oval-Head Screw
211619P00029Screw
221619P00298Screw
231619P00296Spring Washer
241619P00297Plain Washer
261619P00041Hex Socket Head Cap Screw
271619P00046Hex Screw
281619P00259Cover Grid
31619P00962Armature set 230-240V
311619P00257Cap-Handle
321619P00247Air-Deflector Ring
331619P00236Spindle Assembly
341619P00254Protection cover
351619P00255Protection cover
361619P00264Cylinder Sleeve
372917761159Spring Pin
381619P00279Rubber Bushing
391619P00323Connecting terminal
41619P00436Switch
411619P00244Sealing Unit
421619P00253O-Ring
51604460256Power supply cord CN 2,65M 2 X 1,0MM H05 Rn-F
62600703012Grommet Ø6,5-Ø6,9X95 MM
650/11619P00238Shim ring
650/21619P00239Supporting Disc
650/251619P00278Hex Screw
650/31619P00281Chuck Wrench
650/41619P00282Hexagon Socket Screw Key
72601035001Cable Clip
8011619P06569Housing Set
8081619P00589Nameplate
8101619P01033Carbon-Brush Set
8291619P06569Housing Set
8501619P00289Groove ball bearing
8511619P00286Seal
8531619P00273Key
8541619P00290Groove ball bearing
8551619P00246Pinion
8561619P00294Retaining ring
8601619P00285Groove ball bearing
8611619P00295Retaining ring
8621619P00272Cylindrical Gear
8631619P00243Sleeve
8641619P00280Retaining ring
8651619P00287Washer
8661619P00352Groove ball bearing
8671619P00241Seal Ring
8681619P00277Key
8691619P01040Spindle
8701619P00488Flange
