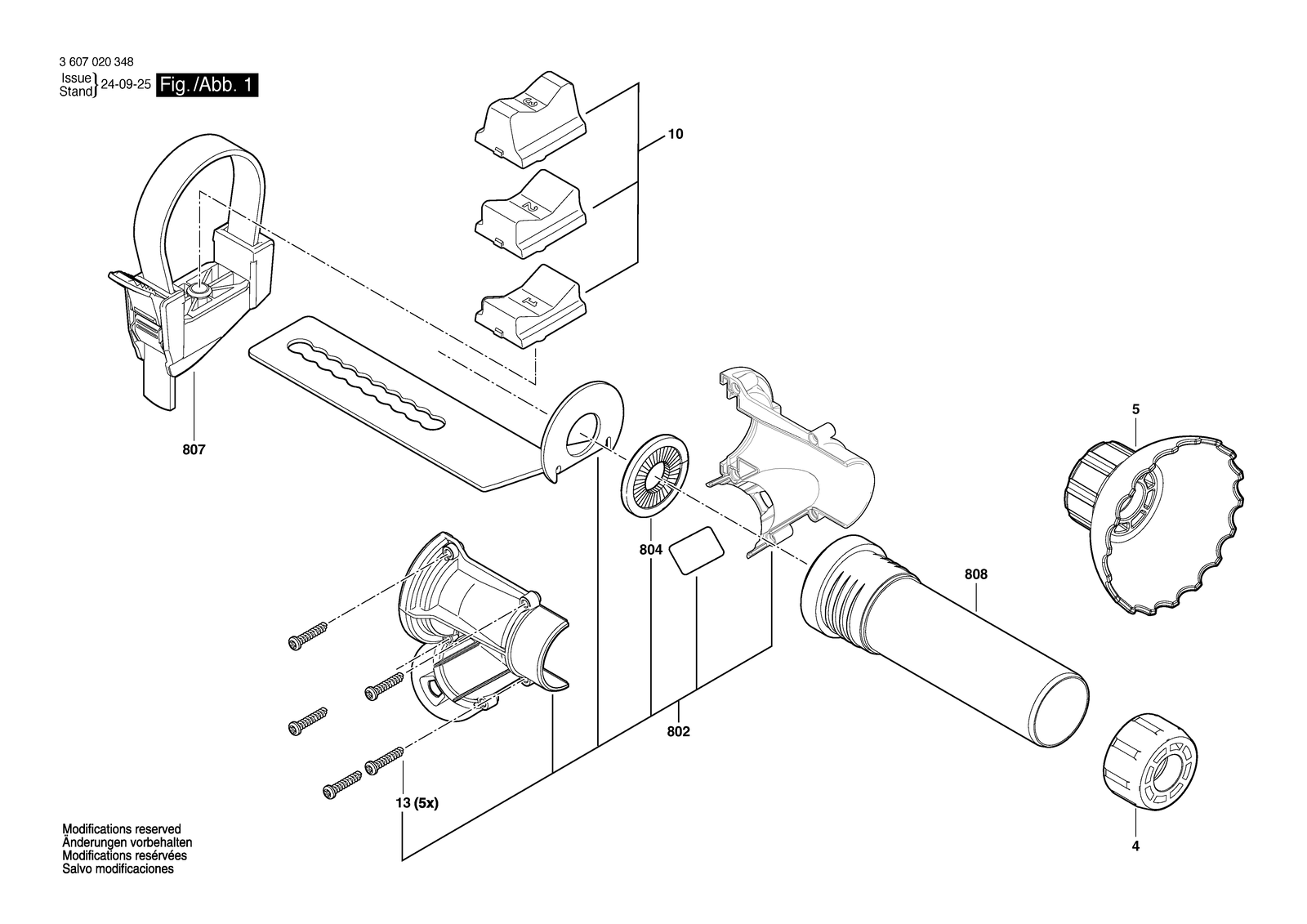

Bosch GDE max dust extraction: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE max: 9 positions on 1 sheet
Bosch GDE max parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1600A001W1 | V-Block |
| 13 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 4 | 1600A0021Y | Sleeve |
| 5 | 1607000F8R | Dust Cap |
| 802 | 16058066T0 | Housing |
| 802 | 16058066T1 | Housing |
| 804 | 1600A001LX | Brush Bar |
| 807 | 1600A001R9 | Support clamp |
| 808 | 1600A001LZ | Tube |
