Bosch GDE hex

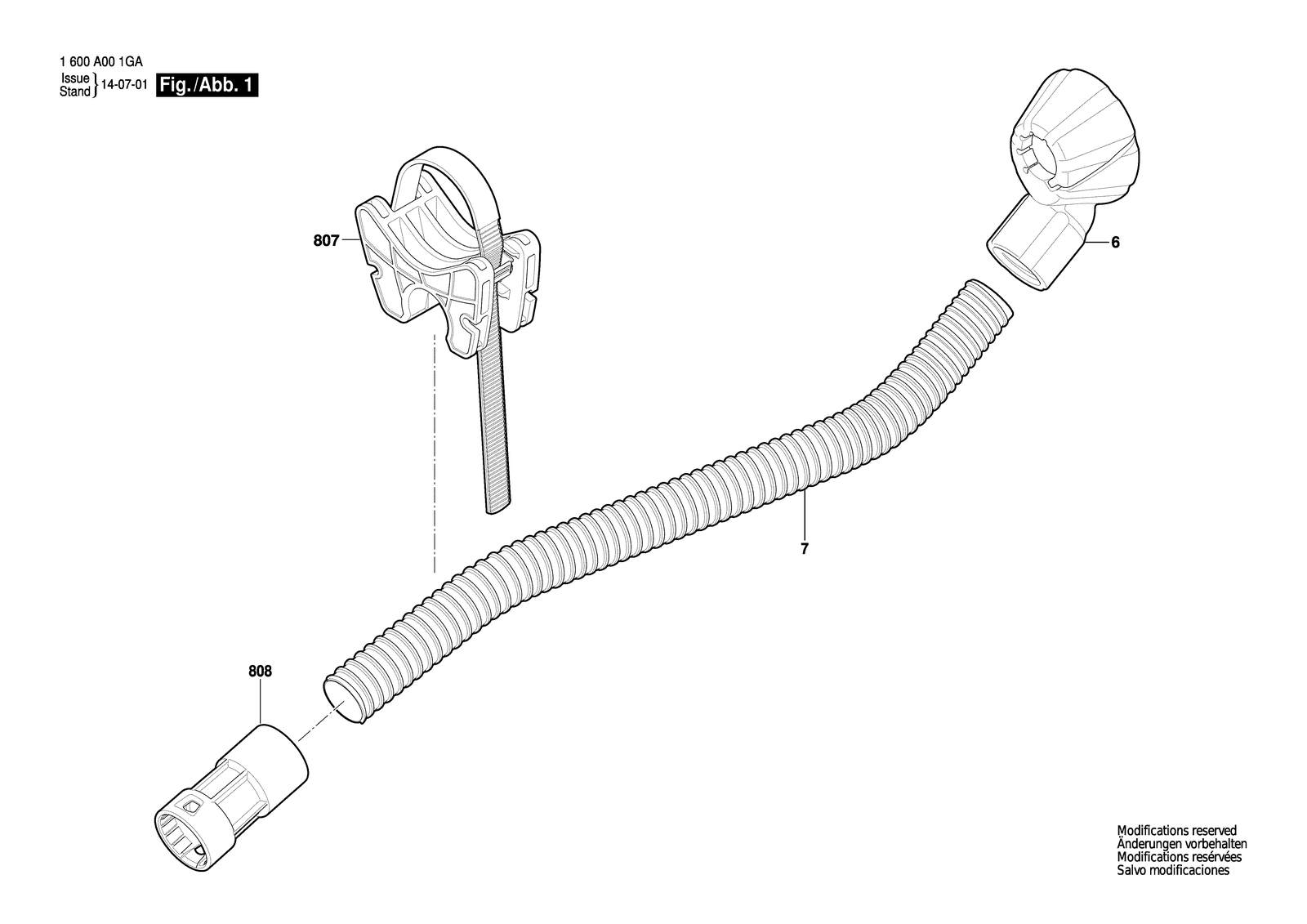

Bosch GDE hex dust extraction: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE hex: 8 positions on 1 sheet
Bosch GDE hex parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 6 | 1600A00228 | Exhaust bell |
| 6 | 1600A00228 | Exhaust bell |
| 7 | 1600A00229 | Hose |
| 7 | 1600A00229 | Hose |
| 807 | 1600A003DV | Support |
| 807 | 1600A003DV | Support |
| 808 | 1600A003DW | Adapter |
| 808 | 1600A003DX | Adapter |
