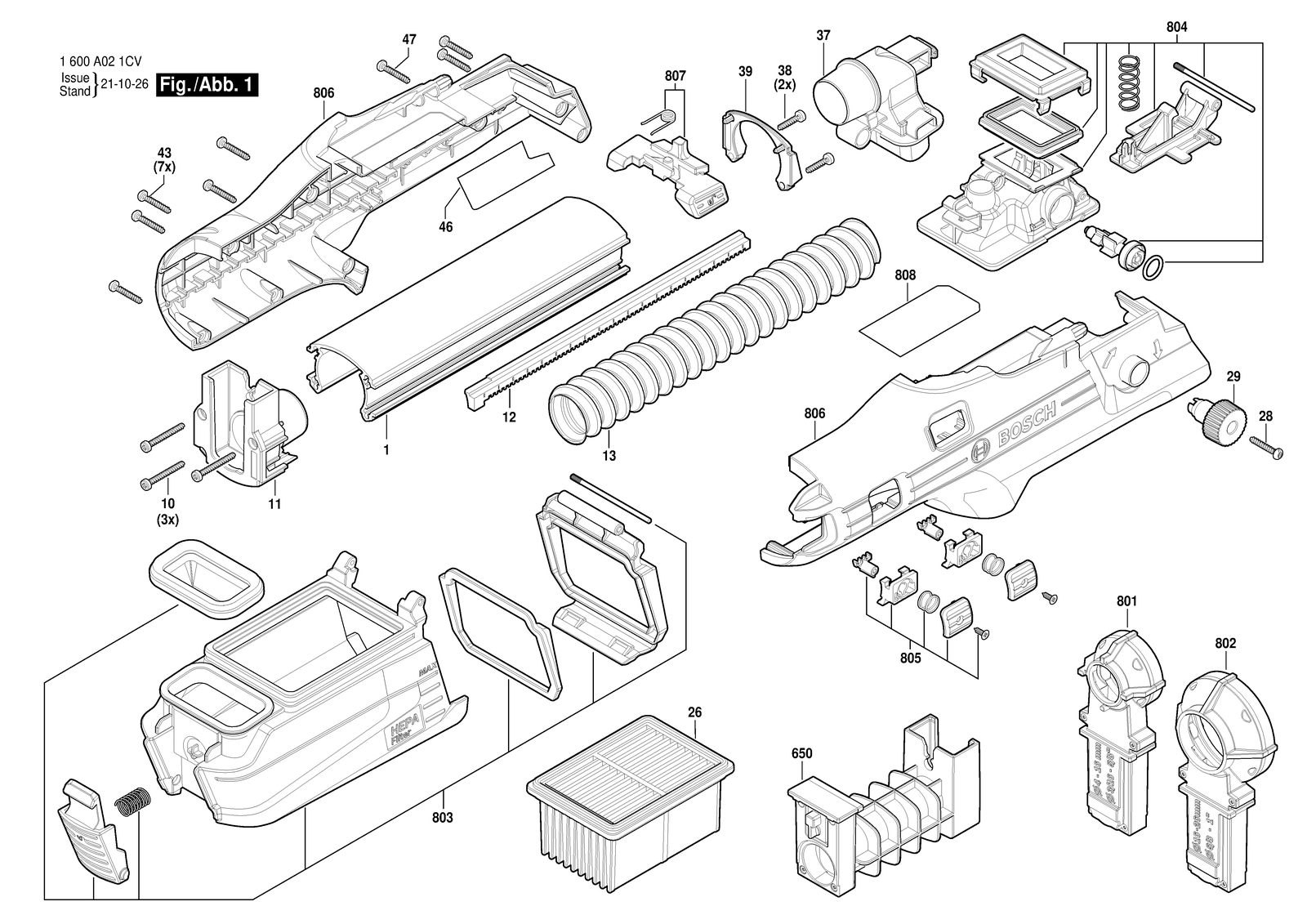

Bosch GDE 28 D dust extraction: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE 28 D: 23 positions on 1 sheet
Bosch GDE 28 D parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A00N0X | Tube |
| 10 | 160343507C | Torx Oval-Head Screw |
| 11 | 1600A00C3T | Angle Piece |
| 12 | 1600A00ZX7 | Rack |
| 13 | 1600A01B2N | Hose |
| 26 | 2608000717 | Filter |
| 28 | 2914201466 | Screw |
| 29 | 1600A01MT3 | Knob |
| 37 | 1600A00R3L | Elbow |
| 38 | 2914201466 | Screw |
| 39 | 1600A013DD | End cap |
| 43 | 2914201466 | Screw |
| 46 | 1619PB7169 | Label |
| 47 | 1619PB7392 | Screw |
| 650 | 1600A01E27 | Extension |
| 801 | 1600A01E28 | Socket Pipe |
| 802 | 1600A01E29 | Socket Pipe |
| 803 | 1619PB7434 | Box |
| 804 | 1619PB7435 | Holder |
| 805 | 1600A01E2A | Button |
| 806 | 1619PB7173 | Housing Set |
| 807 | 1619PB7180 | Block |
| 808 | 1619PB7428 | Nameplate |
