Bosch GDE 230 FC-S

Bosch GDE 230 FC-S suction hood: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE 230 FC-S: 20 positions on 1 sheet

Bosch GDE 230 FC-S parts list (1 sheet)

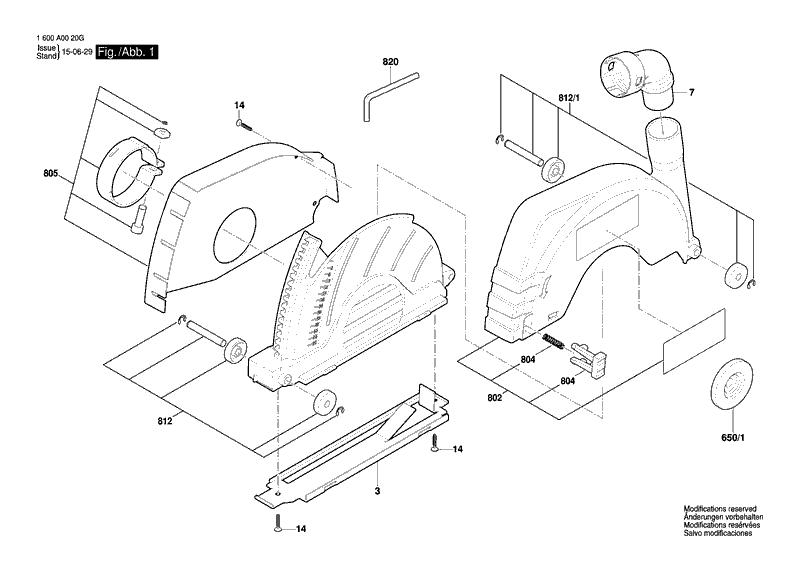

Bosch GDE 230 FC-S parts diagram, sheet 1
No.Part numberPart name
141603490A08Countersunk-Head Screw
141603490A08Countersunk-Head Screw
31600A00206Bottom panel
31600A00206Bottom panel
650/11600A003SNShim washer
650/11600A003SNShim washer
71600A0020XSuction Socket
71600A0020XSuction Socket
8021600A003TLCovering hood
8021600A003TMCovering hood
8041600A003TKPush-Button
8041600A003TKPush-Button
8051600A003TPCovering hood
8051600A003TRCovering hood
8121600A003TSWheel Set
8121600A003TSWheel Set
812/11600A003TTWheel Set
812/11600A003TTWheel Set
8201619P07612Hex Screw Driver
8201619P07612Hex Screw Driver
