Bosch GDE 18V-16 dust extraction: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE 18V-16: 27 positions on 1 sheet

Bosch GDE 18V-16 parts list (1 sheet)

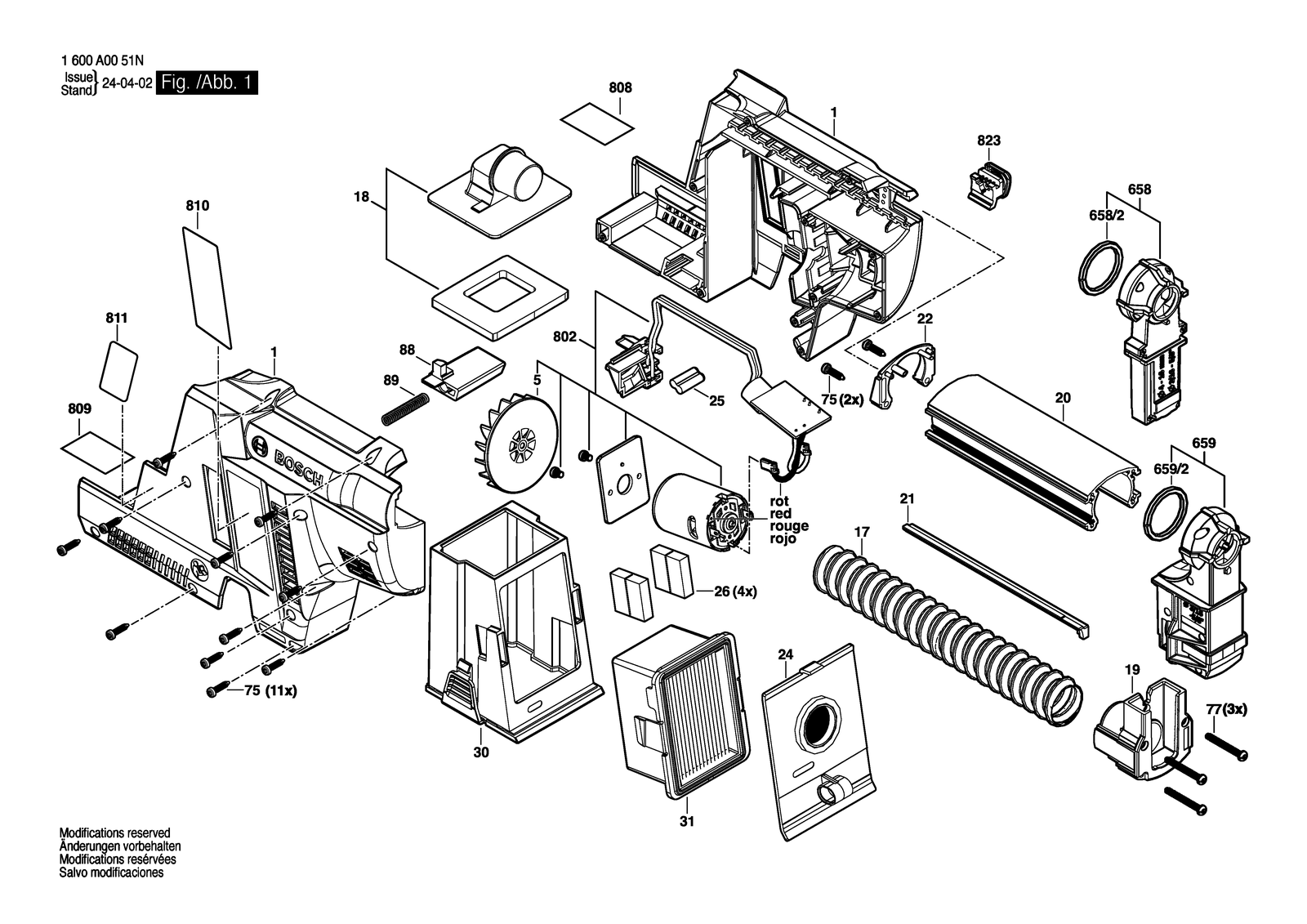

Bosch GDE 18V-16 parts diagram, sheet 1
No.Part numberPart name
116051082BGHousing Section
171600A006ZXHose
181600A00NF1Elbow
191600A00C3TAngle Piece
201600A006ZYAluminum Profile
211600A00C2JToothed rack
221600A013DDEnd cap
241600A00L5XCompensation unit
251600A0100KSeal Element
261600A0100LFilter Element
30160541101GDust container
312608000717Filter
5160661015KFan
6581600A00RV6Socket Pipe
658/21600A00D2RBrush Ø35MM
6591600A00RV7Socket Pipe
659/21600A00D2RBrush Ø35MM
751613490028Torx Oval-Head Screw
77160343507CTorx Oval-Head Screw
8021607000F1GDC motor
808160111A927Nameplate
809160111C2DVSticker
810160111C0WUWarning Plate Usa
811160111C0YPReference Plate Usa
8231619P50021Button
881600A006ZWPush-Button
891614611006Compression Spring
