Bosch GDE 16 plus dust extraction: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE 16 plus: 12 positions on 1 sheet

Bosch GDE 16 plus parts list (1 sheet)

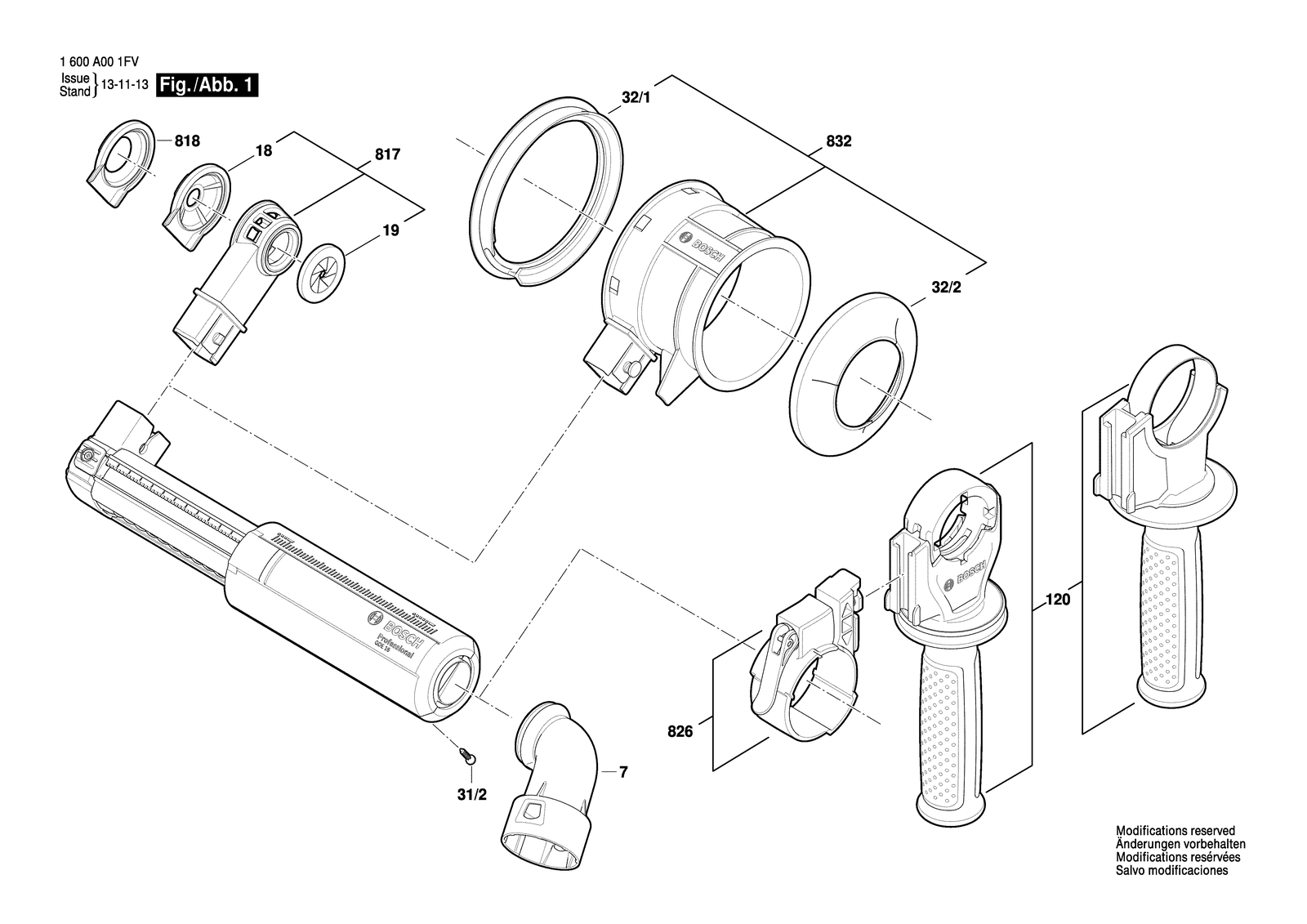

Bosch GDE 16 plus parts diagram, sheet 1
No.Part numberPart name
1201602025079Auxiliary Handle For GBH
120160202507AAuxiliary Handle For GSB
181600A001X5Seal
191619P02019Sealing cap
31/21613490028Torx Oval-Head Screw
32/11600A001K0Seal
32/2161550044SSealing cap
71600A001JNElbow
8171600A001PZSocket Pipe
8181600A001JWSeal
8261600A001R0Clamp
8321600A001FXAttachment
