Bosch GDE 125 EA-S

Bosch GDE 125 EA-S suction hood: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDE 125 EA-S: 27 positions on 1 sheet

Bosch GDE 125 EA-S parts list (1 sheet)

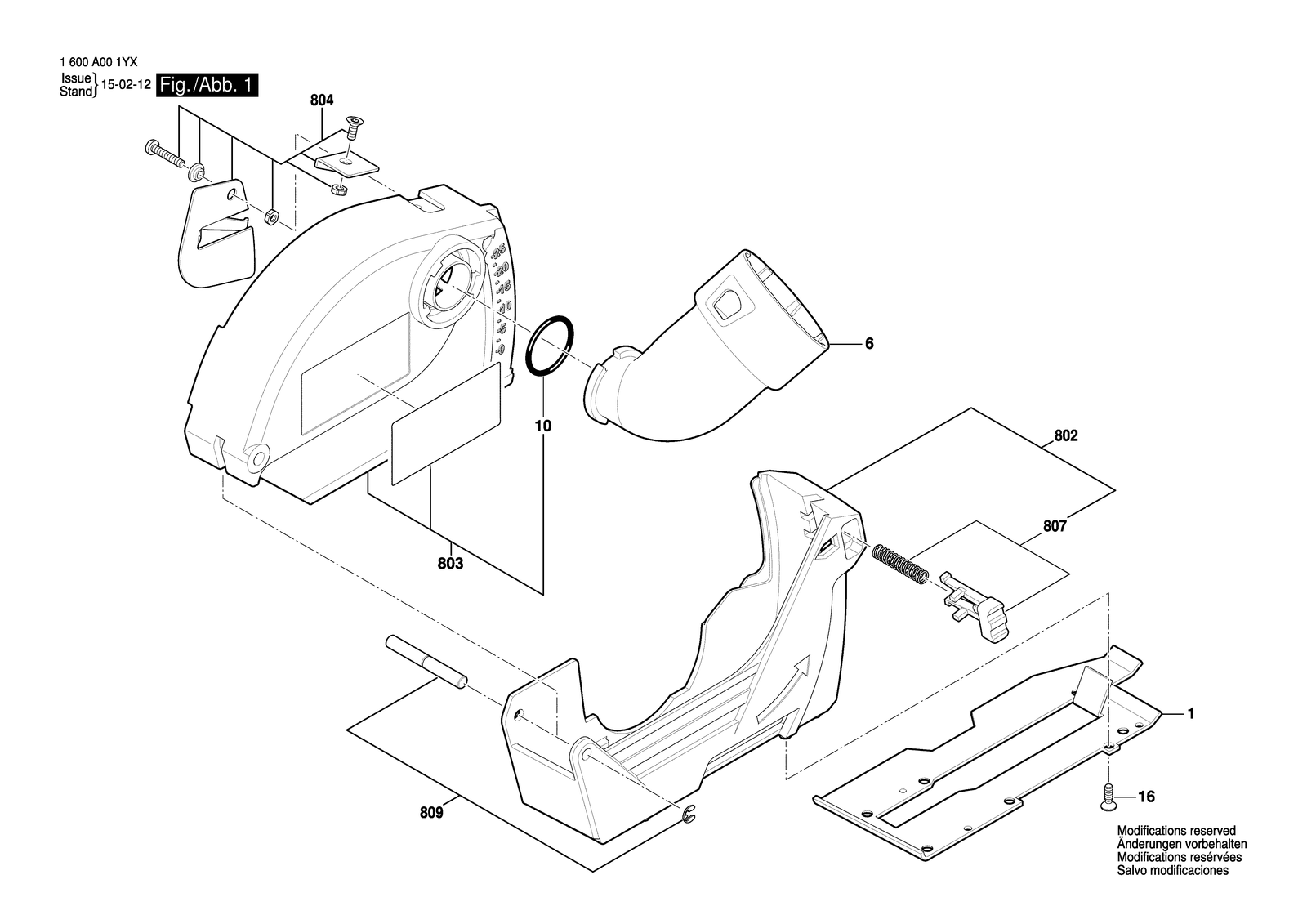

Bosch GDE 125 EA-S parts diagram, sheet 1
No.Part numberPart name
11600A001XWBase Plate
11600A001XWBase Plate
11600A001XWBase Plate
101600210057O-Ring
101600210057O-Ring
101600210057O-Ring
16160343000GScrew
16160343000GScrew
16160343000GScrew
61600A001Y0Suction Socket
61600A001Y0Suction Socket
61600A001Y0Suction Socket
802160580658DHousing
802160580658DHousing
802160580658EHousing
8031600A004G4Cover
8031600A004G5Cover
8031600A004G6Cover
8041600A004G7Fixation
8041600A004G7Fixation
8041600A004G7Fixation
8071600A004G9Push-Button
8071600A004G9Push-Button
8071600A004G9Push-Button
8091600A004GASwivelling Axis
8091600A004GASwivelling Axis
8091600A004GASwivelling Axis
