Bosch GDC 42 W

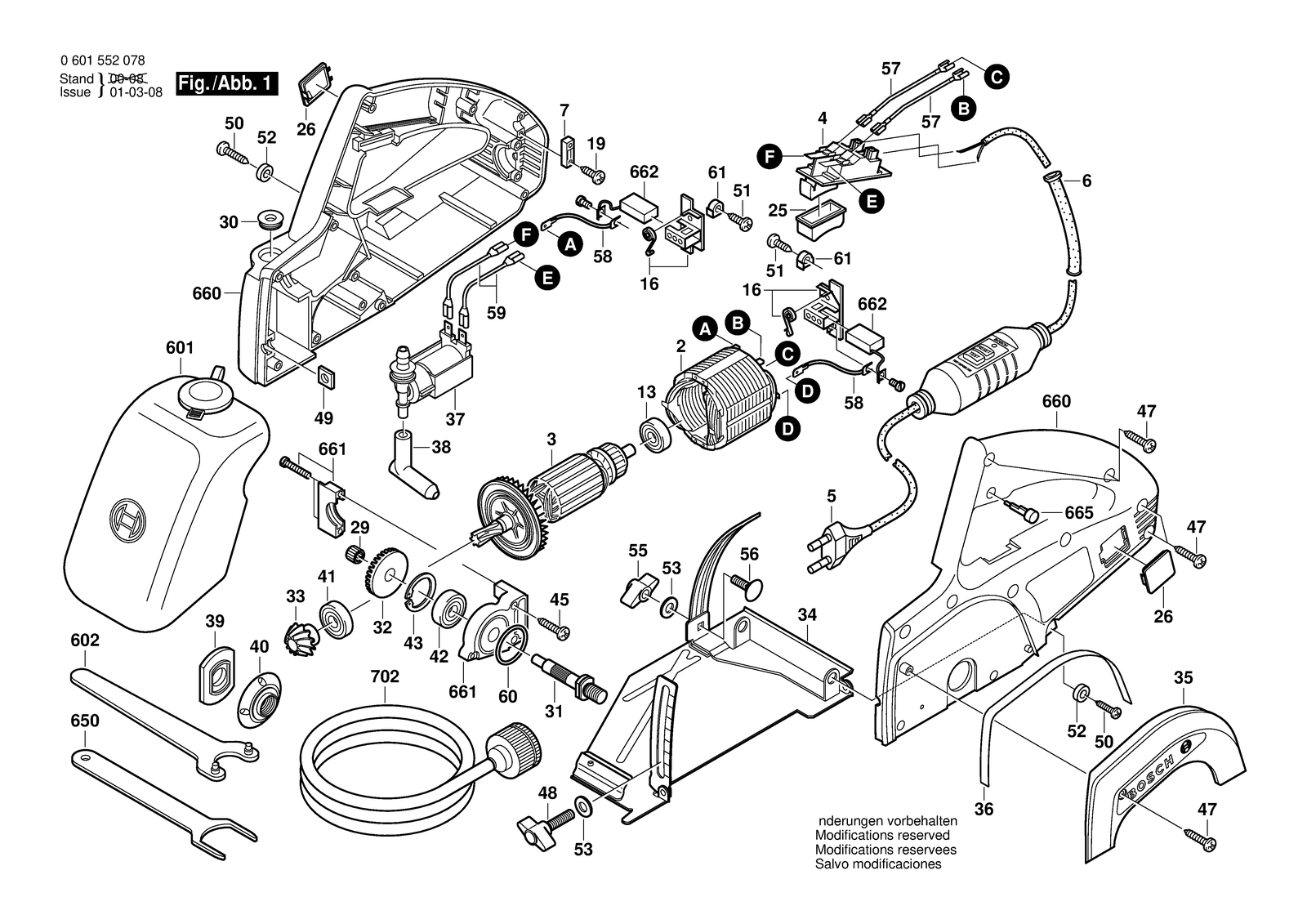

Bosch GDC 42 W marble saw: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDC 42 W: 58 positions on 1 sheet
Bosch GDC 42 W parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 9618089547 | Groove ball bearing |
| 16 | F000600113 | Brush Holder |
| 16 | F000600307 | Brush Holder |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | F000607062 | Field 127 V |
| 2 | F000607063 | Field 220 V |
| 2 | F000607070 | Field 220 V |
| 25 | 9618089343 | Protective Cover |
| 26 | 9618089345 | Brush-Cover |
| 29 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 3 | 9618089869 | Armature With Fan 110V |
| 3 | 9618089870 | Armature With Fan 220V |
| 3 | 9618089873 | Armature With Fan 220-240V |
| 30 | 9618089846 | Sealing disk |
| 31 | 9618089346 | Drilling Spindle |
| 32 | F000617000 | Crown Gear |
| 33 | F000618000 | Bevel Gear |
| 34 | F000600283 | Base Plate |
| 35 | 9618089351 | Protective Cover |
| 36 | 9618089352 | Housing Cover |
| 37 | 9618089847 | Parts Set |
| 37 | 9618089848 | Parts Set |
| 38 | 9618089849 | Adapter |
| 39 | 9618089850 | Supporting Disc |
| 39 | F000613003 | Supporting Disc |
| 4 | F000600562 | On-Off Switch |
| 40 | F000616000 | Round Nut |
| 41 | F000615004 | Groove ball bearing |
| 42 | 1600905006 | Groove ball bearing 12X32X10 |
| 43 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 45 | 9618087101 | Tapping Screw |
| 47 | 9618087099 | Screw 4X16 MM |
| 48 | F000600559 | Wing Screw |
| 49 | 2915120006 | Square Nut |
| 5 | F000600361 | Power supply cord |
| 5 | F000600362 | Power supply cord |
| 5 | F000600373 | Power supply cord |
| 50 | 9618089885 | Thread-forming tap. Screw |
| 51 | F000600540 | Parts Set |
| 52 | 9618089353 | Shim |
| 53 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 55 | 1603339006 | Wing Nut M6 |
| 56 | 1603434003 | Round-Head Bolt M6X16 MM |
| 57 | F000600144 | Connecting Cable |
| 58 | 9618089858 | Power supply cord |
| 59 | 9618089859 | Power supply cord |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 60 | 1900210130 | O-Ring 30X2 MM |
| 601 | 9618089852 | Parts Set |
| 602 | F000632017 | Gripping Wedge |
| 61 | F000600538 | Claw |
| 650 | 9618089854 | Clamping Disc |
| 660 | F000600299 | Parts Set |
| 661 | F000600300 | Parts Set |
| 662 | 9618086921 | Carbon-Brush Set |
| 665 | F000600907 | Parts Set |
| 7 | F000635217 | Cable Clip |
| 702 | 9618089316 | Parts Set |
