Bosch GDC 34

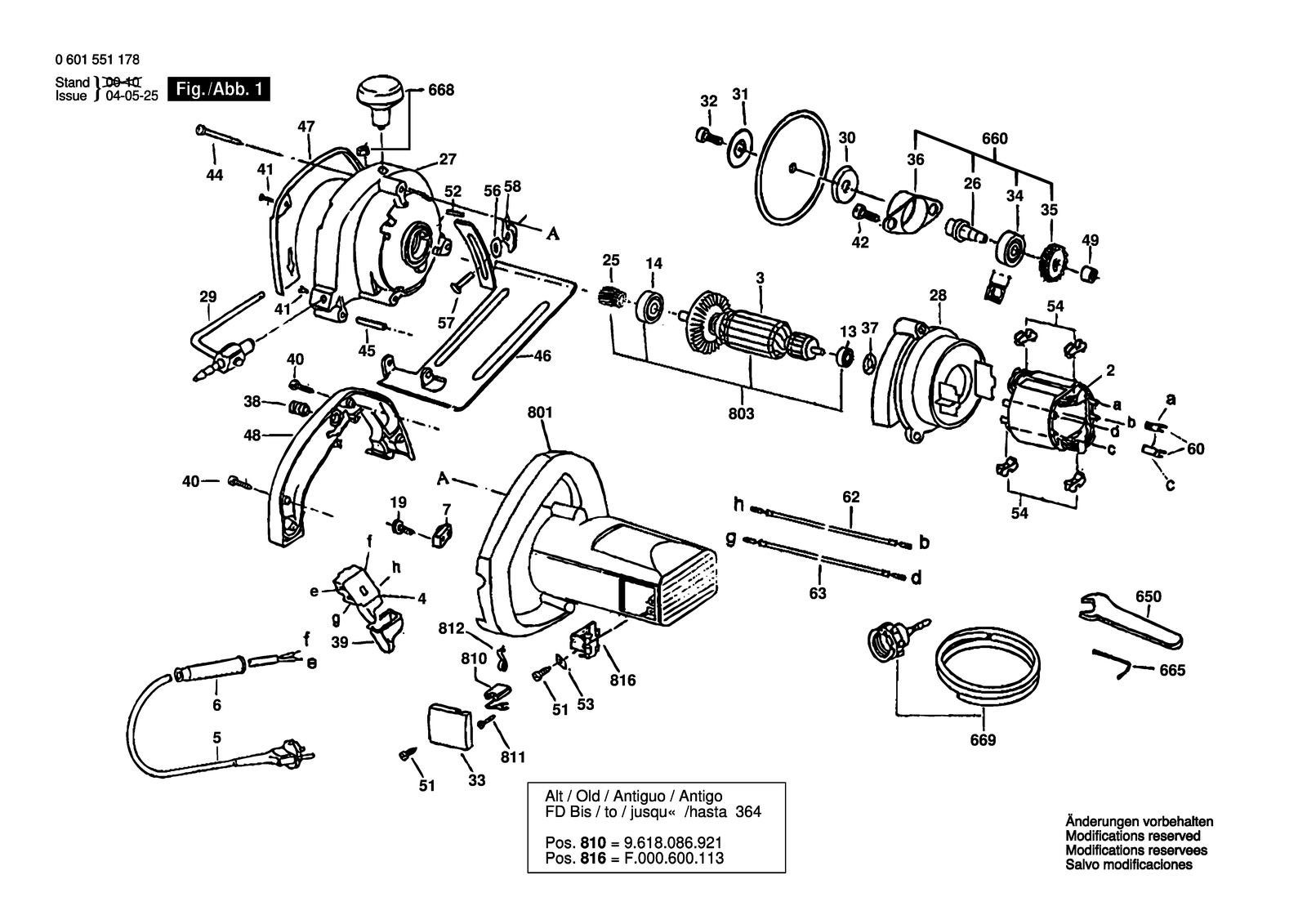

Bosch GDC 34 marble cutting saw: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDC 34: 67 positions on 1 sheet
Bosch GDC 34 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 9618089547 | Groove ball bearing |
| 14 | F000615004 | Groove ball bearing |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | 1604220230 | Field 240V |
| 2 | 3604220092 | Field 220-240V |
| 2 | F000607071 | Field 127 V |
| 25 | 9618082289 | Cylindrical Gear |
| 26 | 9618082285 | Drilling Spindle |
| 27 | F000600314 | Motor Bearing |
| 28 | F000600369 | Cover Disc |
| 29 | 9618082290 | Shut-Off Tap |
| 3 | 9618089762 | Armature With Fan 127V |
| 3 | 9618089766 | Armature With Fan 220V |
| 3 | 9618089767 | Armature With Fan 240V |
| 30 | 9618086680 | Clamping-Flange |
| 31 | 9618082293 | Brake Disc |
| 32 | F000616134 | Hex Socket Head Cap Screw |
| 33 | 1605500089 | Sealing cap Blue |
| 34 | 1900905275 | Groove ball bearing |
| 35 | 9618082287 | Cylindrical Gear |
| 36 | F000600497 | Sintered-Metal Bushing |
| 37 | F000635092 | Shim |
| 38 | 9618082270 | Protective Cover |
| 39 | F000603002 | Protective Cover |
| 4 | F000600298 | On-Off Switch |
| 4 | F000608006 | Switch |
| 40 | 9618087100 | Tapping Screw 4X20 MM |
| 41 | 9618086615 | Socket head cap screw M 4X12 MM |
| 42 | 9618086638 | Screw |
| 44 | F000600217 | Tapping Screw |
| 45 | 2917760156 | Slotted Spring Pin 6X32 DIN 1481 |
| 46 | 9618086601 | Base Plate |
| 47 | F000600320 | Protective Cap |
| 48 | 9618089756 | Handle Cover |
| 49 | F000600231 | Needle bearing |
| 5 | 1604460124 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | F000600297 | Power supply cord AR 2,00M 2 X 1,0MM H07 Rn-F |
| 5 | F000608008 | Power supply cord |
| 5 | F000609273 | Power supply cord SAM 2,00M 2 X 1,50MM H05 Vvf |
| 5 | F000609274 | Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf |
| 5 | F000609279 | Power supply cord SAM 2,00M 2 X 1,50MM H05 Vvf |
| 51 | 9618087099 | Screw 4X16 MM |
| 52 | 9618082288 | Plain Washer |
| 53 | 1601030022 | Tab Washer |
| 54 | 3601025003 | Wire Guide |
| 56 | 2916012014 | Plain Washer A 6,4 DIN 125-ST |
| 57 | 1603434003 | Round-Head Bolt M6X16 MM |
| 58 | 1603339006 | Wing Nut M6 |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | F000612021 | Blade terminal |
| 62 | F000610000 | Connecting Cable |
| 63 | F000610001 | Connecting Cable |
| 650 | F000600339 | Assembly Wrench |
| 660 | F000600537 | Bearing cover |
| 665 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 668 | F000600901 | Handle |
| 669 | 9618089316 | Parts Set |
| 7 | F000635217 | Cable Clip |
| 801 | F000601002 | Motor Housing |
| 803 | 9619081003 | Armature 127V |
| 803 | 9619081004 | Armature 220V |
| 803 | 9619081005 | Armature 240V |
| 810 | F000611018 | Carbon-Brush Set |
| 811 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 812 | 1604652006 | Spiral Spring |
| 816 | F000612019 | Brush Holder |
