Bosch GDC 151

Bosch GDC 151 marble cutting saw: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Bosch GDC 151: 45 positions on 1 sheet

Bosch GDC 151 parts list (1 sheet)

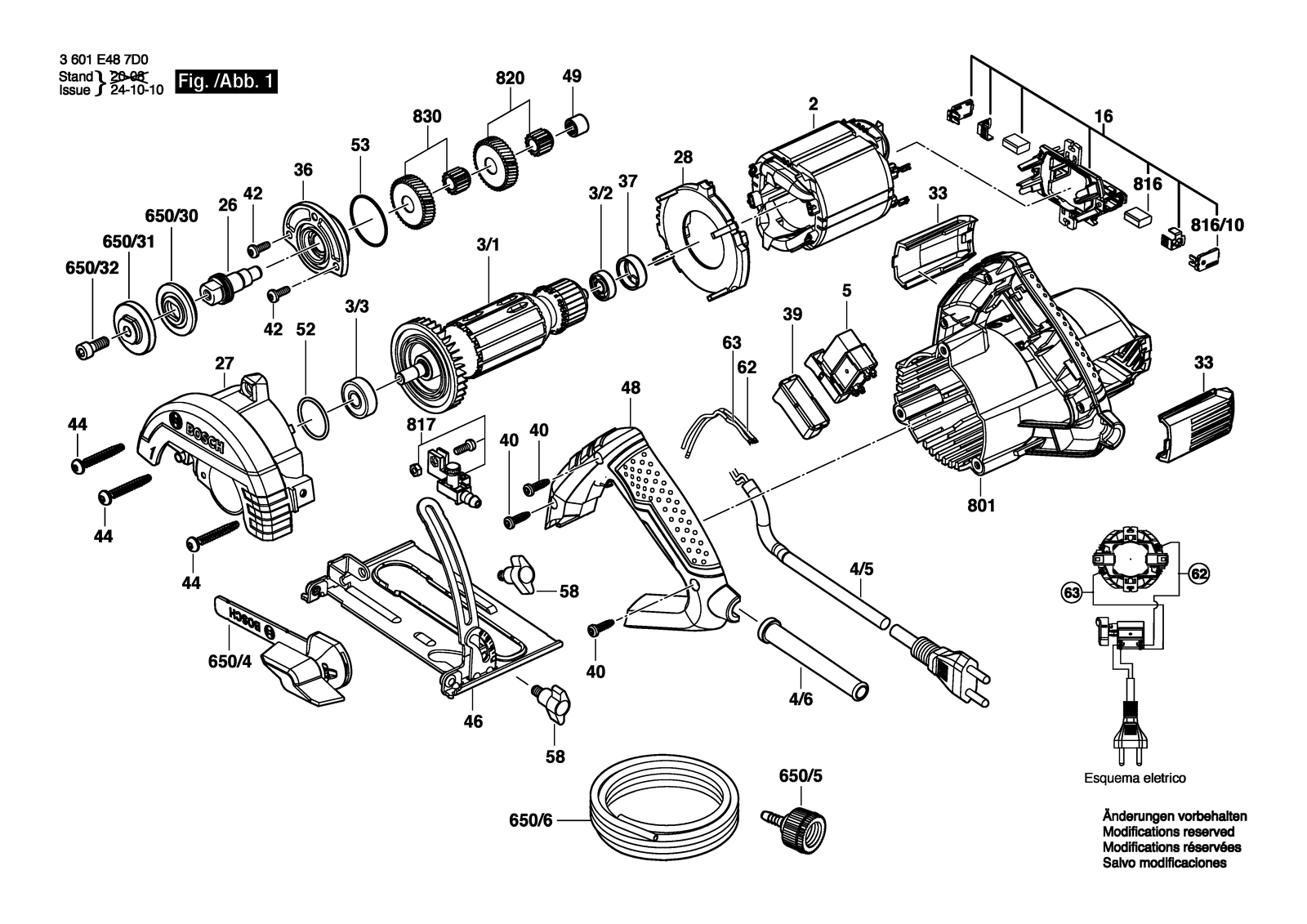

Bosch GDC 151 parts diagram, sheet 1

No.	Part number	Part name
16	1600A01180	Brush Holder 127 V
16	1600A01181	Brush Holder 220 V
2	1604220550	Field 127 V
2	1604220551	Field 220 V
26	F000619026	Spindle
27	1600A00N3D	Gear Housing
28	1600A00N3C	Deflector
3/1	1604010B74	Armature With Fan 220 V
3/1	F000605097	Armature 127V
3/2	1600900024	Groove ball bearing DIN 607-2Z-C3
3/3	F000615004	Groove ball bearing
33	1600A00P09	Cover
36	1600A0116M	Bearing
37	1600502011	Intermediate Ring
39	1600A00N3N	Protective Cover
4/5	160446073T	Power supply cord 127 V
4/5	160446073Y	Power supply cord
4/5	F000609236	Power supply cord 220 V
4/6	2600703012	Grommet Ø6,5-Ø6,9X95 MM
4/6	2600703013	Grommet Ø7,6-Ø8,2X95 MM
40	9618087099	Screw 4X16 MM
42	9618086615	Socket head cap screw M 4X12 MM
44	F000600217	Tapping Screw
46	1600A00N3F	Base Plate
48	16055002BU	Handle Cover
49	F000615011	Needle bearing
5	1607200341	Switch
52	F000640007	O-Ring
53	F000640008	O-Ring
58	F000616053	Knob
62	1600A00P72	Connecting Cable
63	1600A00P73	Connecting Cable
650/30	F000616044	Supporting Disc
650/31	9618082293	Brake Disc
650/32	F000616134	Hex Socket Head Cap Screw
650/4	1600A00RK5	Key
650/5	F000630031	Low Pressure Hose
650/6	F000630036	Low Pressure Hose
801	16051082ER	Motor Housing
816	160432116Y	Carbon Brush 127 V
816	1607000CB1	Carbon Brush 220 V
816/10	F000612014	Brush Holder
817	1600A01018	Shut-Off Tap
820	1600A034E5	Gear
830	1600A034E6	Gear
