Bosch GDC 140

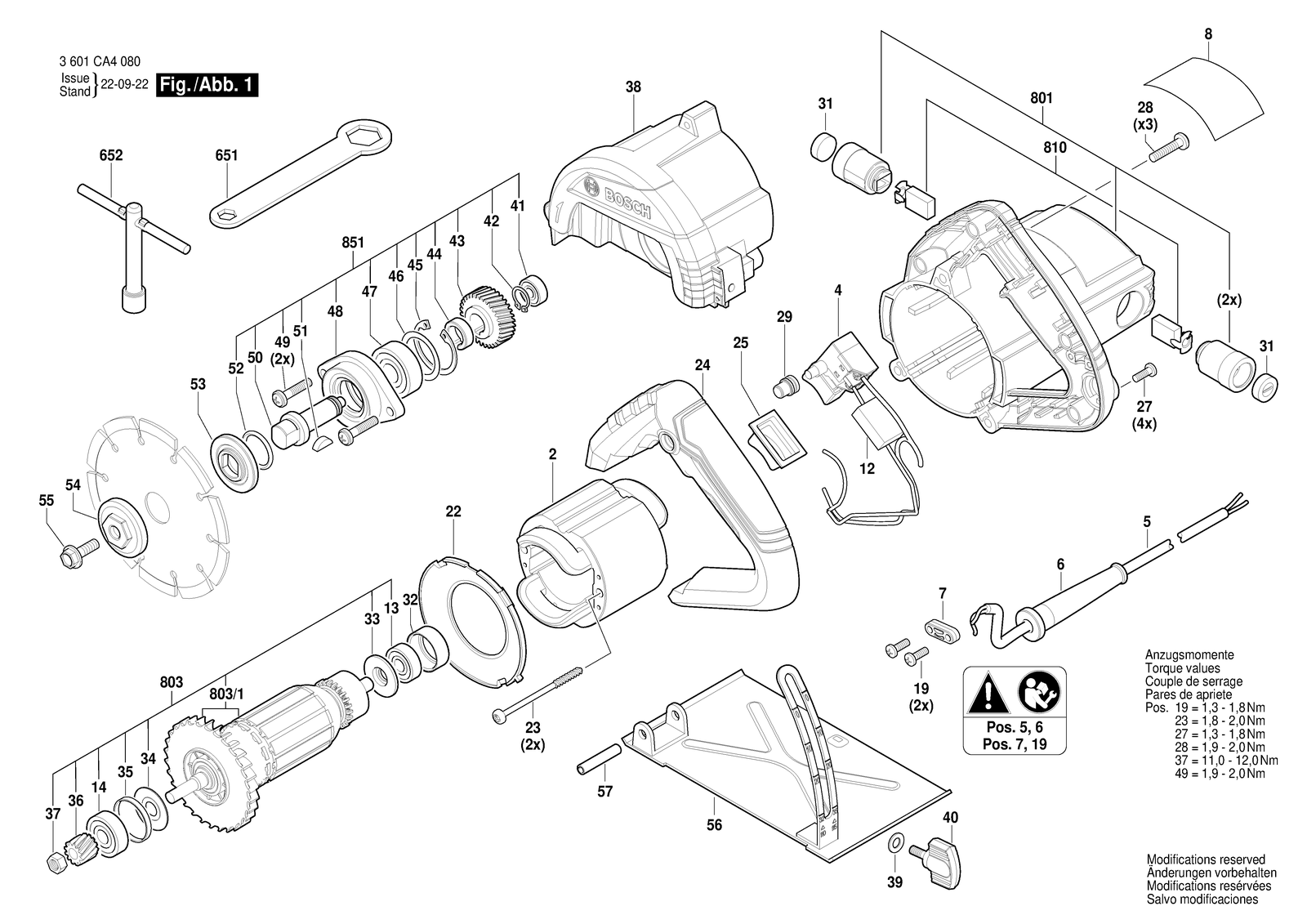

Bosch GDC 140 marble saw: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDC 140: 72 positions on 1 sheet
Bosch GDC 140 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1619PB5771 | Capacitor |
| 13 | 1619PB5758 | Groove ball bearing |
| 14 | 1619PB5759 | Groove ball bearing |
| 19 | 1619PB5793 | Screw |
| 2 | 1619PB8856 | Field |
| 22 | 1619PB5763 | Air-Deflector Ring |
| 23 | 1619PB5794 | Screw |
| 24 | 1619PB5764 | Handle |
| 25 | 1619PB5772 | Cap |
| 27 | 1619PB5795 | Screw |
| 28 | 1619PB5796 | Screw |
| 29 | 1619PB5773 | Cap |
| 31 | 1619PB5756 | Insulating Cap |
| 32 | 1619PB5775 | Bearing Sleeve |
| 33 | 1619PB5776 | Rubber Ring |
| 34 | 1619PB5777 | Washer |
| 35 | 1619PB5778 | Rectangular Ring |
| 36 | 1619PB5761 | Gear |
| 36 | 1619PB6591 | Gear |
| 36 | 1619PB7283 | Gear |
| 37 | 1619PB5779 | Hex Nut |
| 38 | 1619PB5766 | Gear Box |
| 38 | 1619PB7282 | Gear Box |
| 39 | 1619PB5780 | Washer |
| 4 | 1619PB5623 | Switch |
| 40 | 1619PB5792 | Wing Screw |
| 41 | 1619PB5757 | Groove ball bearing |
| 42 | 1619PB5781 | Spring retaining ring |
| 43 | 1619PB5770 | Gear |
| 43 | 1619PB6592 | Pinion |
| 43 | 1619PB7284 | Pinion |
| 44 | 1619PB5782 | Bushing |
| 45 | 1619PB5783 | Spring retaining ring |
| 46 | 1619PB5784 | Washer |
| 47 | 1619PB5760 | Groove ball bearing |
| 48 | 1619PB5785 | Upper guard |
| 49 | 1619PB5798 | Screw |
| 5 | 1619PB5753 | Power supply cord |
| 5 | 1619PB6595 | Power supply cord |
| 5 | 1619PB6596 | Power supply cord |
| 5 | 1619PB7280 | Power supply cord |
| 50 | 1619PB5786 | Output Shaft |
| 51 | 1600A023FS | Woodruff Key |
| 52 | 1619PB5765 | Rubber Ring |
| 53 | 1619PB5787 | Clamping Flange |
| 53 | 1619PB6787 | Clamping Flange |
| 54 | 1619PB5788 | Clamping Flange |
| 54 | 1619PB6788 | Clamping Flange |
| 55 | 1619PB5789 | Bolt |
| 56 | 1619PB5790 | Base Plate |
| 56 | 1619PB7285 | Base |
| 57 | 1619PB5791 | Slotted Spring Pin |
| 6 | 1619PB5767 | Cord guard |
| 651 | 1619PB5742 | Spanner |
| 652 | 1619PB5743 | Socket Wrench |
| 7 | 1619PB5768 | Cable Clip |
| 8 | 1619PB5754 | Nameplate |
| 8 | 1619PB5903 | Nameplate |
| 8 | 1619PB6590 | Nameplate |
| 8 | 1619PB6628 | Nameplate |
| 8 | 1619PB6786 | Nameplate |
| 8 | 1619PB7281 | Nameplate |
| 801 | 1619PB5911 | Housing Set |
| 803 | 1619PB5912 | Armature assembly |
| 803 | 1619PB6597 | Armature assembly |
| 803 | 1619PB7286 | Armature assembly |
| 803/1 | 1619PB9160 | Armature assembly |
| 803/1 | 1619PB9161 | Armature assembly |
| 810 | 1619PB5915 | Carbon Brush |
| 851 | 1619PB5916 | Spindle assembly |
| 851 | 1619PB6598 | Spindle assembly |
| 851 | 1619PB7287 | Spindle assembly |
