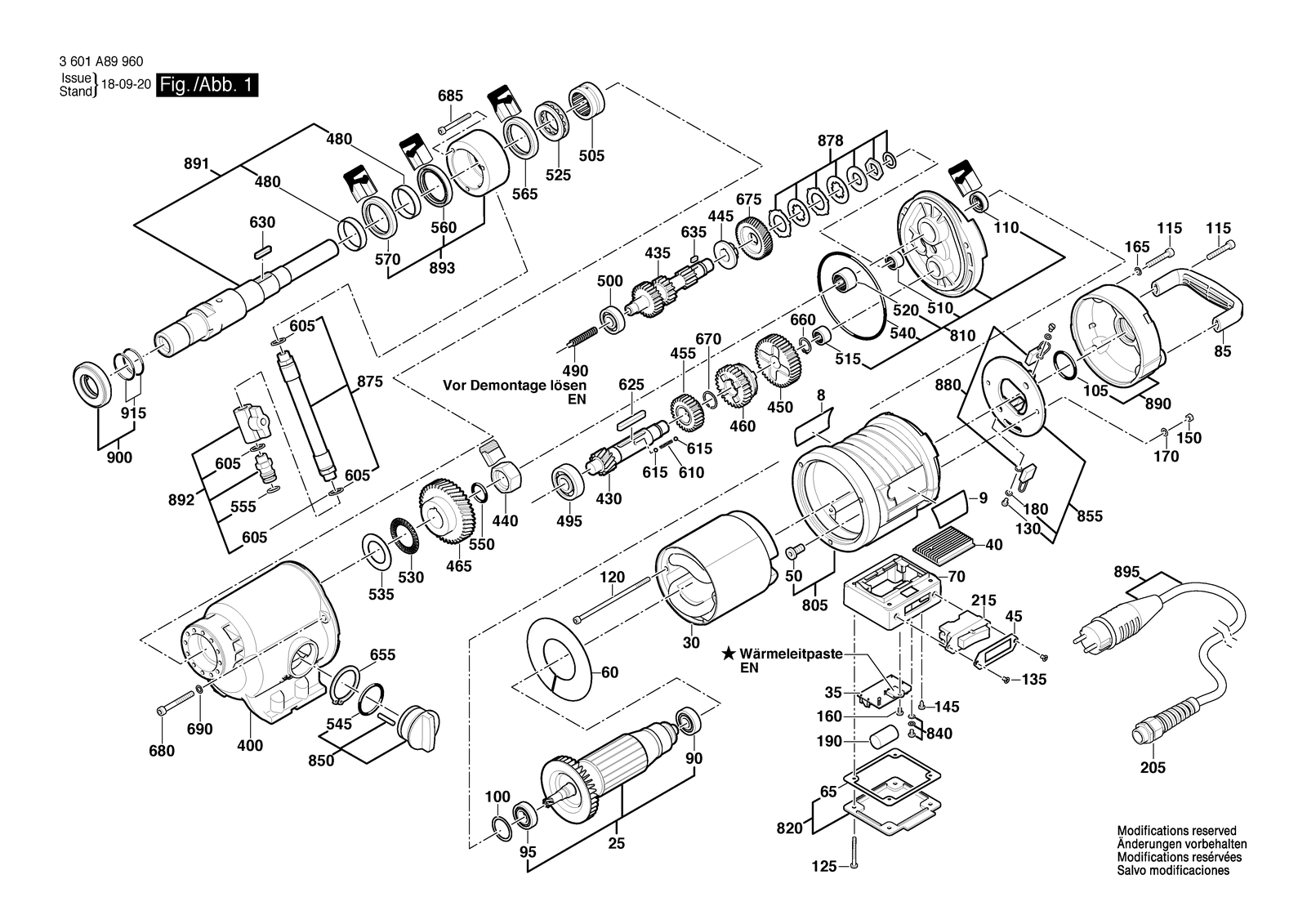

Bosch GDB 350 WE diamond drilling machine: exploded parts diagram, 1 sheet, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDB 350 WE: 86 positions on 1 sheet
Bosch GDB 350 WE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1600A0073L | Shim |
| 105 | 1600210067 | O-Ring |
| 110 | 1600A004Y0 | Rotary shaft lip seal |
| 115 | 1600A0073N | Hex Socket Head Cap Screw |
| 120 | 1600A0073P | Hex Socket Head Cap Screw |
| 125 | 160341001D | Socket head cap screw |
| 130 | 160341001E | Socket head cap screw |
| 135 | 1603490A0D | Countersunk-Head Screw |
| 145 | 1600A019B5 | Oval-Head Screw |
| 150 | 1600A0073S | Hex Nut |
| 160 | 1601A013TB | Oval-Head Screw |
| 165 | 1600A0073V | Locking washer |
| 170 | 1600150021 | Spring Washer |
| 180 | 1600A0073W | Plain Washer |
| 190 | 1600A0073X | Suppression Capacitor |
| 205 | 1600A0073Z | Cable Gland |
| 215 | 1600A00741 | Mains switch |
| 25 | 1600A0073E | Armature With Fan 110V |
| 30 | 160422053F | Field 110V |
| 35 | 1600325009 | Printed Circuit Board |
| 40 | 1600A0073F | Cooling Sheet |
| 400 | 160580659Y | Gear Housing |
| 430 | 1600A00743 | Pinion Shaft |
| 435 | 1600A00744 | Gear Shaft |
| 440 | 1600A0077E | Hex Nut |
| 445 | 160030010H | Bushing |
| 45 | 1600A00742 | Seal |
| 450 | 1600A0076R | Cylindrical Gear |
| 455 | 1600A0076S | Cylindrical Gear |
| 460 | 1600A0076T | Cylindrical Gear |
| 465 | 1600A0076U | Cylindrical Gear |
| 480 | 1600A00746 | Protection Sleeve |
| 490 | 1600A0076V | Worm Shaft |
| 495 | 160090004U | Groove ball bearing |
| 50 | 1600325008 | Insulating Sleeve |
| 500 | 160090004V | Groove ball bearing |
| 505 | 160090004W | Needle-Roller Bearing |
| 510 | 1600A0076W | Nozzle Socket |
| 515 | 1600A0076X | Needle bearing |
| 520 | 1600A0076Y | Needle bearing |
| 525 | 1600A0076Z | Needle Axial Ball Bearin |
| 530 | 1600A00770 | Thrust Needle Rim |
| 535 | 1600A00771 | Thrust Bearing Disc |
| 540 | 1600210068 | O-Ring |
| 545 | 1600210069 | O-Ring |
| 550 | 1600210063 | O-Ring |
| 555 | 1600210064 | O-Ring |
| 560 | 1600A00772 | Shaft Seal |
| 565 | 1600A00773 | Shaft Seal |
| 570 | 1600A00774 | Shaft Seal |
| 60 | 160059105P | Air-Deflector Ring |
| 605 | 1600A004YF | Seal Ring |
| 610 | 1600A00777 | Helical compress. spring |
| 615 | 1600A0077A | Ball |
| 625 | 1600A0077B | Parallel Key |
| 630 | 1600A0077C | Parallel Key |
| 635 | 1600A0077D | Parallel Key |
| 65 | 1600A0073G | Seal |
| 655 | 1600150022 | Spring retaining ring |
| 660 | 1600150023 | Spring retaining ring |
| 670 | 160460102P | Retaining ring |
| 675 | 1600A0079B | Cylindrical Gear |
| 680 | 1600A0077G | Hex Socket Head Cap Screw |
| 685 | 1600A0077H | Hex Socket Head Cap Screw |
| 690 | 1600A0073V | Locking washer |
| 70 | 1600A0073H | Terminal Box |
| 8 | 160111A1G9 | Nameplate |
| 805 | 16051082C1 | Motor Housing |
| 810 | 1600A0077L | Intermediate Flange |
| 820 | 1600A0077M | Cover |
| 840 | 1600A0077N | Threaded joint |
| 85 | 1600A0073K | Carrying Handle |
| 850 | 1602026102 | Clamp Handle |
| 855 | 1600A0077P | Brush Holder |
| 875 | 1600A008WC | Hose |
| 878 | 1600A0077R | Sliding Clutch |
| 880 | 160701417N | Carbon-Brush Set |
| 890 | 160582023B | Bearing cover |
| 891 | 1600A0077S | Drilling Spindle |
| 892 | 1600A005AY | Isolating Valve |
| 893 | 1600A0077U | Water connection |
| 895 | 1600A0077W | Power supply cord |
| 90 | 160090004R | Groove ball bearing |
| 900 | 1600A00780 | Glide ring |
| 915 | 160021006D | O-Ring |
| 95 | 160090004S | Groove ball bearing |
