Bosch GDB 1600 DE diamond drilling machine: exploded parts diagram, 2 sheets, 144 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDB 1600 DE: 144 positions on 2 sheets

Bosch GDB 1600 DE parts list (2 sheets)

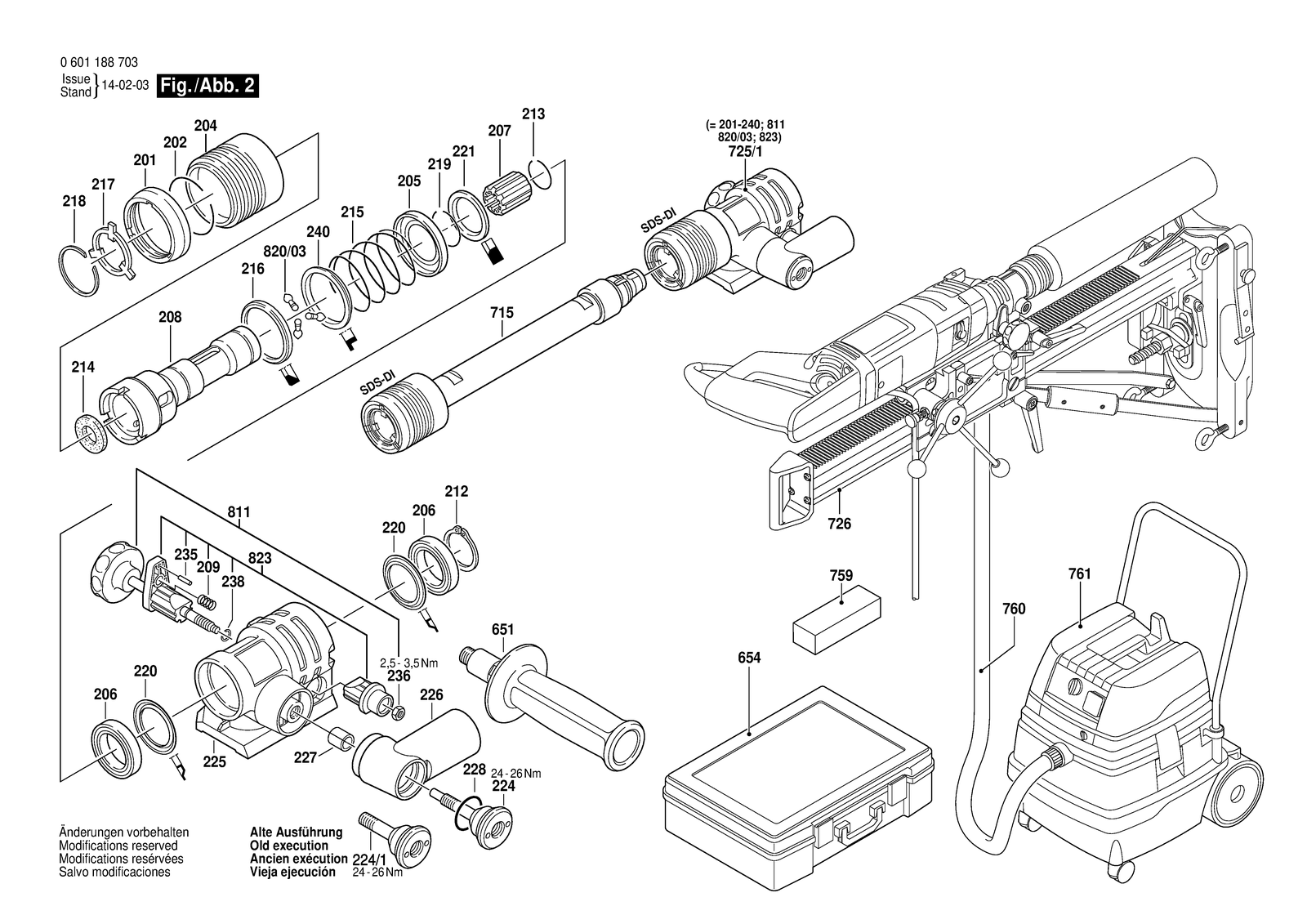

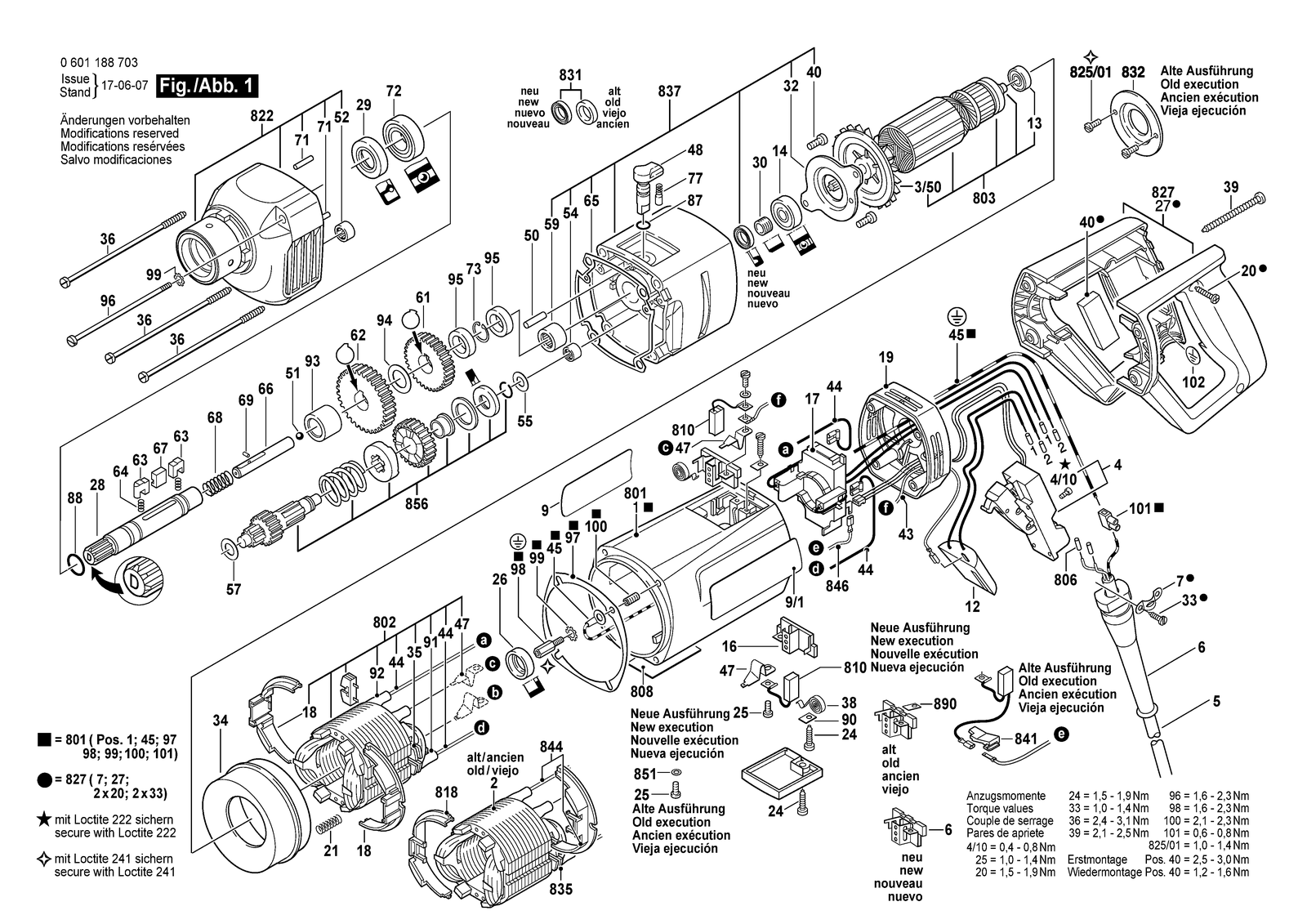

Bosch GDB 1600 DE parts diagram, sheet 1Bosch GDB 1600 DE parts diagram, sheet 2
No.Part numberPart name
1003603100034Threaded Insert
1013602319041Socket-Terminal Strip 1X1,5 MM
1023601119070Reference Plate
123607328013Suppression Filter
132600905032Ball Bearing 7X19X6
143600905131Groove ball bearing 9X26X8
163604336012Brush Holder
171607233127Speed governor 100-120V
171607233156Speed governor 220-240V
183600460006Segmented Ring
193605500153Cover
201603435061Tapping Screw TORX-T20
202914201507Torx Oval-Head Screw
2013605500152Protective Cap
2023600224046Retaining ring
2043600400023Sleeve
2053600100079Retaining Washer
2063600905114Groove ball bearing 30X47X9
2073606319029Carrier
2083603130005Hollow Shaft Sds-Di
2093604610155Compression Spring
211604613006Compression Spring
2122916650017Spring retaining ring DIN 471 30X1,5 MM
2133600224050Retaining ring
2143600109013Sealing disk
2153604610053Compression Spring
2163600300056Stop Ring
2173600113021Driver Disc
2183600224051Retaining ring
2193600224047Retaining ring
2203600283044Seal Ring
2213600190021Supporting Disc
2243603100037Retaining Pin
2253605102083Housing
2263603386046Suction Connector
2273600400027Clamping Sleeve
2283600210112O-Ring 25,0X2,65 MM
2352917550077Straight Pin DIN 6325-3M6X12
2363603386057Self-locking nut M5
2383600224056Spring retaining ring
242910211019Tapping Screw DIN 7971-ST3,9X16-F
2403600300057Retaining snap ring
252910021118Socket head cap screw DIN 84-AM4X8-8.8
261600502011Intermediate Ring
283606135005Drilling Spindle
293600283042Rotary shaft lip seal 17X32X7
3/503606610002Fan
301600300090Intermediate Ring
323605500156Bearing cover
332910211011Tapping Screw DIN 7971-BZ3,5X13
343600499016Air-Deflector Ring
353601025003Wire Guide
363603435024Lens Head Screw
383604652001Spiral Spring
392910211239Tapping Screw DIN 79-4,8X45-C-ST
43607200074Switch
43607200075Switch
4/102910011082Socket head cap screw DIN 84-AM3,5X6-5.8
403604411040Thread-forming tap. Screw
433604460068Connecting Cable L=160 MM
443604438031Connecting Cable
453604414049Earth Conductor L=415 MM
471604477001Blade terminal
483603231008Rotary Knob
53604460067Power supply cord 5M
53604460097Power supply cord CH 5M
53604460098Power supply cord 5M
53604460100Power supply cord Usa/cdn 5M
53604460102Power supply cord 5M
53604460103Power supply cord 5M
53604460104Power supply cord DK 5M
502917550099Straight Pin DIN 6325-4M6X20
511903230013Ball DIN 5401-Ø7MM-III-ST
522600910001Needle-Roller Bearing Ø14 MM
541600910018Needle bearing Ø8XØ12X8 MM
551600100617Shim Thick 0,5 MM
573600100083Shim
591610910088Needle bearing
63600703011Grommet Ø9,2-Ø12X120 MM
613606317047Cylindrical Gear Z=34
623606317048Cylindrical Gear Z=45
633602317037Wedge
643604610048Compression Spring
653601015009Seal
6513602025014Auxiliary Handle Black M14
6541615438373Carrying Case
663600101051Carrier
673602317050Guide Key
683604610049Compression Spring
692917800032Coiled Spring Pin DIN 7343-4X2
71601302013Fastening Clamp
712917500121Straight Pin 5 H 8X18 DIN 7
7152608598112Lengthening Piece Sds-Di, L=300 MM
721900900273Groove ball bearing 6003 Y DIN 625
725/12609390318Extractor Head Sds-Di
7260601190025Drill Stand
732916650008Spring retaining ring DIN 471 17X1 MM
7592609390315Sharpening Stone
7601609202230Air Hose Ø 35 Mm, L=5 M
7610601989103All Purpose Vacuum Cleane
7610601989108All Purpose Vacuum Cleane
7610601989132All Purpose Vacuum Cleane
7610601989137All Purpose Vacuum Cleane
7610601989139All Purpose Vacuum Cleane
7610601989142All Purpose Vacuum Cleane
7610601989160All Purpose Vacuum Cleane
772600590006Ratchet Cap
8013605108181Motor Housing Blue
8023604220108Field 110-120V
8023604220154Field 220-240V
8033604010088Armature 220-240V
8033604010090Armature 110-120V
8063604477009End Splice
808160111A3H7Nameplate
8103607014003Carbon-Brush Set
8103607014005Carbon-Brush Set
8113603349003Star Knob
8183600460005Segmented Ring
820/033602319043Fastener
8223605806184Spindle Bearing
8233600300055Clamp Bushing
8273605133019Handle Black
8313600290070Rotary shaft lip seal
8353601025003Wire Guide
8373607030438Intermediate Bearing
8413602329036Holding Plate
8443604438017Connecting Cable Gray L=330 MM
8463604441010Connecting Cable White L=170 MM
8512916060005Spring Washer DIN 137-A 4-ST
8563606309054Spur Wheel Clutch
873600210028O-Ring 6,0X2,0 MM
883600210115O-Ring 12,5X2,5 MM
8901601030022Tab Washer
93601110512Manufacturer's nameplate
9/13601110433Reference Plate Shadow Side
913600707022Shrinkable Tube
923600707022Shrinkable Tube
933600400028Spacer Sleeve
943600400025Plain Washer
953600400026Spacer Sleeve
963603414022Socket head cap screw M4X103 MM
973601016003Contact Sheet
983603100033Bolt
992916031006Toothed lock washer
