Bosch GDB 1600 DE
Bosch GDB 1600 DE diamond drilling machine: exploded parts diagram, 2 sheets, 117 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

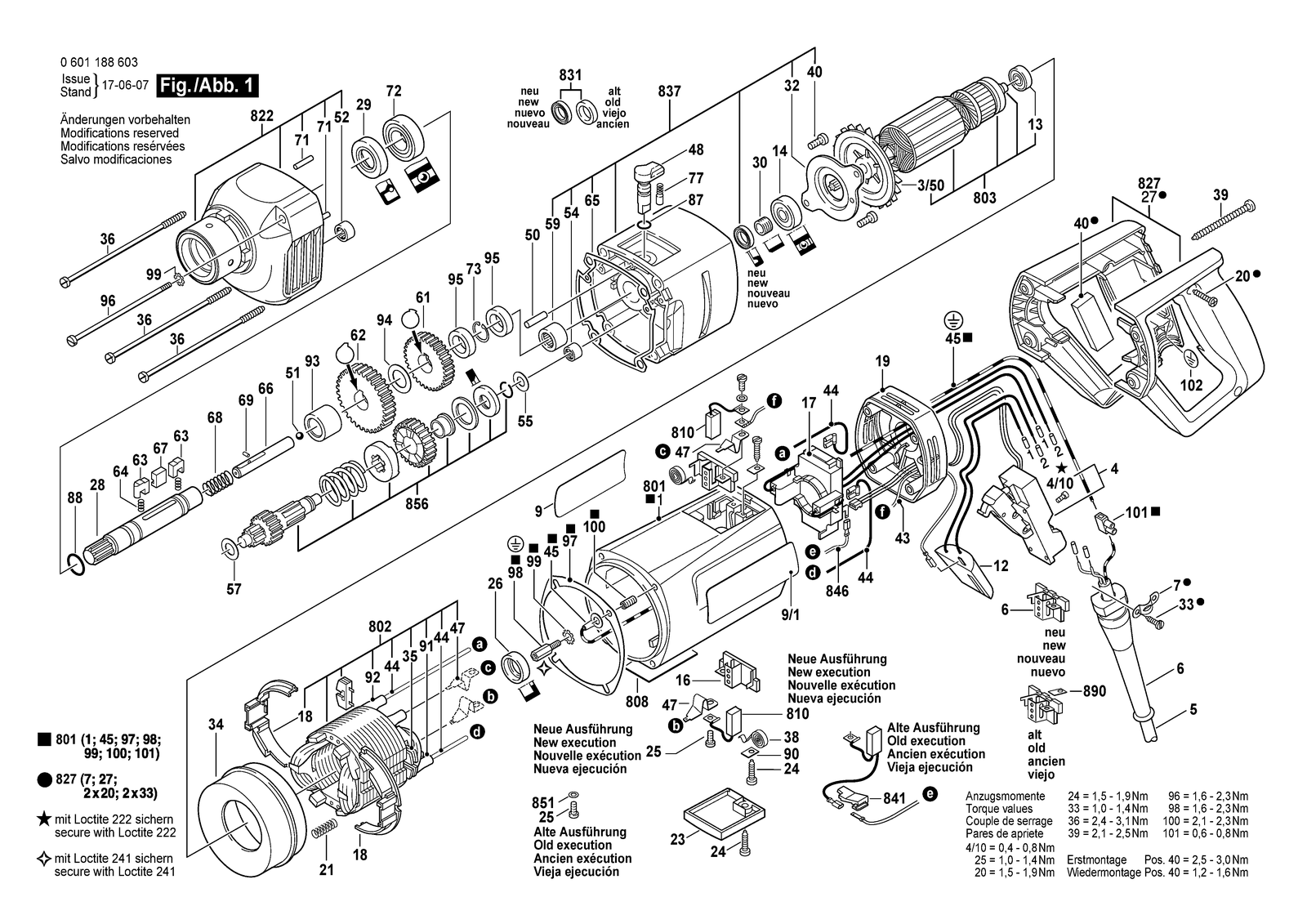

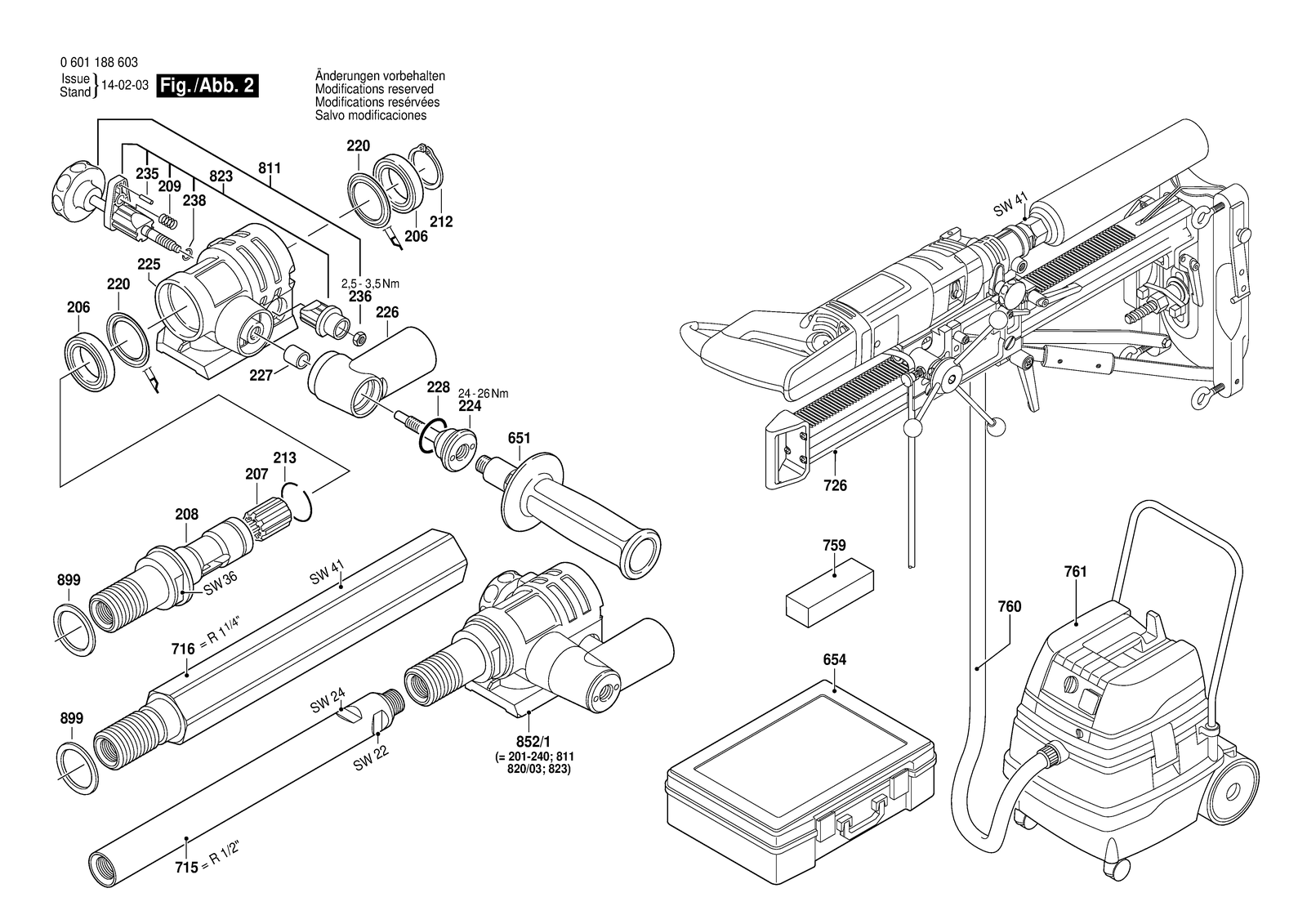

All parts of Bosch GDB 1600 DE: 117 positions on 2 sheets
Bosch GDB 1600 DE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 3603100034 | Threaded Insert |
| 101 | 3602319041 | Socket-Terminal Strip 1X1,5 MM |
| 102 | 3601119070 | Reference Plate |
| 12 | 3607328013 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 16 | 3604336012 | Brush Holder |
| 17 | 1607233156 | Speed governor 220-240V |
| 18 | 3600460006 | Segmented Ring |
| 19 | 3605500153 | Cover |
| 20 | 2914201507 | Torx Oval-Head Screw |
| 206 | 3600905114 | Groove ball bearing 30X47X9 |
| 207 | 3606319029 | Carrier |
| 208 | 3603130010 | Hollow Shaft 1 1/4" , R 1/2" |
| 209 | 3604610155 | Compression Spring |
| 21 | 1604613006 | Compression Spring |
| 212 | 2916650017 | Spring retaining ring DIN 471 30X1,5 MM |
| 213 | 3600224050 | Retaining ring |
| 220 | 3600283044 | Seal Ring |
| 224 | 3603100037 | Retaining Pin |
| 225 | 3605102083 | Housing |
| 226 | 3603386046 | Suction Connector |
| 227 | 3600400027 | Clamping Sleeve |
| 228 | 3600210112 | O-Ring 25,0X2,65 MM |
| 23 | 3605500063 | Sealing cap Blue |
| 235 | 2917550077 | Straight Pin DIN 6325-3M6X12 |
| 236 | 3603386057 | Self-locking nut M5 |
| 238 | 3600224056 | Spring retaining ring |
| 24 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 25 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 26 | 1600502011 | Intermediate Ring |
| 28 | 3606135005 | Drilling Spindle |
| 29 | 3600283042 | Rotary shaft lip seal 17X32X7 |
| 3/50 | 3606610002 | Fan |
| 30 | 1600300090 | Intermediate Ring |
| 32 | 3605500156 | Bearing cover |
| 33 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 34 | 3600499016 | Air-Deflector Ring |
| 35 | 3601025003 | Wire Guide |
| 36 | 3603435039 | Lens Head Screw |
| 38 | 3604652001 | Spiral Spring |
| 39 | 2910211239 | Tapping Screw DIN 79-4,8X45-C-ST |
| 4 | 3607200074 | Switch |
| 4/10 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 40 | 3604411040 | Thread-forming tap. Screw |
| 43 | 3604460068 | Connecting Cable L=160 MM |
| 44 | 3604438031 | Connecting Cable |
| 45 | 3604414049 | Earth Conductor L=415 MM |
| 47 | 1604477001 | Blade terminal |
| 48 | 3603231008 | Rotary Knob |
| 5 | 3604460067 | Power supply cord 5M |
| 5 | 3604460097 | Power supply cord CH 5M |
| 5 | 3604460102 | Power supply cord 5M |
| 50 | 2917550099 | Straight Pin DIN 6325-4M6X20 |
| 51 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 52 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 54 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 55 | 1600100617 | Shim Thick 0,5 MM |
| 57 | 3600100083 | Shim |
| 59 | 1610910088 | Needle bearing |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 61 | 3606317047 | Cylindrical Gear Z=34 |
| 62 | 3606317048 | Cylindrical Gear Z=45 |
| 63 | 3602317037 | Wedge |
| 64 | 3604610048 | Compression Spring |
| 65 | 3601015009 | Seal |
| 651 | 3602025014 | Auxiliary Handle Black M14 |
| 654 | 1615438373 | Carrying Case |
| 66 | 3600101051 | Carrier |
| 67 | 3602317050 | Guide Key |
| 68 | 3604610049 | Compression Spring |
| 69 | 2917800032 | Coiled Spring Pin DIN 7343-4X2 |
| 7 | 1601302013 | Fastening Clamp |
| 71 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 715 | 2608598044 | Lengthening Piece R 1/2" |
| 716 | 2608598045 | Lengthening Piece 1 1/4" |
| 72 | 1900900273 | Groove ball bearing 6003 Y DIN 625 |
| 726 | 0601190025 | Drill Stand |
| 73 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 759 | 2609390315 | Sharpening Stone |
| 760 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 761 | 0601989103 | All Purpose Vacuum Cleane |
| 761 | 0601989108 | All Purpose Vacuum Cleane |
| 761 | 0601989132 | All Purpose Vacuum Cleane |
| 761 | 0601989142 | All Purpose Vacuum Cleane |
| 77 | 2600590006 | Ratchet Cap |
| 801 | 3605108181 | Motor Housing Blue |
| 802 | 3604220154 | Field 220-240V |
| 803 | 3604010088 | Armature 220-240V |
| 808 | 160111A3H7 | Nameplate |
| 810 | 3607014003 | Carbon-Brush Set |
| 811 | 3603349003 | Star Knob |
| 822 | 3605806184 | Spindle Bearing |
| 823 | 3600300055 | Clamp Bushing |
| 827 | 3605133019 | Handle Black |
| 831 | 3600290070 | Rotary shaft lip seal |
| 837 | 3607030438 | Intermediate Bearing |
| 841 | 3602329036 | Holding Plate |
| 846 | 3604441010 | Connecting Cable White L=170 MM |
| 851 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 852/1 | 3607031574 | Extractor Head 1 1/4", R 1/2" |
| 856 | 3606309054 | Spur Wheel Clutch |
| 87 | 3600210028 | O-Ring 6,0X2,0 MM |
| 88 | 3600210115 | O-Ring 12,5X2,5 MM |
| 890 | 1601030022 | Tab Washer |
| 899 | 1600190043 | Glide ring Ø32,2XØ41X1 MM |
| 9 | 3601110512 | Manufacturer's nameplate |
| 9/1 | 3601110433 | Reference Plate Shadow Side |
| 91 | 3600707022 | Shrinkable Tube |
| 92 | 3600707022 | Shrinkable Tube |
| 93 | 3600400028 | Spacer Sleeve |
| 94 | 3600400025 | Plain Washer |
| 95 | 3600400026 | Spacer Sleeve |
| 96 | 3603414022 | Socket head cap screw M4X103 MM |
| 97 | 3601016003 | Contact Sheet |
| 98 | 3603100033 | Bolt |
| 99 | 2916031006 | Toothed lock washer |
