Bosch GDA 280 E

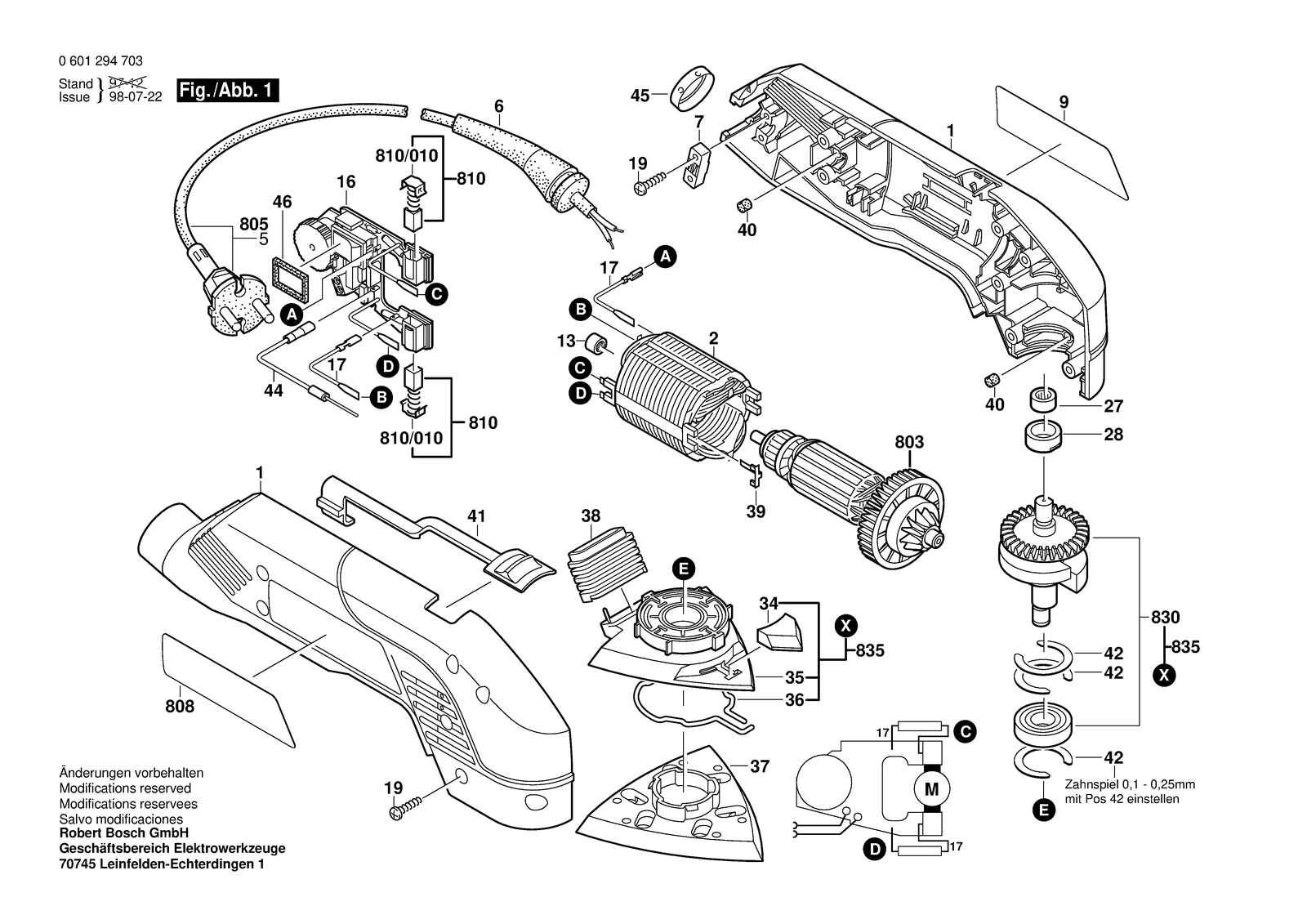

Bosch GDA 280 E delta sander: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GDA 280 E: 58 positions on 1 sheet
Bosch GDA 280 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104545 | Housing Section Blue |
| 13 | 2600917002 | Needle bearing |
| 16 | 2607233024 | Speed governor 120V |
| 16 | 2607233025 | Speed governor 230V |
| 17 | 2604448034 | Connecting Cable White L=88 MM |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220576 | Field 100V |
| 2 | 2604220577 | Field 110-115V |
| 2 | 2604220578 | Field 220-230V |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 28 | 2600390026 | Bearing Carrier |
| 34 | 2608000173 | Catch Slide |
| 35 | 2601098044 | Tool Holding Fixture |
| 36 | 2604680000 | Clamping Spring |
| 37 | 2608000174 | Sander Plate |
| 38 | 2600712006 | Flexible Connection |
| 39 | 2601329037 | Contact Spring |
| 40 | 2603100056 | Damping rubber |
| 41 | 2602319010 | Switch Slide |
| 42 | 2600101088 | Shim 0,2 MM |
| 42 | 2600101089 | Shim 0,3 MM |
| 42 | 2600101090 | Shim 0,4 MM |
| 42 | 2600101091 | Shim 0,5 MM |
| 44 | 2604448200 | Earth Conductor |
| 45 | 2600290025 | Clamping Ring |
| 46 | 2601015075 | Felt Seal |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460173 | Power supply cord J 5M 2 X 0,75MM Pvc |
| 5 | 2604460178 | Power supply cord |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2604010951 | Armature 110-115V |
| 803 | 2604010952 | Armature 230V |
| 803 | 2604010953 | Armature 100V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119169 | Marking Plate |
| 808 | 2601119170 | Marking Plate |
| 808 | 2601119171 | Marking Plate |
| 808 | 2601119172 | Nameplate |
| 808 | 2601119173 | Marking Plate |
| 808 | 2601119174 | Marking Plate |
| 808 | 2601119176 | Marking Plate |
| 808 | 2601119177 | Marking Plate |
| 808 | 2601119178 | Marking Plate |
| 808 | 2601119483 | Marking Plate |
| 808 | 2601119695 | Marking Plate |
| 810 | 2607014010 | Carbon-Brush Set |
| 810/010 | 2601322018 | Ratchet Cap |
| 830 | 2606100900 | Bevel Gear Shaft Z= 31 |
| 835 | 2601098900 | Tool Holding Fixture |
| 9 | 2601116689 | Manufacturer's nameplate |
| 9 | 2601117550 | Manufacturer's nameplate |
| 9 | 2601119129 | Manufacturer's nameplate |
