Makita GD0810C
Makita GD0810C: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GD0810C: 56 positions on 1 sheet

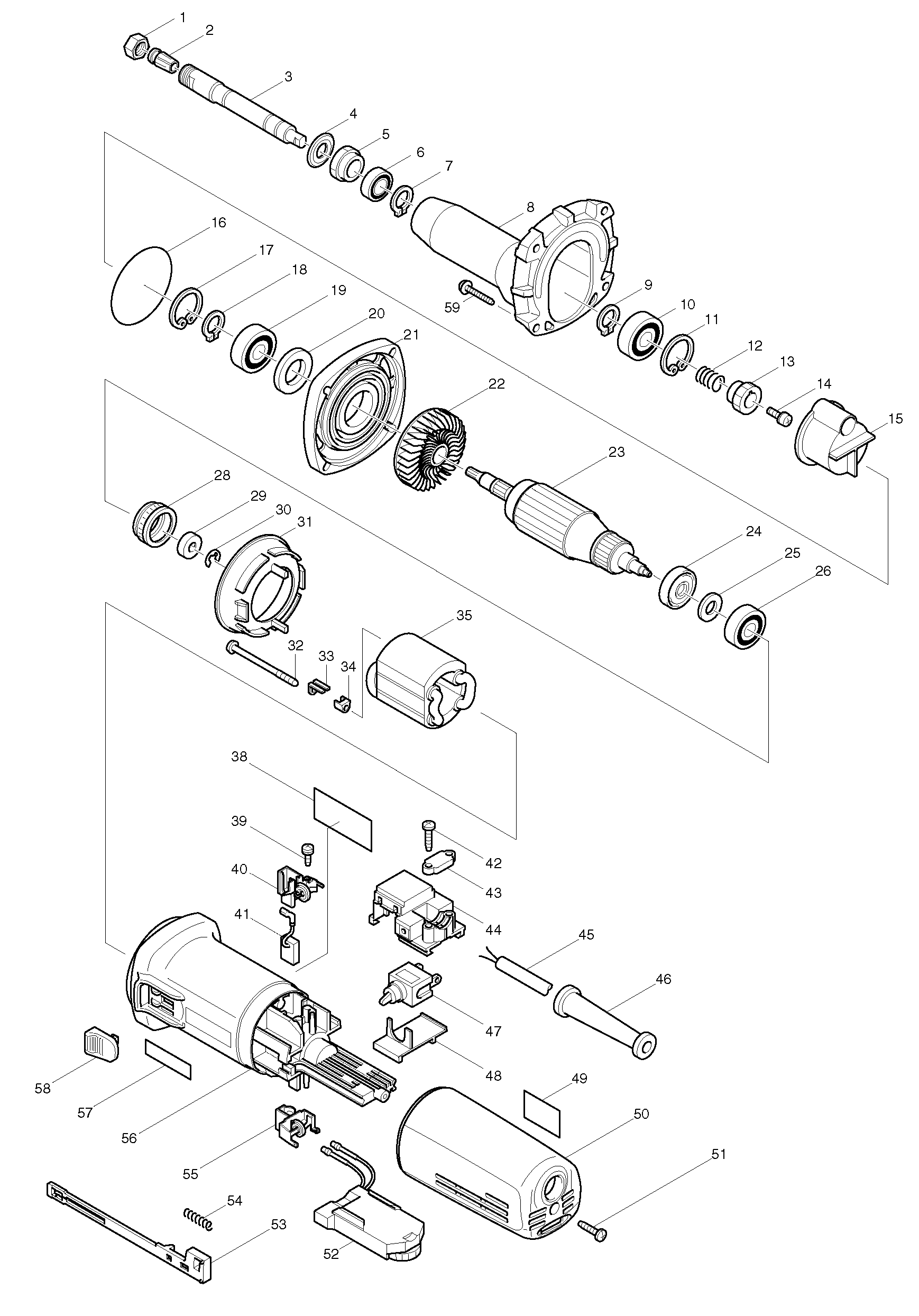

Sheet 1: Makita GD0810C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 763645-2 | Makita 763645-2 Collet Nut GD0800C GD0810C |
| 2 | 193012-1 | Makita 193012-1 Collet Cone 6MM GD0800C GD0810C GD0801C GD0811C |
| 3 | 324042-3 | Makita 324042-3 Spindle for GD0800C |
| 4 | 213209-7 | Makita 213209-7 OIL SEAL 16 |
| 5 | 285700-5 | Makita 285700-5 BEARING RETAINER |
| 6 | 211141-9 | Makita 211141-9 BALL BEARING 6901LLB |
| 7 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 8 | 317369-8 | Makita 317369-8 BARREL |
| 9 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 10 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 11 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 12 | 233901-9 | Makita 233901-9 LOCK SPRING 12 |
| 13 | 226531-3 | Makita 226531-3 HELICAL GEAR 25 GD0810C |
| 14 | 265082-1 | Makita 265082-1 PAN HEAD SCREW M4X8 |
| 15 | 417363-1 | Makita 417363-1 GEAR COVER |
| 16 | 213611-4 | Makita 213611-4 O RING 46 |
| 17 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 18 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 19 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 20 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 21 | 317367-2 | Makita 317367-2 BEARING BOX GD0800C |
| 22 | 240036-9 | Makita 240036-9 FAN 57 |
| 23 | 515199-3 | Makita 515199-3 ARMATURE ASS Y 230-240V |
| 24 | 681656-4 | Makita 681656-4 INSULATION WASHER |
| 25 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 26 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 28 | 421770-2 | Makita 421770-2 LABYRINTH RUBBER RING 22 |
| 29 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 30 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 31 | 413076-2 | Makita 413076-2 BAFFLE PLATE |
| 32 | 266259-1 | Makita 266259-1 TAPPING SCREW 4X60 |
| 33 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 34 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 35 | 626529-4 | Makita 626529-4 FIELD 230-240V, GD0810C |
| 38 | 852418-9 | |
| 39 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 40 | 643762-3 | Makita 643762-3 BRUSH HOLDER |
| 41 | 191974-7 | Makita 191974-7 CARBON BRUSH CB-310 |
| 42 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 43 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 44 | 632945-0 | Makita 632945-0 SWITCH BLOCK |
| 45 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 46 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 47 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 48 | 687113-0 | Makita 687113-0 COVER |
| 49 | 816803-0 | Makita 816803-0 INDICATION LABEL |
| 50 | 417185-9 | Makita 417185-9 REAR COVER GD0800C |
| 51 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 52 | 631391-4 | Makita 631391-4 Controller 240v for GD0800C GD0810C BO6040 |
| 53 | 417187-5 | Makita 417187-5 SWITCH LEVER GD0800C |
| 54 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 55 | 643761-5 | Makita 643761-5 BRUSH HOLDER |
| 56 | 417184-1 | Makita 417184-1 MOTOR HOUSING |
| 57 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 58 | 417188-3 | Makita 417188-3 SWITCH KNOB |
| 59 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
