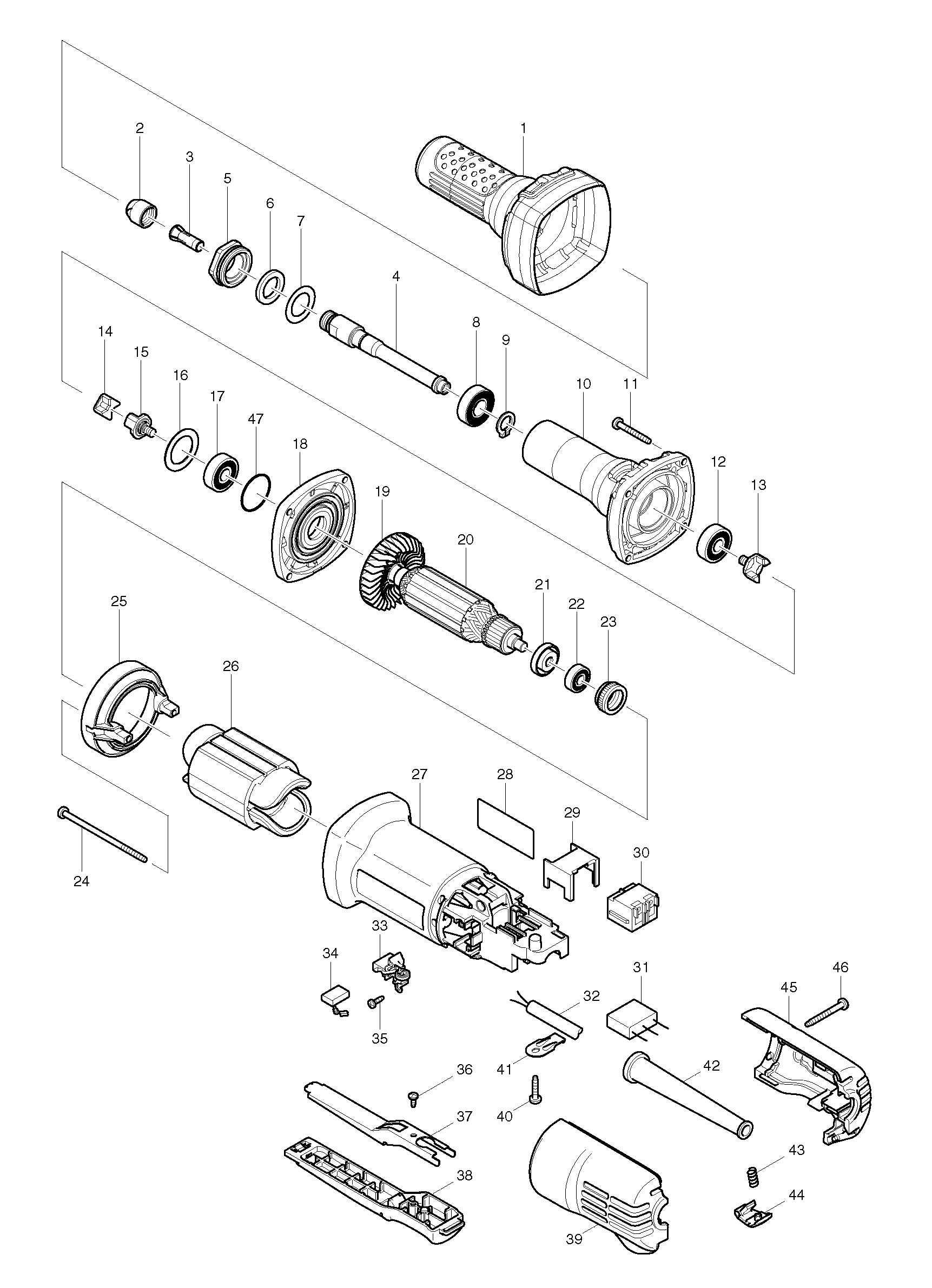

Sheet 1: Makita GD0600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421943-7 | Makita 421943-7 INSULATION COVER, GD0600 |
| 2 | 763664-8 | Makita 763664-8 Collet Nut 6, GD0600 |
| 3 | 763620-8 | Makita 763620-8 Collet Cone 6mm for GD0600 906 |
| 4 | 324638-0 | Makita 324638-0 SPINDLE, GD0600 |
| 5 | 317999-5 | Makita 317999-5 BEARING RETAINER, GD0600 |
| 6 | 443124-3 | Makita 443124-3 FELT RING 17, GD0600 |
| 7 | 267329-9 | Makita 267329-9 FLAT WASHER 18, GD0600 |
| 8 | 210106-8 | Makita 210106-8 BALL BEARING 6001LLB, UC3020A-K |
| 9 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 10 | 318000-9 | Makita 318000-9 BARREL, GD0600 |
| 11 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 12 | 210053-3 | Makita 210053-3 BALL BEARING 629LLB |
| 13 | 324639-8 | Makita 324639-8 COUPLING, GD0600 |
| 14 | 421942-9 | Makita 421942-9 SPACER, GD0600 |
| 15 | 324639-8 | Makita 324639-8 COUPLING, GD0600 |
| 16 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 17 | 210053-3 | Makita 210053-3 BALL BEARING 629LLB |
| 18 | 317821-6 | Makita 317821-6 GEAR HOUSING COVER, 9536NB |
| 20 | 515679-9 | Makita 515679-9 Armature Assembly 240V for GD0600 |
| 21 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 22 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 23 | 421868-5 | Makita 421868-5 RUBBER RING 19 WITH LABYRINTH, 9556NB |
| 24 | 266345-8 | Makita 266345-8 TAPPING SCREW 4*80, 9537NB |
| 25 | 418770-1 | Makita 418770-1 BAFFLE PLATE 9537NB, 9537NB |
| 26 | 621724-1 | Makita 621724-1 FIELD, GD0600 |
| 27 | 418838-3 | Makita 418838-3 MOTOR HOUSING, 9556PB |
| 28 | 862168-8 | Makita 862168-8 GD0600 NAME PLATEGD0600 |
| 29 | 418729-8 | Makita 418729-8 SPACER, 9537NB |
| 30 | 650560-8 | OLDN Makita 650560-8 SWITCH, 9533NB |
| 31 | 645233-6 | Makita 645233-6 CAPACITOR, 9533NB |
| 32 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 33 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 34 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 35 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 36 | 265954-0 | Makita 265954-0 TAPPING SCREW BIND PT3X8 |
| 37 | 345504-8 | Makita 345504-8 PLATE, 9556PB |
| 38 | 154584-1 | Makita 154584-1 SWITCH LEVER B COMPLETE, 9557PB |
| 39 | 183943-2 | Makita 183943-2 REAR COVER, 9556PB |
| 40 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 41 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 42 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 43 | 231252-4 | |
| 44 | 418842-2 | Makita 418842-2 LOCK ON BUTTON, 9556PB |
| 45 | 183943-2 | Makita 183943-2 REAR COVER, 9556PB |
| 46 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 47 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
