Bosch GCT 115

Bosch GCT 115 tile cutter: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCT 115: 56 positions on 1 sheet

Bosch GCT 115 parts list (1 sheet)

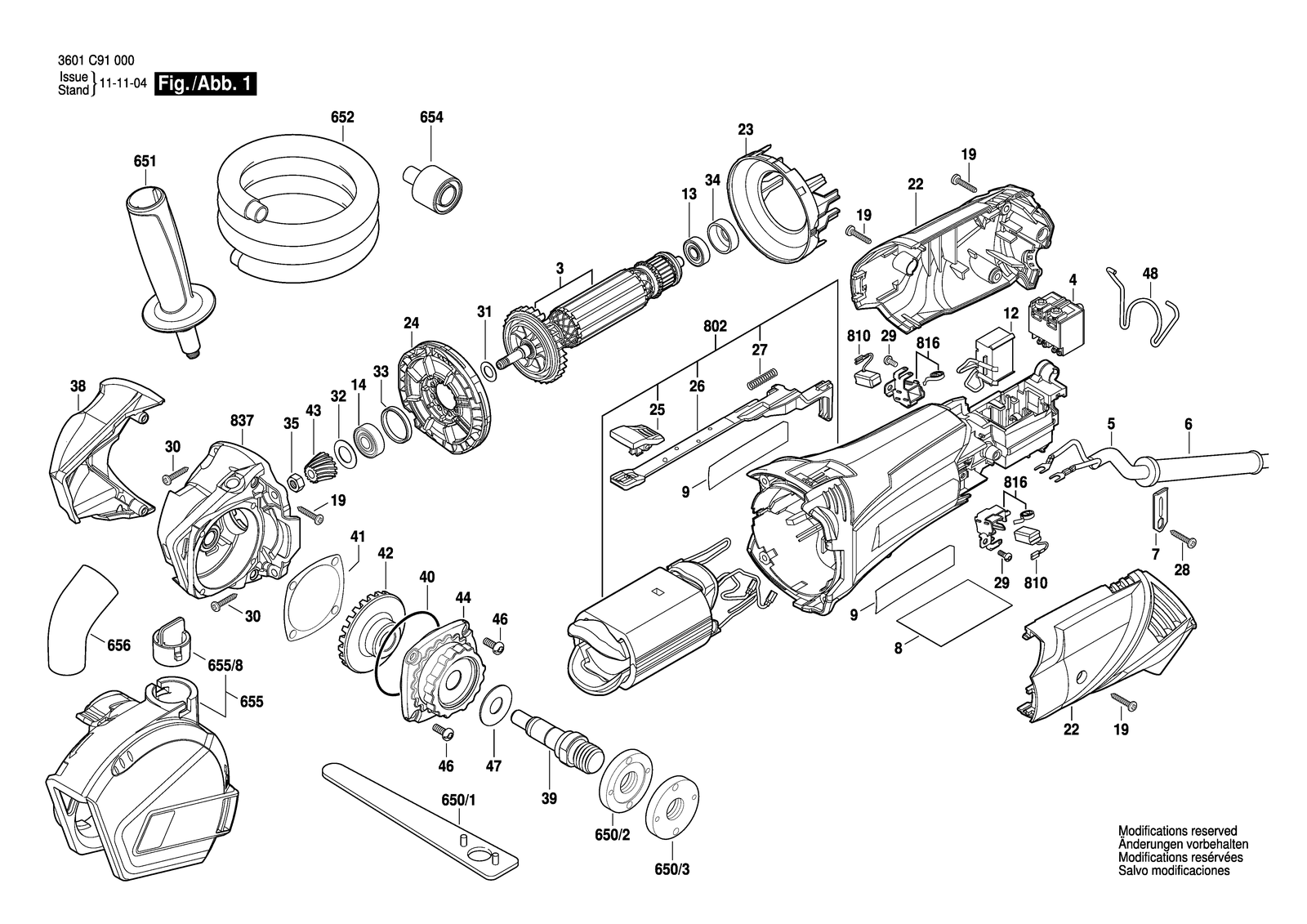

Bosch GCT 115 parts diagram, sheet 1
No.Part numberPart name
121619P02827Suppression Filter
121619P15040Suppression Filter
131619P00456Ball Bearing 7X19X6 MM
141619P00455Ball Bearing
192615294035Cross Recessed-Head Screw
222610012423Housing Set
232610008412Baffle
242610008411Air Distributor
252610008406Button
262610008422Adjusting Slide
271604611031Compression Spring
282603490021Torx Oval-Head Screw 4X12
291619P02849Torx Oval-Head Screw 3X8
32610011740Armature 110V
32610015717Armature 230V
302603490023Torx Oval-Head Screw 4X20
311619P00987Washer
321600100033Cover Disc
331600206025Rubber Ring
341600502023Intermediate Ring
352915011007Hex Nut DIN 934-M6-8-A
382610012426Housing Cover
391619P06419Grinding Spindle M 14, SW 17
41607200146Switch
41607200179On-Off Switch
401619P02820O-Ring 44,0X1,0 MM
411619P02821Shim 0,1 MM
411619P02822Shim 0,2 MM
421619P02823Crown Gear
431619P02825Bevel Gear
442610014653Bearing Flange
461603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
471619P09390Cover Disc
482610007229Clip
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
51604460339Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Rn-F
51607000385Power supply cord EU 2,6M 2 X 1,0 MM
62610014651Cord guard
650/12610008421Pin-Type Face-Wrench
650/22605703014Clamping Flange Ø22,3XØ42 MM
650/31603345043Round Nut M14
6522610013421Assembly Kit
6542610004454Adapter
6552610014664Guard
655/82610001537Plug
6562610001533Elbow
71601302017Fastening Clamp
82610012427Nameplate
82610012429Manufacturer's nameplate
82610012430Nameplate
8022610014655Motor Housing
8022610014656Motor Housing
8102610013288Carbon Brush
8161619P02845Brush Holder
8372610013289Gear Housing
92610012428Adhesive Label
