Bosch GCR 180

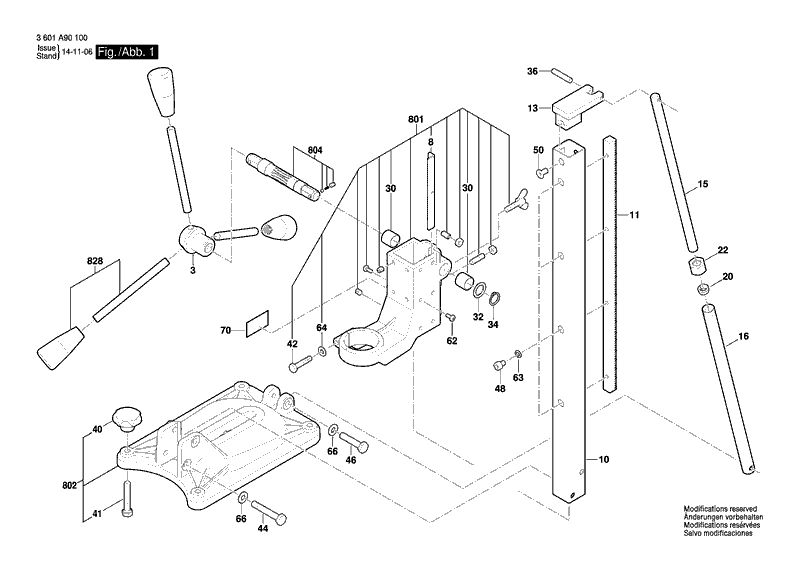

Bosch GCR 180 drill stand: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCR 180: 29 positions on 1 sheet
Bosch GCR 180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1600A0083E | Stator |
| 11 | 1600A0083F | Toothed rack |
| 13 | 1600A0083G | Head Plate |
| 15 | 1600A0083J | Strut |
| 16 | 1600A0083K | Support Tube |
| 20 | 1600A0083L | Cone Core |
| 22 | 1600A0083M | Clamping Nut |
| 3 | 1600A0083C | Hub |
| 30 | 1600460035 | Bearing Sleeve |
| 32 | 1600A0083P | Shim ring |
| 34 | 1600150027 | Spring retaining ring |
| 36 | 1600A0083R | Straight Pin |
| 40 | 1600A0083S | Star Knob |
| 41 | 160343507J | Hex Screw |
| 42 | 160343507K | Hex Screw |
| 44 | 160343507L | Hex Screw |
| 46 | 160343507M | Hex Screw |
| 48 | 1600A0083U | Hex Socket Head Cap Screw |
| 50 | 1603490A0F | Countersunk-Head Screw |
| 62 | 1600A0083V | Oval-Head Screw |
| 63 | 1600A0083W | Locking washer |
| 64 | 1600A0083X | Plain Washer |
| 66 | 1600A0083Y | Plain Washer |
| 70 | 160111A1GA | Nameplate |
| 8 | 1600A0083D | Guide Angle |
| 801 | 1600A00840 | Feeding device |
| 802 | 1600A0083Z | Stator |
| 804 | 16063332BE | Pinion |
| 828 | 1600A008WD | Feed Lever |
