Bosch GCO15-14

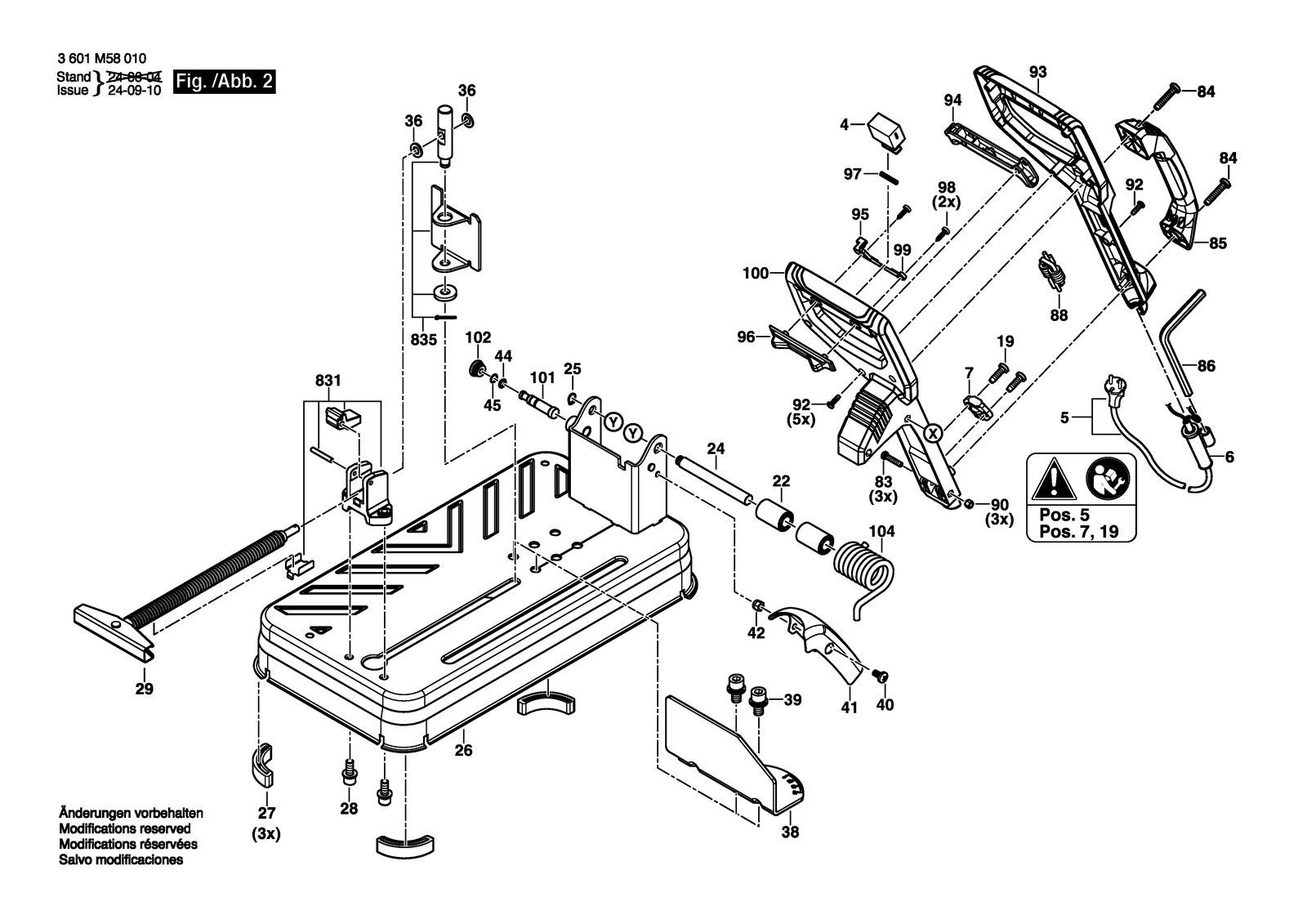

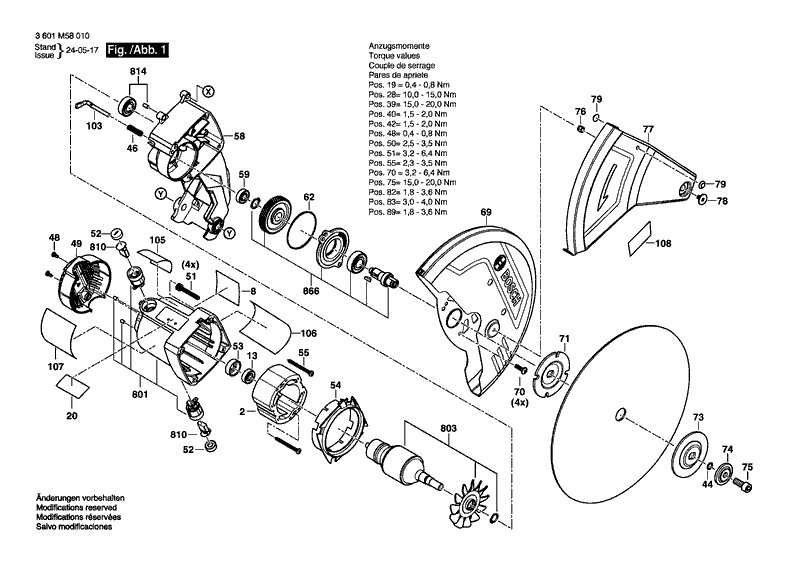

Bosch GCO15-14 cutoff saw: exploded parts diagram, 2 sheets, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCO15-14: 69 positions on 2 sheets
Bosch GCO15-14 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1619PS0681 | Shaft |
| 105 | 1619PS0685 | Warning Label |
| 106 | 1619PS0686 | Warning Label |
| 107 | 1619PS0687 | Warning Label |
| 108 | 1619PS0700 | Warning Label |
| 13 | 1619PC1834 | Ball Bearing |
| 19 | 1619PC1840 | Screw |
| 2 | 1619PC1803 | Field |
| 20 | 1619PS0698 | Label |
| 22 | 1619PC1844 | Bushing |
| 24 | 1619PC1846 | Connection Pin |
| 25 | 1619PC1847 | Retaining ring |
| 26 | 1619PC1848 | Base |
| 27 | 1619PC1849 | Rubber Cap |
| 28 | 1619PC1850 | Screw |
| 29 | 1619PC1851 | Clamp Screw |
| 36 | 1619PC1858 | Washer |
| 37 | 1619PC1859 | Split Pin |
| 38 | 1619PC1860 | Stop Bracket |
| 39 | 1619PC1861 | Screw |
| 4 | 1619PC1807 | Switch |
| 40 | 1619PC1862 | Screw |
| 41 | 1619PC1863 | Sheet Metal Guard |
| 42 | 1619PC1864 | Nut |
| 44 | 1619PC1866 | O-Ring |
| 45 | 1619PC1867 | Retaining ring |
| 46 | 1619PC1868 | Spring |
| 48 | 1619PC1870 | Screw |
| 49 | 1619PC1871 | Housing Cover |
| 5 | 1619PS0676 | Power supply cord |
| 51 | 1619PC1873 | Screw |
| 52 | 1619PC1874 | Cap |
| 53 | 1619PC1875 | Rubber Bushing |
| 54 | 1619PC1876 | Air Distributor |
| 55 | 1619PC1877 | Screw |
| 58 | 1619PC1880 | Arm |
| 59 | 1619PC1881 | Ball Bearing |
| 6 | 1619PC1817 | Grommet |
| 62 | 1619PC1884 | O-Ring |
| 69 | 1619PC1891 | Upper guard |
| 7 | 1619PB9038 | Cable Clip |
| 70 | 1619PC1892 | Screw |
| 71 | 1619PC1893 | Clamping Flange |
| 73 | 1619PC1895 | Clamping Flange |
| 74 | 1619PC1896 | Washer |
| 75 | 1619PC1897 | Screw |
| 76 | 1619PC1898 | Nut |
| 77 | 1619PC1899 | Lower guard |
| 78 | 1619PC1900 | Bolt |
| 79 | 1619PC1901 | Rubber Backing Pad |
| 8 | 1619PS0677 | Nameplate |
| 801 | 1619PC1928 | Housing Assembly |
| 803 | 1619PC1926 | Armature assembly |
| 810 | 1619PC1589 | Carbon-Brush Set |
| 814 | 1619PC1929 | Ball Bearing |
| 83 | 1619PC1905 | Screw |
| 831 | 1619PC1924 | Clamping Support |
| 835 | 1619PS1790 | Connecting Rod |
| 84 | 1619PC1906 | Screw |
| 85 | 1619PC1907 | Carrying Handle |
| 86 | 1619PC1908 | Clamping wrench |
| 866 | 1619PC1594 | Gear Shaft |
| 88 | 1619PB9165 | Induction Coil |
| 90 | 1619PC1912 | Nut |
| 92 | 16034300DH | Screw |
| 93 | 1619PS0678 | Switch Handle |
| 96 | 1619PB6228 | Interlock |
| 98 | 1619PB6129 | Countersunk-Head Screw |
| 99 | 1619PB6243 | Linkage |
