Bosch GCO 200

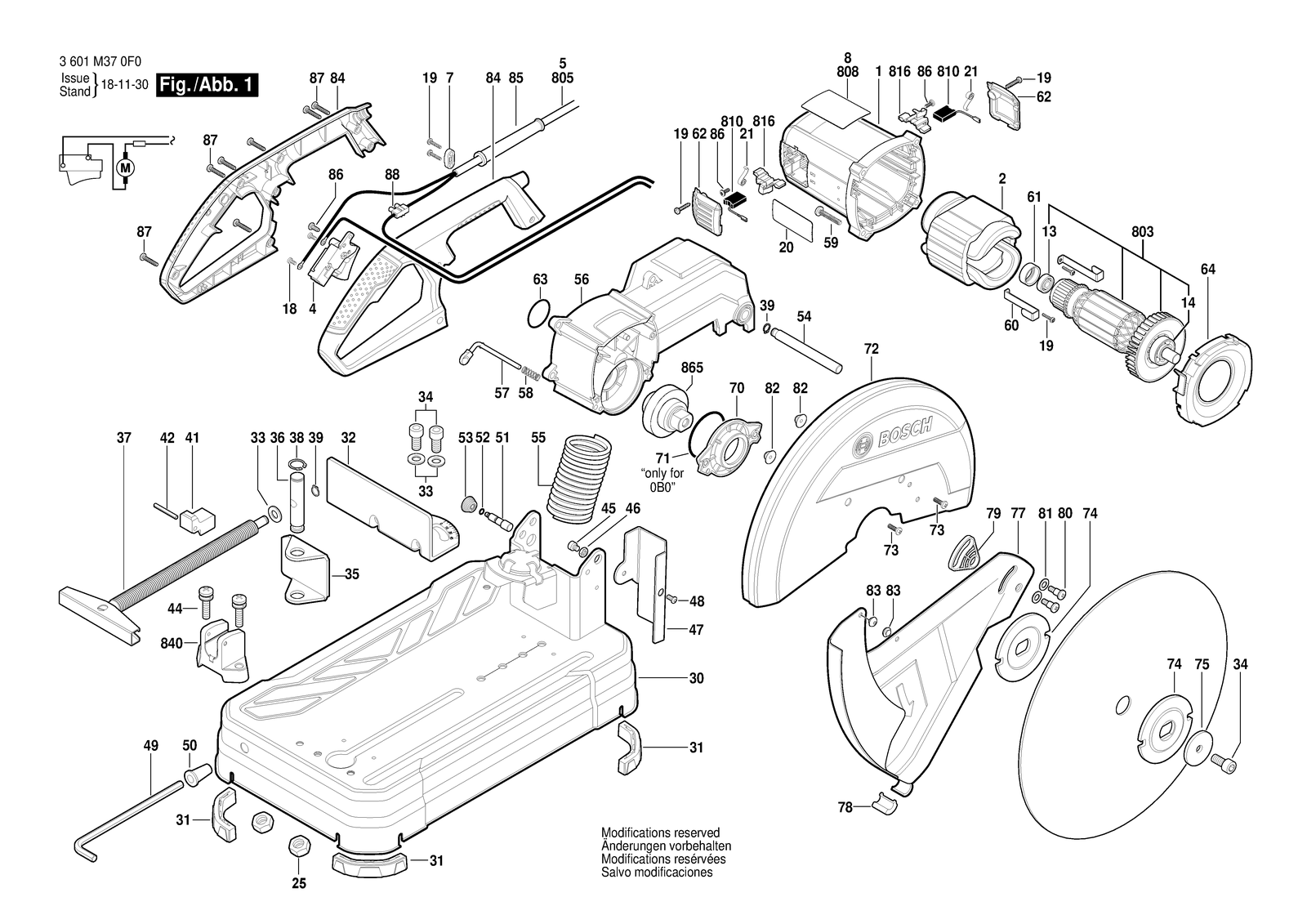

Bosch GCO 200 cutoff saw: exploded parts diagram, 1 sheet, 259 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GCO 200: 259 positions on 1 sheet
Bosch GCO 200 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609B03601 | Motor Housing |
| 1 | 1609B03601 | Motor Housing |
| 1 | 1609B03601 | Motor Housing |
| 13 | 1619P03850 | Bearing 608-2RS |
| 13 | 1619P03850 | Bearing 608-2RS |
| 13 | 1619P03850 | Bearing 608-2RS |
| 14 | 1609B00057 | Bearing |
| 14 | 1609B00057 | Bearing |
| 14 | 1609B00057 | Bearing |
| 18 | 1609B03644 | Screw |
| 18 | 1609B03644 | Screw |
| 18 | 1609B03644 | Screw |
| 19 | 1609B02357 | Screw Eco-Syn ST 3,5X16 |
| 19 | 1609B02357 | Screw Eco-Syn ST 3,5X16 |
| 19 | 1609B02357 | Screw Eco-Syn ST 3,5X16 |
| 2 | 1609B00135 | Field 220-240V |
| 2 | 1609B00135 | Field 220-240V |
| 2 | 1609B00155 | Field |
| 2 | 1609B00135 | Field 220-240V |
| 2 | 1609B00155 | Field |
| 20 | 1609B03645 | Warning Label |
| 20 | 1609B03645 | Warning Label |
| 20 | 1609B03645 | Warning Label |
| 21 | 1604652019 | Spiral Spring |
| 21 | 1604652019 | Spiral Spring |
| 21 | 1604652019 | Spiral Spring |
| 25 | 1619P03831 | Hex Nut DIN 934-M8-8 |
| 25 | 1609B01655 | Nut |
| 25 | 1619P03831 | Hex Nut DIN 934-M8-8 |
| 25 | 1609B01655 | Nut |
| 25 | 1619P03831 | Hex Nut DIN 934-M8-8 |
| 30 | 1609B02358 | Base |
| 30 | 1609B02362 | Base |
| 30 | 1609B02362 | Base |
| 30 | 1609B01890 | Base |
| 30 | 1609B02362 | Base |
| 31 | 1609B03594 | Supporting foot |
| 31 | 1609B03594 | Supporting foot |
| 31 | 1609B03594 | Supporting foot |
| 32 | 1609B02474 | Stop Bracket |
| 32 | 1609B03593 | Stop Bracket |
| 32 | 1609B02423 | Stop Bracket |
| 32 | 1609B02423 | Stop Bracket |
| 32 | 1609B02474 | Stop Bracket |
| 33 | 1609BP7045 | Plain Washer |
| 33 | 1609BP7045 | Plain Washer |
| 33 | 1609BP7045 | Plain Washer |
| 34 | 1609B03630 | Screw |
| 34 | 1609B03630 | Screw |
| 34 | 1609B03630 | Screw |
| 35 | 1609B03609 | Clamp Bracket |
| 35 | 1609B03674 | Clamp Bracket |
| 35 | 1609B03609 | Clamp Bracket |
| 35 | 1609B03674 | Clamp Bracket |
| 36 | 1609B03597 | Connecting Rod |
| 36 | 1609B03675 | Connecting Rod |
| 36 | 1609B03597 | Connecting Rod |
| 36 | 1609B03675 | Connecting Rod |
| 37 | 1609B03598 | Clamp Screw |
| 37 | 1609B03598 | Clamp Screw |
| 37 | 1609B03598 | Clamp Screw |
| 38 | 1609B03616 | Clip |
| 38 | 1619P03755 | Spring retaining ring DIN 471-18 |
| 38 | 1609B03616 | Clip |
| 38 | 1619P03755 | Spring retaining ring DIN 471-18 |
| 39 | 1609B03628 | Clip |
| 39 | 1609B03628 | Clip |
| 39 | 1609B03628 | Clip |
| 4 | 1609B03606 | Switch |
| 4 | 1609B02146 | Switch |
| 4 | 1609B02146 | Switch |
| 4 | 1609B03606 | Switch |
| 41 | 1609B03576 | Clamping Block |
| 41 | 1609B03576 | Clamping Block |
| 41 | 1609B03576 | Clamping Block |
| 42 | 1619P03762 | Spring Pin ISO 13337-4X35 |
| 42 | 1619P03762 | Spring Pin ISO 13337-4X35 |
| 42 | 1619P03762 | Spring Pin ISO 13337-4X35 |
| 44 | 1609B03629 | Screw and washer assembly |
| 44 | 1609B03629 | Screw and washer assembly |
| 44 | 1609B03629 | Screw and washer assembly |
| 45 | 1609B03686 | Screw |
| 45 | 1609B03686 | Screw |
| 45 | 1609B03686 | Screw |
| 46 | 1609B01654 | Nut |
| 46 | 1609B01654 | Nut |
| 46 | 1609B01654 | Nut |
| 47 | 1609B02494 | Protective Guard |
| 47 | 1609B03634 | Protective Guard |
| 47 | 1609B02478 | Protective Guard |
| 47 | 1609B01884 | Protective Guard |
| 47 | 1609B02478 | Protective Guard |
| 47 | 1609B02494 | Protective Guard |
| 48 | 1609B06426 | Thread-Forming Screw |
| 48 | 1609B06426 | Thread-Forming Screw |
| 48 | 1609B06426 | Thread-Forming Screw |
| 49 | 1609B03622 | Hexagon Socket Wrench |
| 49 | 1609B03622 | Hexagon Socket Wrench |
| 49 | 1609B03622 | Hexagon Socket Wrench |
| 5 | 1609B02387 | Power supply cord |
| 5 | 1609B03595 | Power supply cord 2,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1609B03680 | Power supply cord 2,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1609B03683 | Power supply cord 2,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1609B03688 | Power supply cord |
| 5 | 1609B01883 | Power supply cord |
| 5 | 1609B02157 | Power supply cord Brasilien 220V |
| 5 | 1609B02158 | Power supply cord Brasilien 127V |
| 5 | 1609B02159 | Power supply cord Argentinien |
| 5 | 1609B02161 | Power supply cord LAM 127V |
| 5 | 1609B06722 | Power supply cord |
| 5 | 1609B06580 | Power supply cord |
| 5 | 1609B06581 | Power supply cord |
| 5 | 1609B06722 | Power supply cord |
| 5 | 1609B06780 | Power supply cord |
| 50 | 1609B03617 | Key Holder |
| 50 | 1609B03617 | Key Holder |
| 50 | 1609B03617 | Key Holder |
| 51 | 1609B03623 | Shaft |
| 51 | 1609B03623 | Shaft |
| 51 | 1609B03623 | Shaft |
| 52 | 1619P03810 | O-Ring 4,5X1,8 |
| 52 | 1619P03810 | O-Ring 4,5X1,8 |
| 52 | 1619P03810 | O-Ring 4,5X1,8 |
| 53 | 1609B03624 | Cap |
| 53 | 1609B03624 | Cap |
| 53 | 1609B03624 | Cap |
| 54 | 1609B03618 | Pivot Shaft |
| 54 | 1609B03618 | Pivot Shaft |
| 54 | 1609B03618 | Pivot Shaft |
| 55 | 1609B03619 | Contact strap |
| 55 | 1609B03619 | Contact strap |
| 55 | 1609B03619 | Contact strap |
| 56 | 1609B03591 | Arm |
| 56 | 1609B03591 | Arm |
| 56 | 1609B03591 | Arm |
| 57 | 1609B03610 | Locking Pin |
| 57 | 1609B03610 | Locking Pin |
| 57 | 1609B03610 | Locking Pin |
| 58 | 1619P03864 | Compression Spring |
| 58 | 1619P03864 | Compression Spring |
| 58 | 1619P03864 | Compression Spring |
| 59 | 1619P03835 | Thread-forming tap. Screw DIN 7500 C-M6X35 |
| 59 | 1619P03835 | Thread-forming tap. Screw DIN 7500 C-M6X35 |
| 59 | 1619P03835 | Thread-forming tap. Screw DIN 7500 C-M6X35 |
| 60 | 1619P03823 | Pickup Clip |
| 60 | 1619P03823 | Pickup Clip |
| 60 | 1619P03823 | Pickup Clip |
| 61 | 1600206030 | Rubber Ring |
| 61 | 1600206030 | Rubber Ring |
| 61 | 1600206030 | Rubber Ring |
| 62 | 1609B03627 | Brush-Cover |
| 62 | 1609B03627 | Brush-Cover |
| 62 | 1609B03627 | Brush-Cover |
| 63 | 1609B00068 | O-Ring |
| 63 | 1609B00068 | O-Ring |
| 63 | 1609B00068 | O-Ring |
| 64 | 1609B03604 | Air-Deflector Ring |
| 64 | 1609B03604 | Air-Deflector Ring |
| 64 | 1609B03604 | Air-Deflector Ring |
| 7 | 1609B02153 | Cable Clip |
| 7 | 1609B02153 | Cable Clip |
| 7 | 1609B02153 | Cable Clip |
| 7 | 1619P03808 | Cable Clip |
| 70 | 1609B03612 | Gear Cover |
| 70 | 1609B03612 | Gear Cover |
| 70 | 1609B03612 | Gear Cover |
| 72 | 1609B00489 | Safety Guard |
| 72 | 1609B06429 | Safety Guard |
| 72 | 1609B06429 | Safety Guard |
| 72 | 1609B00489 | Safety Guard |
| 72 | 1609B06429 | Safety Guard |
| 73 | 1609B01483 | Screw |
| 73 | 1609B01483 | Screw |
| 73 | 1609B01483 | Screw |
| 74 | 1609B03592 | Flange |
| 74 | 1609B03592 | Flange |
| 74 | 1609B03592 | Flange |
| 75 | 1609B03625 | Plain Washer |
| 75 | 1609B03625 | Plain Washer |
| 75 | 1609B03625 | Plain Washer |
| 77 | 1609B00494 | Flap Guard |
| 77 | 1609B02497 | Flap Guard |
| 77 | 1609B03608 | Flap Guard |
| 77 | 1609B02497 | Flap Guard |
| 77 | 1609B00494 | Flap Guard |
| 77 | 1609B02497 | Flap Guard |
| 78 | 1609B03631 | Cover |
| 78 | 1609B03631 | Cover |
| 78 | 1609B03631 | Cover |
| 79 | 1609B00495 | Supporting Plate |
| 79 | 1609B02395 | Supporting Plate |
| 79 | 1609B03642 | Supporting Plate |
| 79 | 1609B02395 | Supporting Plate |
| 79 | 1609B00495 | Supporting Plate |
| 79 | 1609B02395 | Supporting Plate |
| 8 | 1609BN0095 | Nameplate |
| 8 | 1609BN0096 | Nameplate |
| 8 | 1609BN0097 | Nameplate |
| 8 | 1609BN0248 | Nameplate |
| 8 | 1609BN0249 | Nameplate |
| 8 | 1609BN0250 | Nameplate |
| 8 | 1609BN0343 | Nameplate |
| 80 | 1609B03641 | Shoulder Screw |
| 80 | 1609B03641 | Shoulder Screw |
| 80 | 1609B03641 | Shoulder Screw |
| 803 | 1609B03639 | Armature assembly 220-240V |
| 803 | 1609B02504 | Armature assembly |
| 803 | 1609B03639 | Armature assembly 220-240V |
| 803 | 1609B02504 | Armature assembly |
| 803 | 1609B03639 | Armature assembly 220-240V |
| 805 | 1609B06544 | Power supply cord |
| 808 | 1609BN0241 | Nameplate |
| 808 | 1609BN0243 | Nameplate |
| 808 | 1609BN0346 | Nameplate |
| 808 | 1609BN0228 | Nameplate |
| 808 | 1609BN0232 | Nameplate |
| 808 | 1609BN0245 | Nameplate |
| 808 | 1609BN0247 | Nameplate |
| 808 | 1609BN0363 | Nameplate |
| 808 | 1609BN0406 | Nameplate |
| 808 | 1609BN0406 | Nameplate |
| 81 | 1609B03513 | Washer |
| 81 | 1609B03513 | Washer |
| 81 | 1609B03513 | Washer |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 82 | 1609B06545 | Nut |
| 82 | 1609B06545 | Nut |
| 82 | 1609B06545 | Nut |
| 83 | 1619P03871 | Rubber Gasket |
| 83 | 1619P03871 | Rubber Gasket |
| 83 | 1619P03871 | Rubber Gasket |
| 84 | 1609B01785 | Handle |
| 84 | 1609B01785 | Handle |
| 84 | 1609B01785 | Handle |
| 840 | 1609B03626 | Clamping Holder |
| 840 | 1609B03626 | Clamping Holder |
| 840 | 1609B03626 | Clamping Holder |
| 85 | 1609B03615 | Grommet |
| 85 | 1609B03615 | Grommet |
| 85 | 1609B03615 | Grommet |
| 86 | 1609B02356 | Screw |
| 86 | 1609B02356 | Screw |
| 86 | 1609B02356 | Screw |
| 865 | 1609B03640 | Set Of Gears |
| 865 | 1609B03640 | Set Of Gears |
| 865 | 1609B03640 | Set Of Gears |
| 87 | 1609B02355 | Screw |
| 87 | 1609B02355 | Screw |
| 87 | 1609B02355 | Screw |
| 88 | 1609B06427 | Connection Block |
| 88 | 1609B01535 | Terminal Block |
| 88 | 1609B06427 | Connection Block |
| 88 | 1609B01535 | Terminal Block |
| 88 | 1609B06427 | Connection Block |
